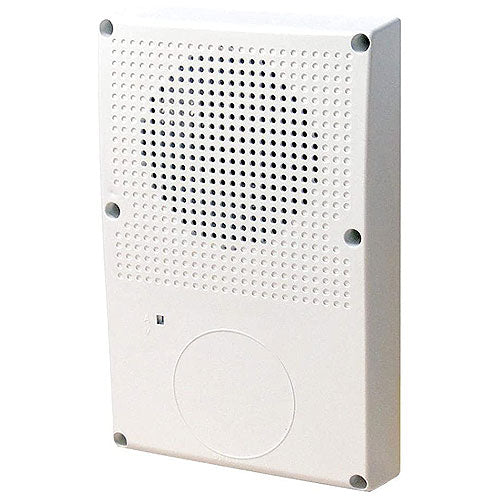

Kidde Commercial WG4WN-S | Genesis WG4 Series Speaker, No Marking, White

Genesis WG4 Series speakers and speaker-strobe appliances are among the most versatile emergency appliances of their kind. Rated for indoor or outdoor use, they are suitable for a wide range of wet and harsh environments with a listed operating temperature range of as low as -31?F to as high as 151?F (-35?C to 66?C).

Field-configurable light and sound output settings add to their on- site flexibility, while optional FIRE markings make them ideal for fire alarm applications.

These appliances are suitable for indoor and outdoor applications, and are ideal for challenging conditions such as parking garages and process areas. They are listed for mounting on the ceiling or the wall, and thanks to an ingenious full backplane sealing gasket, can be installed to recessed (in-the-pour/block) electrical boxes. WG4 signals also mount to suitable surface boxes served by race- ways. Optional color-matched trim skirts provide a clean, finished appearance. All appliance wiring is accomplished room-side for easy installation.

WG4 Series appliances feature highly intelligible and efficient my- lar-cone loudspeakers. These are dual-voltage (25.2V or 70.7V), and have field-selectable output taps ranging from 80.8 dBA to 90.0 dBA. The multi-Candela strobes are available with clear lens- es and in two output categories - standard and high-output. They are precision-timed to meet UL 1971 synchronization standards, and field-configurable for one of four Candela intensities. Wattage and Candela settings are viewable even after installation through an innovative sealed viewport display. Outdoor or indoor rated Wall or ceiling mount Field selectable wattge (.25 - 2W) and voltage (25Vrms, 70Vrms) Standard Candela output models (15 - 87cd), field selectable High Candela output models (102 - 161cd), field selectable Room side wiring accepts 18 to 12 AWG (0.75 to 2.5 mm2)
