Klein Tools 162520-114 | Haven's Grip Wire Pulling Tool, 1-1/4-...
Description
Description

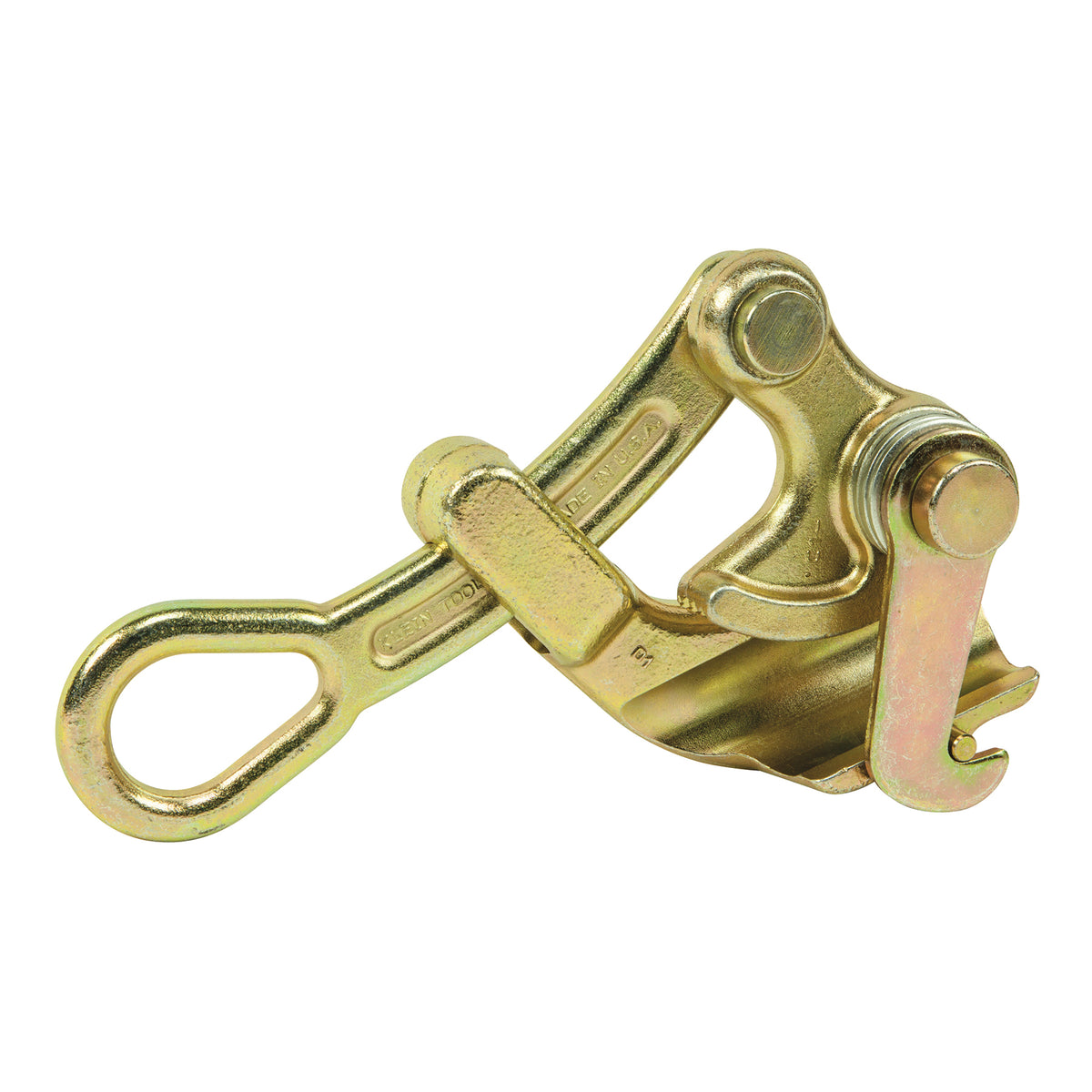

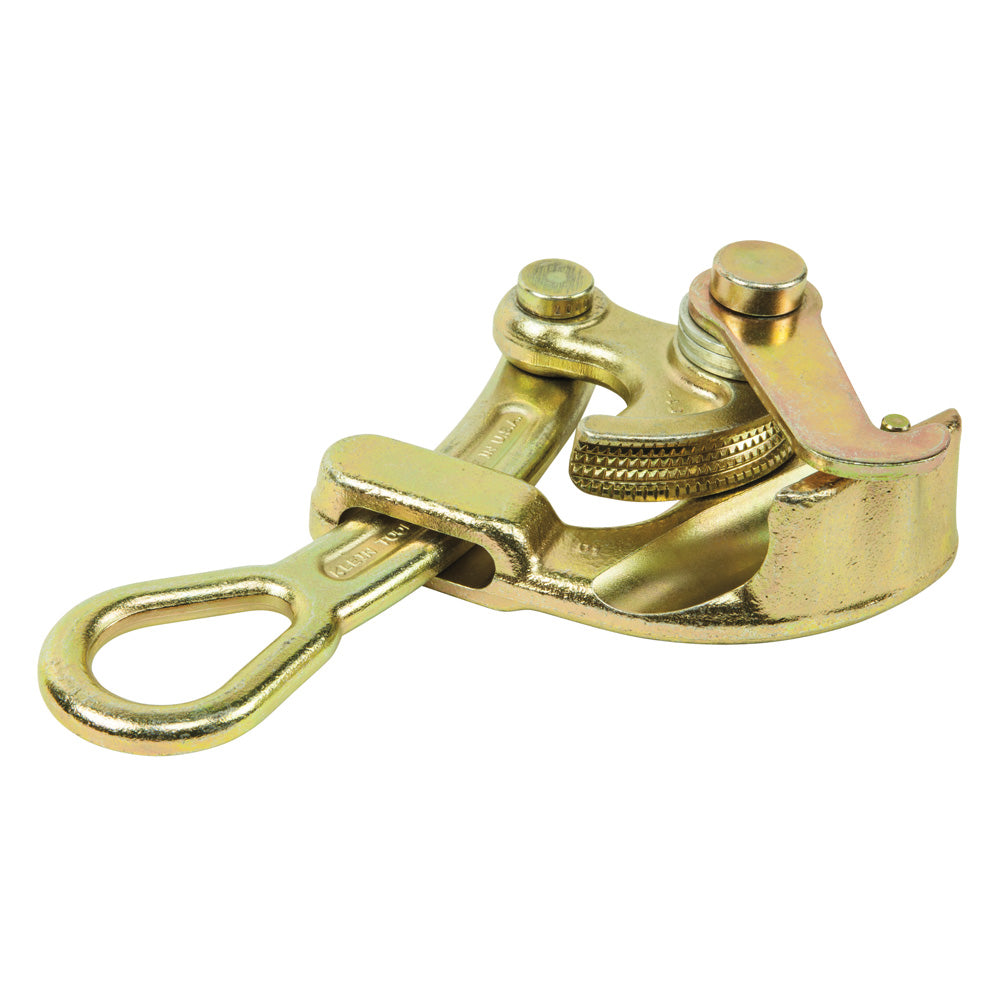

The Klein Tools 1625 Series Wire Rope Haven's Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Specifications
Specifications
Klein Tools - 162520-114 - Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
Klein Tools - 162520-114 - Product Categories
- Wire Pulling Grips
- Haven's Grips
Klein Tools - 162520-114 - Specifications
| Type: | Haven's Grip |
|---|---|
| Application: | Wire Pulling |
| Overall Length: | 6.86'' (16.9 cm) |
| Overall Height: | 2.20'' (5.6 cm) |
| Overall Width: | 4.05'' (10.3 cm) |
| Cable Type: | Wire Rope |
| Cable Diameter: | 0.75'' to 1.25'' (1.90 to 3.17 cm) |
| Hot Latch: | N |
| Swing Latch: | Y |
| Spring: | N |
| Locking Handle: | N |
| Jaw Type: | Aggressive |
| Maximum Safe Load: | 2000 lb (907 kg) |
| Weight: | 3.7 lb (1.7 kg) |
| UPC: | 92644471988 |
