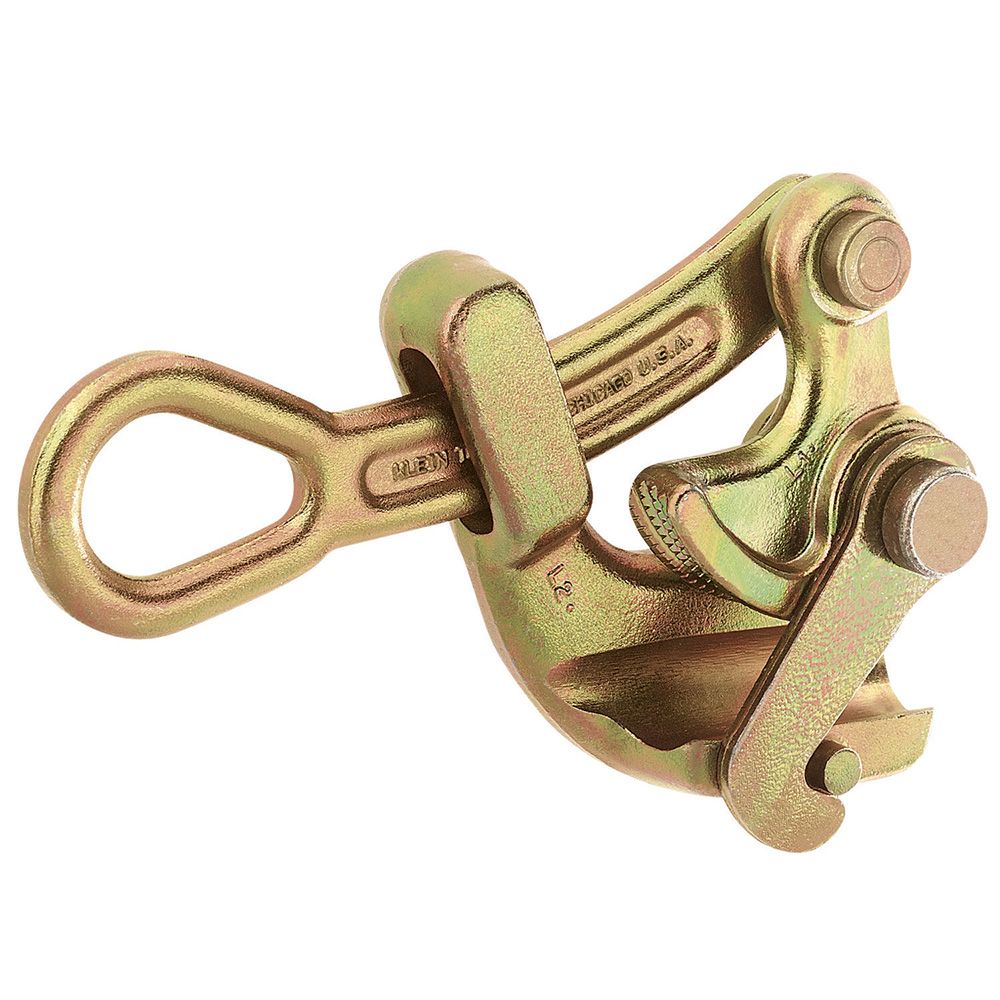

Klein Tools 162520-7/8 | Haven's Grip for Wire Rope 0.88-Inch
Description
Description
The Klein Tools 1625 Series Wire Rope Haven's Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein Tools grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Klein Tools - 162520-7/8 - Features
- Designed for use when light, compact grip is desired and where conductor damage is not a factor
- Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range with max safe load of 8000 lb (3629 kg)
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
- Swing latch helps hold cable in the jaw
- Made in USA
Specifications
Specifications
Klein Tools - 162520-7/8 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Haven's Grips
Klein Tools - 162520-7/8 - Related Products
- 1625-20 - Haven's Grip for Wire Rope 0.75-Inch
- 1604-20 - Haven's Cable Grip 0.5-Inch Capacity
- 162520-1 - Haven's Grip for Wire Rope 1-Inch
- 1604-20L - Haven's Grip with Swing Latch
- 162520-114 - Haven's Grip Wire Pulling Tool, 1-1/4-Inch
Klein Tools - 162520-7/8 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 162520-7/8 - Specifications
| Type | Haven's Grip |
|---|---|
| Cable Type | Wire Rope |
| Cable Diameter | 0.38'' to 0.88'' (9.65 to 22.35 mm) |
| Hot Latch | N |
| Swing Latch | Y |
| Spring | N |
| Locking Handle | N |
| Jaw Type | Aggressive |
| Maximum Safe Load | 8000 lb (3629 kg) |
| Weight | 3.4 lb (1.5 kg) |
| UPC | 92644472220 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 162520-7/8 - Videos
| Klein Tools 162520-7/8 Video | Click to View |
|---|
