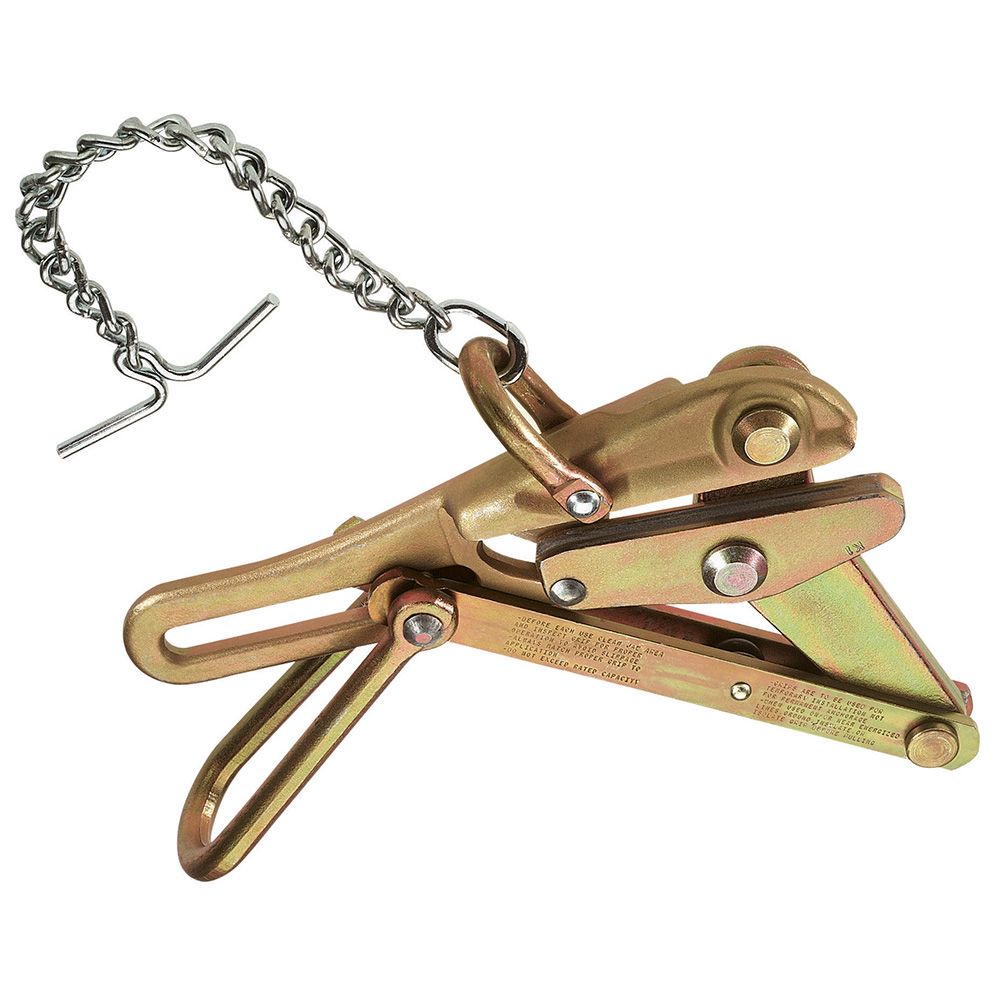

Klein Tools 1628-16AT | Chicago Grip Bell-System Type H Grip
Regular price
$1,179.14
Unit price
Brand: Klein Tools
|
SKU:
10015461
Regular price
$1,179.14
Unit price
Description
Description
Klein Tools 1628-16AT | Chicago Grip Bell-System Type H Grip
The Klein Tools 1628-16AT Chicago Grip is identical to a Bell-System type -InchH-Inch Strand Puller. It is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein Tools grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Klein Tools - 1628-16AT - Features
- Identical to Bell-System type ''H'' strand puller, with max safe load of 15,000-Pound (6803 kg)
- Equipped with chain, toggle and shackle
- Outside diameter of support wire includes thickness of polyethylene coating
- For support wire 0.134 and larger, refer to 1659 series
- Made in USA
Specifications
Specifications
Klein Tools - 1628-16AT - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Bell-System Type Grips
Klein Tools - 1628-16AT - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1628-16AT - Specifications
| Type | Chicago Grip |
|---|---|
| Special Features | ''H'' Strand Puller -- Equipped with a Chain, Toggle and Shackle |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.31'' to 0.62'' (7.87 to 15.75 mm) |
| Hot Latch | N |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Double V |
| Jaw Length | 7.25'' (18.4 cm) |
| Maximum Safe Load | 15,000 lb (6803 kg) |
| Weight | 15.8 lb (7.17 kg) |
| UPC | 92644470271 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 1628-16AT - Videos
| Klein Tools 1628-16AT Video | Click to View |
|---|
