Klein Tools 1628-18 | Chicago Grip, 0.75 to 1-Inch High Strength Ca...
Description
Description

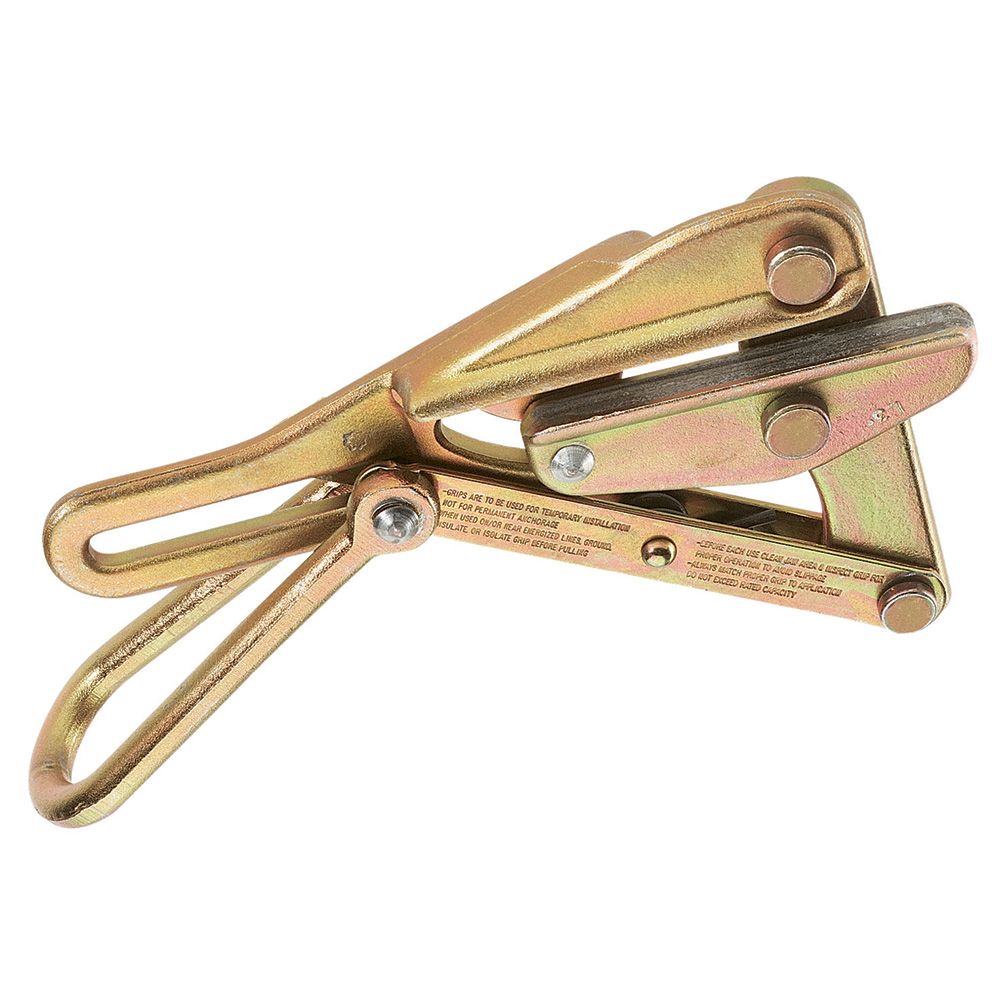

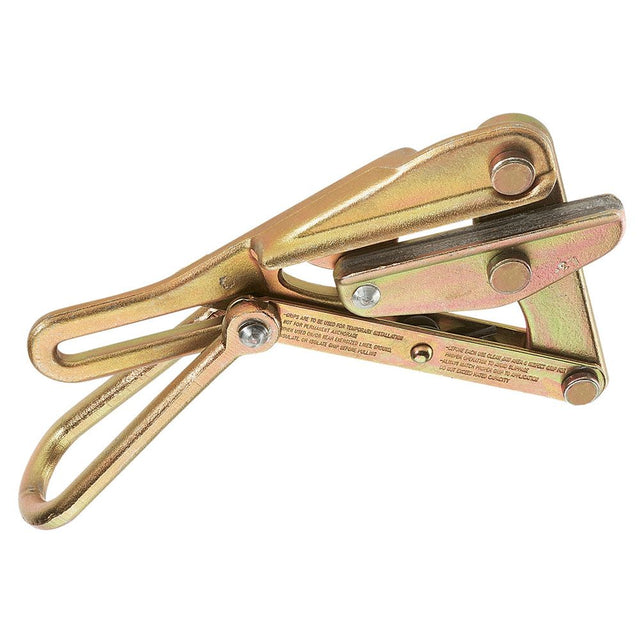

The Klein Tools 1628-18 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein Tools grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Klein Tools - 1628-18 - Features
- Used for Aircraft, EHS, Messenger, Guy Strand cables
- Designed for 0.75 to 1.0-Inch (19.05 to 25.4 mm) diameter cable sizes with max load of 15,000-Pound (6803 kg)
- For larger conductors, see our grips with round inside-jaw contour
- Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Specifications
Specifications
Klein Tools - 1628-18 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Extra-High-Strength Cables
Klein Tools - 1628-18 - Related Products
- 1613-40 - Grip for High Strength Cables 0.37-Inch
- 1628-16 - Grip for High Strength Cables 0.62-Inch
- 1628-17 - Grip for High Strength Cables 0.5 to 0.75-Inch
- 1684-5 - Grip for High Strength Cables 0.55-Inch
- 1684-5F - Grip for High Strength Cable
Klein Tools - 1628-18 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1628-18 - Specifications
| Type | Chicago Grip |
|---|---|
| Application | Extra-High-Strength Cables, Messenger, Guy Strand |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.75'' to 1'' (19.05 to 25.4 mm) |
| Hot Latch | N |
| Swing Latch | N |
| Spring | N |
| Locking Handle | Y |
| Jaw Type | Double V |
| Jaw Length | 7.25'' (18.4 cm) |
| Maximum Safe Load | 15,000 lb (6803 kg) |
| Weight | 14.1 lb (6.4 kg) |
| UPC | 92644470356 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 1628-18 - Videos
| Klein Tools 1628-18 Video | Click to View |
|---|
