Klein Tools 1628-50 | Grip for Large Diameter Conductors
Regular price
$1,923.46
Unit price
Brand: Klein Tools
|
SKU:
813704
Regular price
$1,923.46
Unit price
Description
Description

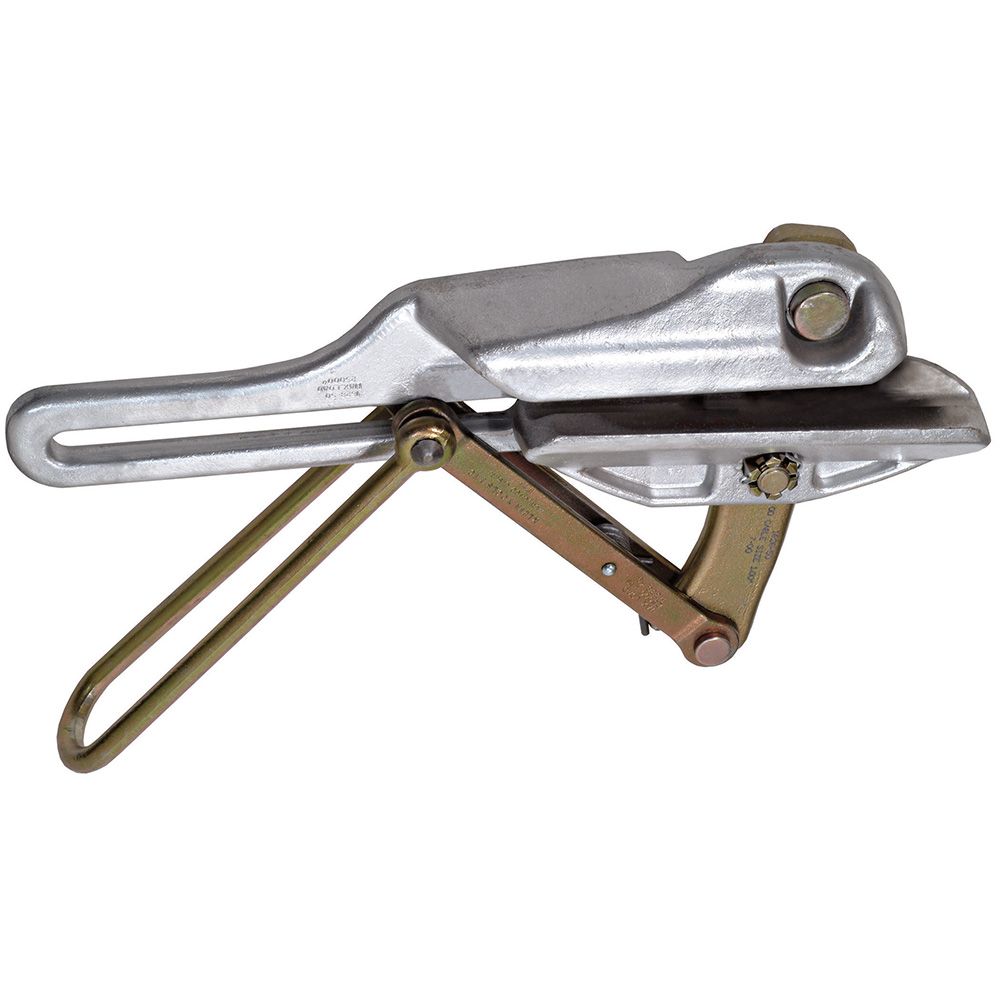

Klein Tools 1628-50 | Grip for Large Diameter Conductors
This Chicago Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code.Please allow 30 days for delivery.
Klein Tools - 1628-50 - Features
- Removable jaw allows for installation of cable
- Round jaws are provide maximum contact with the cable minimizing deformation
- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
- These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.
- Jaw must be removed to insert cable
- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
Specifications
Specifications
Klein Tools - 1628-50 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Large Diameter Conductors
Klein Tools - 1628-50 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1628-50 - Specifications
| Type | Chicago Grip |
|---|---|
| Special Features | These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable |
| Cable Type | ACSR, ACSS, ACSS-TW, AAC |
| Cable Diameter | 0.95'' to 1.89'' (24.13 to 48 mm) |
| Hot Latch | N |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Length | 10.75'' (27.3 cm) |
| Maximum Safe Load | 25,000 lb (11,340 kg) |
| Weight | 29.03 lb (13.2 kg) |
| UPC | 92644470660 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
