Klein Tools 16477 | Wide Range Distribution Grip
Regular price
$288.58
Unit price
Brand: Klein Tools
|
SKU:
16477
Regular price
$288.58
Unit price
Description
Description

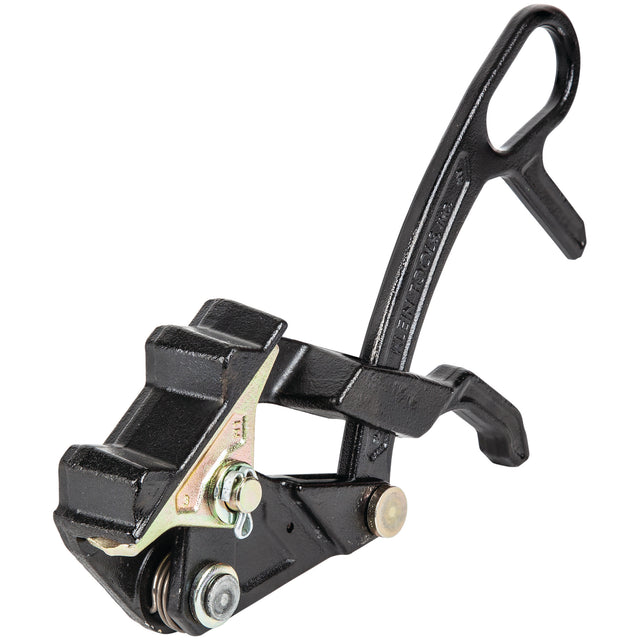

Klein Tools 16477 | Wide Range Distribution Grip
Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).
Specifications
Specifications
Klein Tools - 16477 - Warnings
- Grips are to be used for temporary installation, not for permanent anchorage.
- When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
Klein Tools - 16477 - Product Categories
- Wire Pulling Grips
- Parallel Jaw Grips
Klein Tools - 16477 - Specifications
| Type: | Parallel Jaw Grip |
|---|---|
| Application: | Wire Pulling |
| Special Features: | One-Handed Grip |
| Overall Length: | 10'' (25 cm) |
| Overall Height: | 1.25'' (3.2 cm) |
| Overall Width: | 6.5'' (16.5 cm) |
| Material: | Steel |
| Cable Type: | Bare Copper, Aluminum, ACSR |
| Cable Diameter: | 0.162 to 0.883'' (4.11 to 22.42 mm) |
| Hot Latch: | N |
| Swing Latch: | N |
| Spring: | Y |
| Locking Handle: | N |
| Jaw Type: | Round |
| Jaw Length: | 3.31'' (8.4 cm) |
| Maximum Safe Load: | 5000 lb (2268 kg) |
| Weight: | 2.9 lb (1.3 kg) |
| UPC: | 92644470721 |
