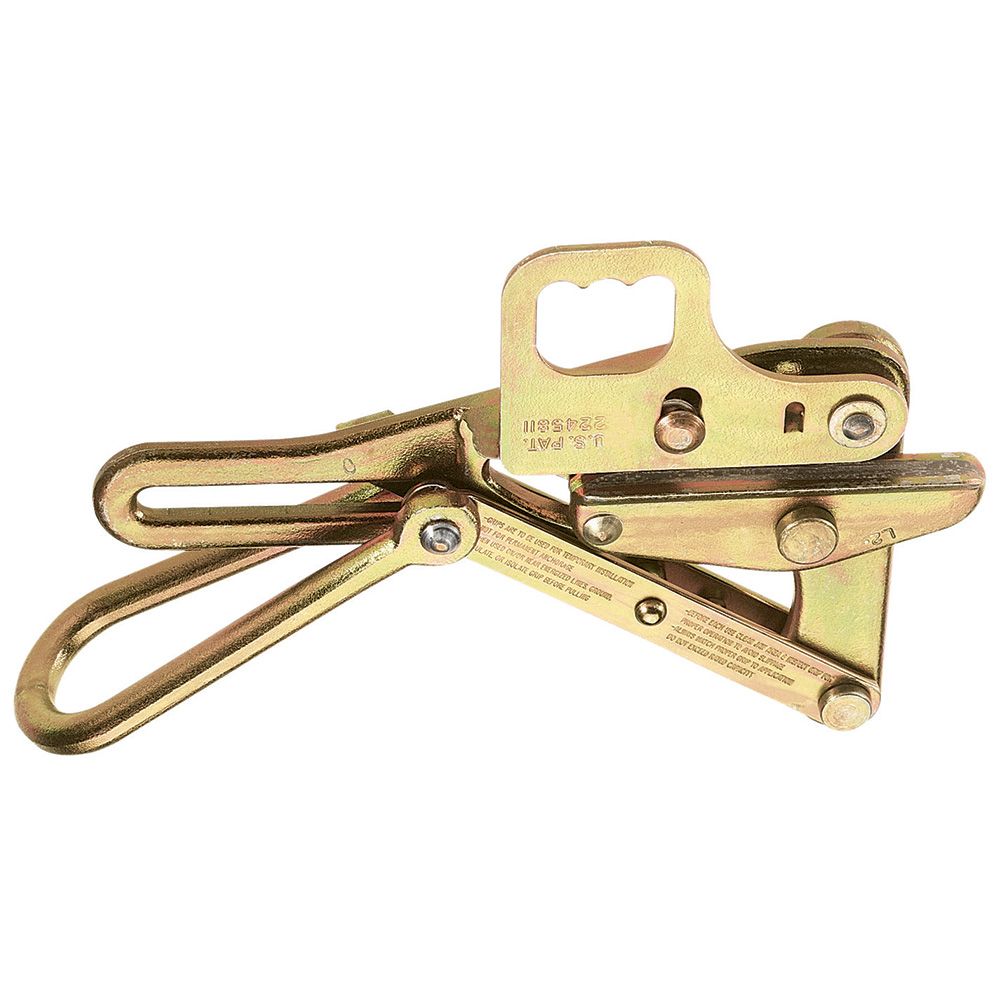

Klein Tools 1656-20H | Chicago Grip with Latch, Bare Conductors to ...
Description
Description
Klein Tools 1656 Series Chicago Grips have a round, smooth inside jaw contour making it perfect for work with stranded copper cables. These smooth jaws grip with maximum contact and are less likely to cause cable deformation. This grip also has a hot-line latch designed for placing a grip on a cable with a hot-line stick. The three notches in the hot-line latch adjust the balance of the grip to better match the direction of the cable sag. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Klein Tools - 1656-20H - Features
- Hot-line grips for both bare and insulated conductors
- Grip may be placed on wire with hot-line stick
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- When springs or lock-open features are desired, add prefix letter ''S'' before catalog number (example: S1684-5H)
Specifications
Specifications
Klein Tools - 1656-20H - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Hot-Line Latch for Bare Conductors
Klein Tools - 1656-20H - Related Products
- 1613-40H - Chicago Grip with Latch 0.37-Inch Cable
- 1656-30H - Chicago Grip with Latch 0.53-Inch Capacity
- 1656-40H - Chicago Grip with Latch 0.74-Inch Capacity
- 1656-50H - Chicago Grip with Latch 0.86-Inch Capacity
- 1656-60H - Chicago Grip with Latch 0.96-Inch Capacity
Klein Tools - 1656-20H - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1656-20H - Specifications
| Type | Chicago Grip |
|---|---|
| Application | Bare Conductors |
| Cable Type | Copper, ACSR, AAC |
| Cable Diameter | 0.2'' to 0.4'' (5.08 to 10.16 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | N |
| Locking Handle | Y |
| Jaw Type | Round |
| Jaw Length | 4'' (10.2 cm) |
| Maximum Safe Load | 4500 lb (2041 kg) |
| Weight | 3.15 lb (1.43 kg) |
| UPC | 92644471056 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 1656-20H - Videos
| Klein Tools 1656-20H Video | Click to View |
|---|
