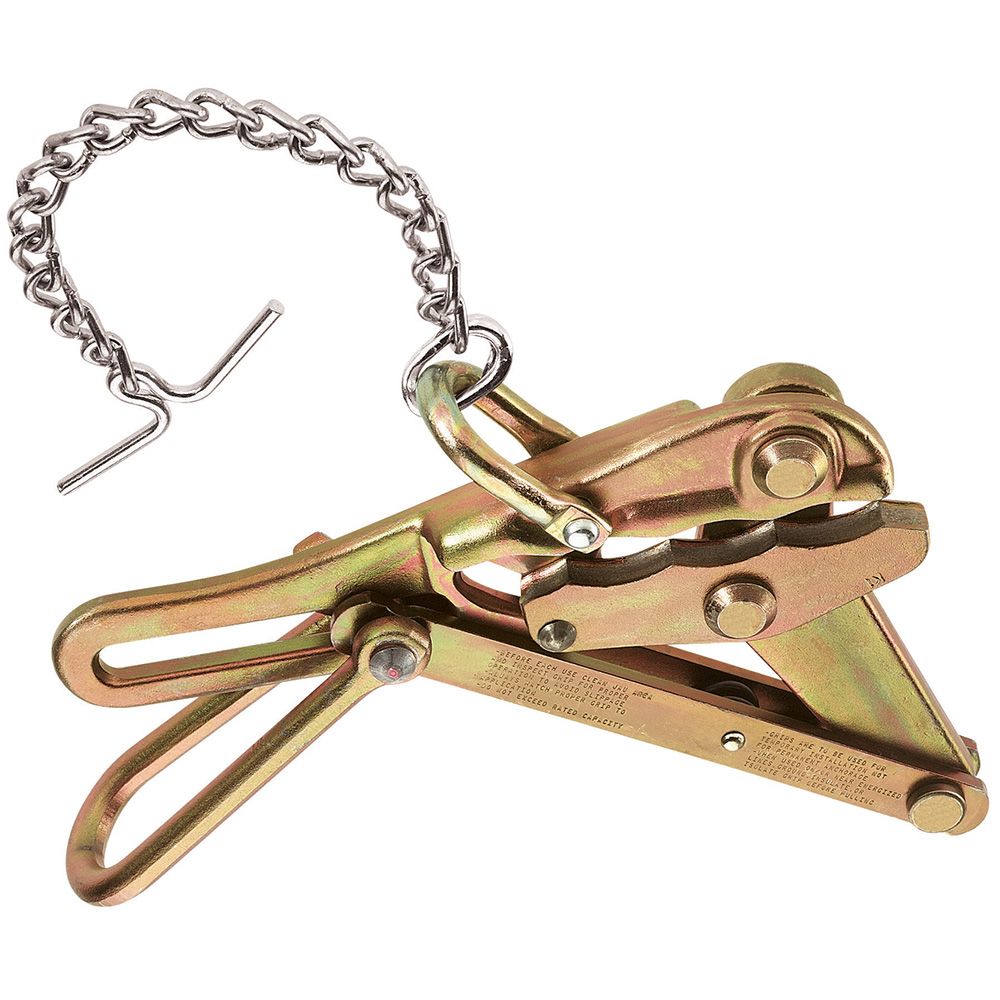

Klein Tools 1659-5AT | Chicago Grip Type B Strand Puller
Description
Description
The Klein Tools 1659-5AT Chicago Grip is similar to a Bell-System type -InchB-Inch Strand Puller. It is designed to pull 1/4-Inch figure-8 telephone cable. Plus, it is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein Tools grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Klein Tools - 1659-5AT - Features
- Similar to Bell-System type ''B'' strand puller
- Designed to pull 1/4-Inch (6.35 mm) figure-8 telephone cable
- 0.20-Inch to 0.37-Inch (5.08 to 9.40 mm) cable diameter range with max safe load of 5000-Pound (2268 kg)
- Serpentine grooves grip insulation on strand, preventing slippage
- Made in USA

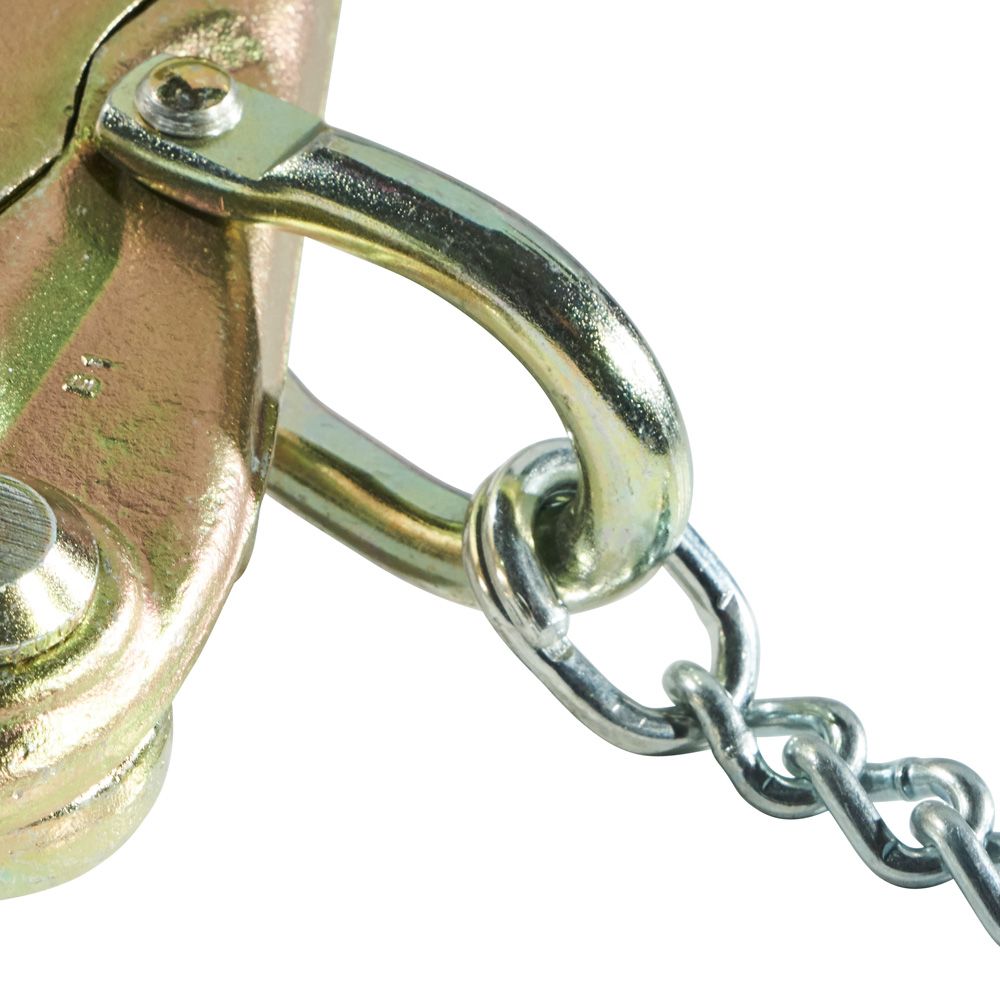

- Equipped with chain, toggle, and shackle
Specifications
Specifications
Klein Tools - 1659-5AT - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Bell-System Type Grips
Klein Tools - 1659-5AT - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1659-5AT - Specifications
| Type | Chicago Grip |
|---|---|
| Application | 1/4'' Figure-8 Telephone Cable |
| Special Features | ''B'' Strand Puller -- Equipped With a Chain, Toggle and Shackle |
| Cable Type | Steel Strand |
| Cable Diameter | 0.2'' to 0.37'' (5.08 to 9.4 mm) |
| Hot Latch | N |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Round - Serpentine |
| Jaw Length | 5'' (12.7 cm) |
| Maximum Safe Load | 5000 lb (2268 kg) |
| Weight | 6.7 lb (3.03 kg) |
| UPC | 092644471209 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 1659-5AT - Videos
| Klein Tools 1659-5AT Video | Click to View |
|---|
