Klein Tools 1684-5F | Grip for High Strength Cable
Regular price
$766.43
Unit price
Brand: Klein Tools
|
SKU:
440193
Regular price
$766.43
Unit price
Description
Description

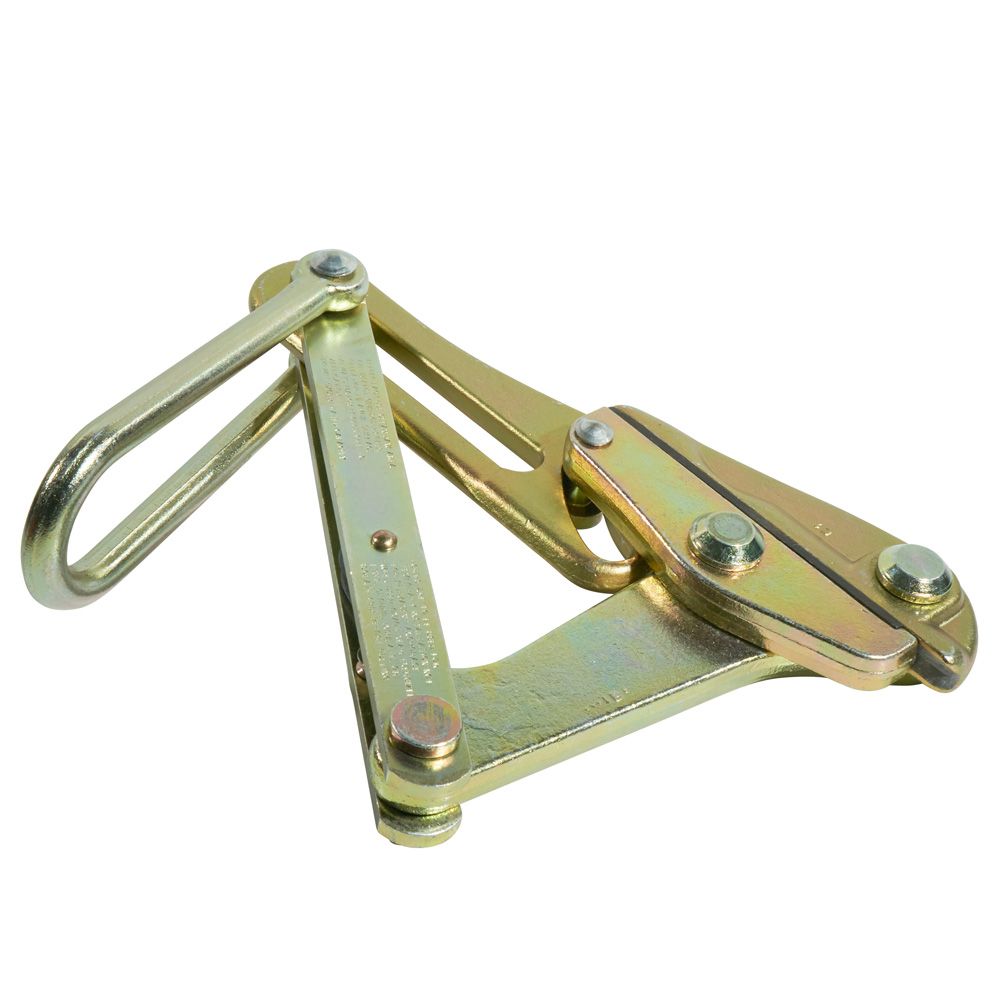

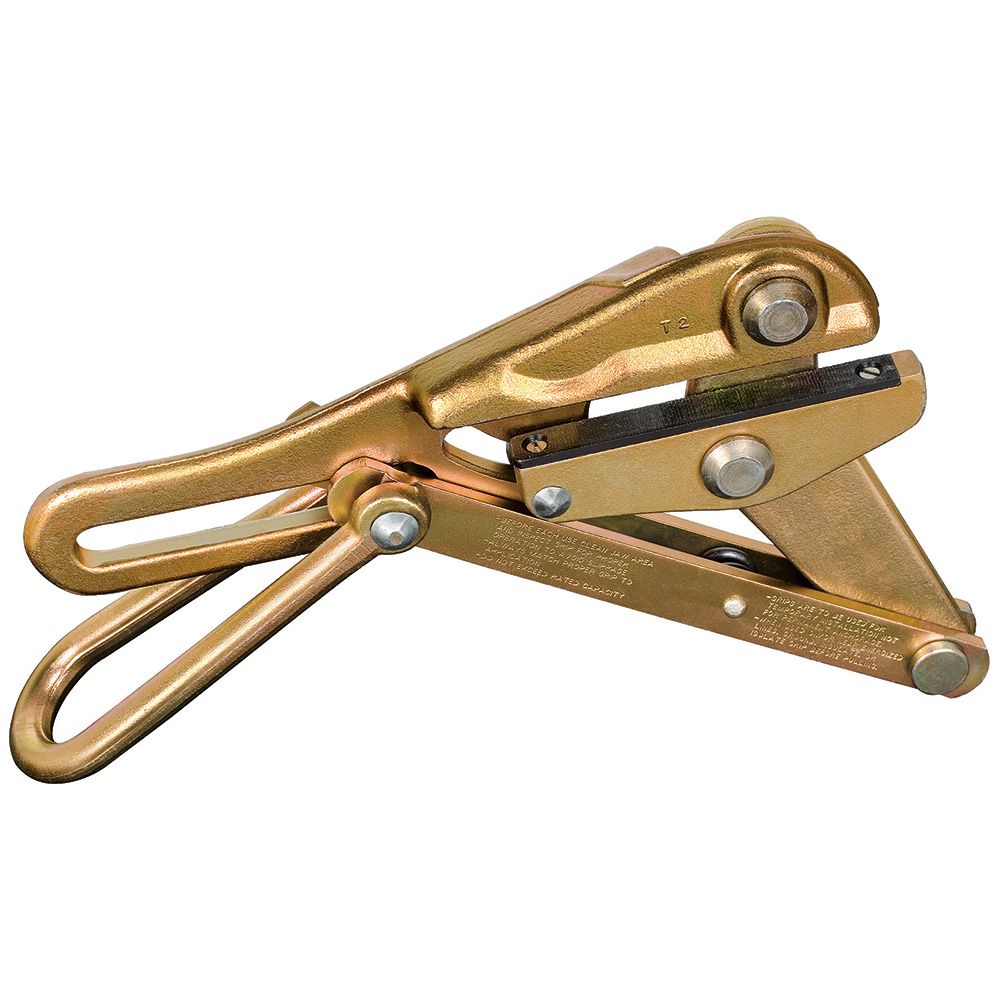

Klein Tools 1684-5F | Grip for High Strength Cable
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
Klein Tools - 1684-5F - Features
- Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
- Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- For larger conductors, see our grips with round inside-jaw contour
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Made in USA
- Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
Specifications
Specifications
Klein Tools - 1684-5F - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Extra-High-Strength Cables
Klein Tools - 1684-5F - Related Products
- 1613-40 - Grip for High Strength Cables 0.37-Inch
- 1628-16 - Grip for High Strength Cables 0.62-Inch
- 1628-17 - Grip for High Strength Cables 0.5 to 0.75-Inch
- 1628-18 - Chicago Grip, 0.75 to 1-Inch High Strength Cables
- 1684-5 - Grip for High Strength Cables 0.55-Inch
Klein Tools - 1684-5F - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1684-5F - Replacement Parts
- 573 - Replacement File Screw for 1684 - 5F Grip
- 578 - Replacement File Only for 1684-5F Grip
Klein Tools - 1684-5F - Specifications
| Type | Chicago Grip |
|---|---|
| Application | Wire Pulling |
| Special Features | Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573) |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.16'' to 0.55'' (4.06 to 13.97 mm) |
| Hot Latch | N |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Single V with File Insert |
| Jaw Length | 5'' (12.7 cm) |
| Maximum Safe Load | 8000 lb (3629 kg) |
| Weight | 6.4 lb (2.9 kg) |
| UPC | 092644479465 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
