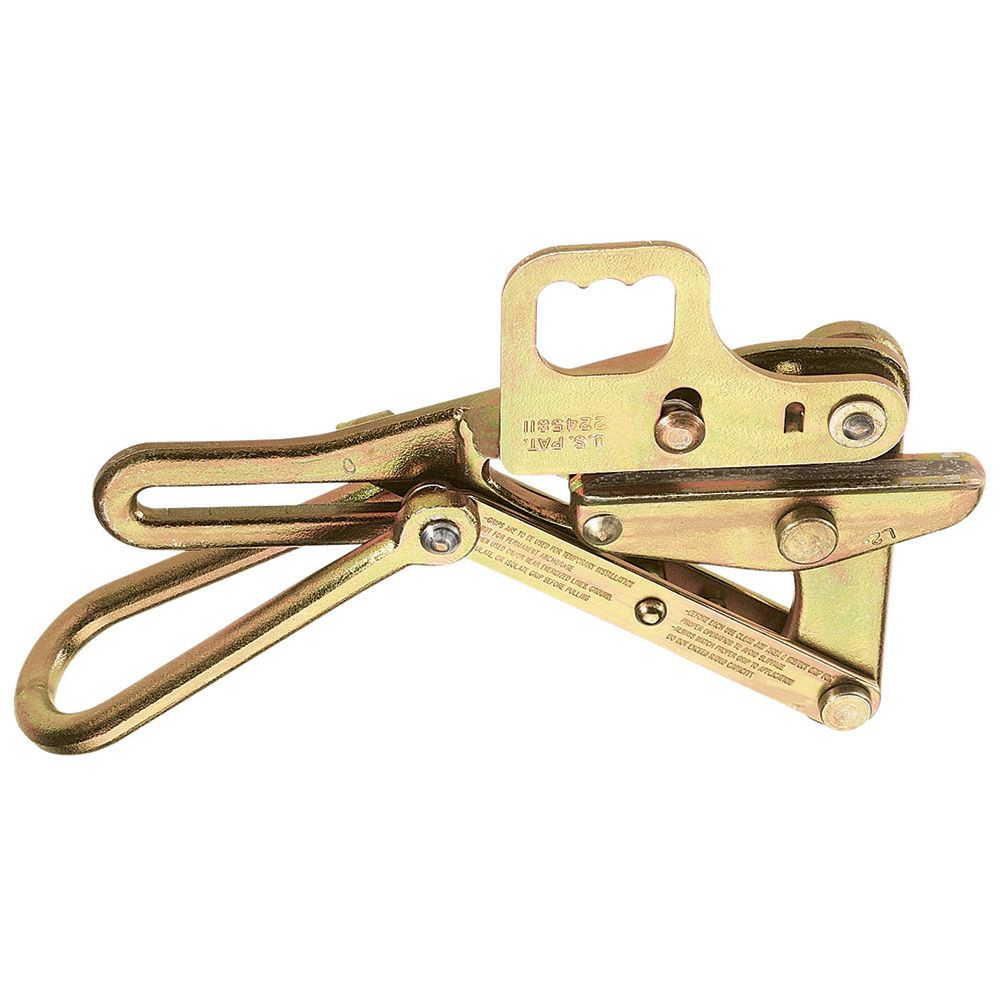

Klein Tools 1684-5H | Chicago Grip with Latch 0.37-Inch Cable
Description
Description
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Hot-line grips for both bare and insulated conductors. Grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire. Standard hot-line grips are not supplied with springs or lock-open features.
Klein Tools - 1684-5H - Features
- Hot-line grips for steel stranded cable
- Grip may be placed on wire with hot-line stick
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Specifications
Specifications
Klein Tools - 1684-5H - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Hot-Line Latch for Bare Conductors
Klein Tools - 1684-5H - Related Products
- 1613-40H - Chicago Grip with Latch 0.37-Inch Cable
- 1656-20H - Chicago Grip w/Latch, Bare Conductors to 0.4-Inch
- 1656-30H - Chicago Grip with Latch 0.53-Inch Capacity
- 1656-40H - Chicago Grip with Latch 0.74-Inch Capacity
- 1656-50H - Chicago Grip with Latch 0.86-Inch Capacity
Klein Tools - 1684-5H - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1684-5H - Specifications
| Type | Chicago Grip |
|---|---|
| Application | Steel Stranded Cable |
| Special Features | May Be Placed on Wire with Hot-Line Stick |
| Material | Steel |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.218'' to 0.55'' (5.54 to 13.97 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | N |
| Locking Handle | Y |
| Jaw Type | Double V |
| Jaw Length | 5'' (12.7 cm) |
| Maximum Safe Load | 8000 lb (3629 kg) |
| Weight | 6.5 lb (2.9 kg) |
| UPC | 092644471674 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
