Klein Tools 16845C | Chicago Grip Coated Guy Wire
Regular price
$630.27
Unit price
Brand: Klein Tools
|
SKU:
813768
Regular price
$630.27
Unit price
Description
Description

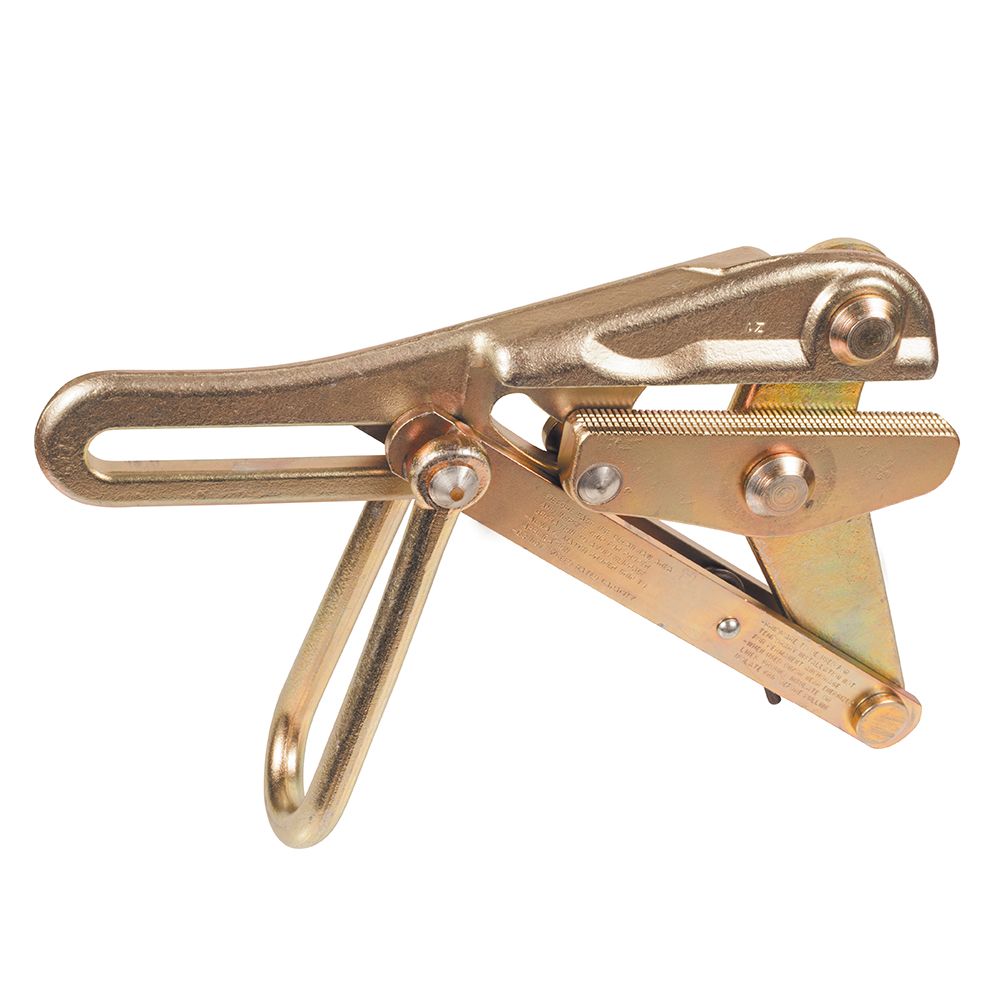

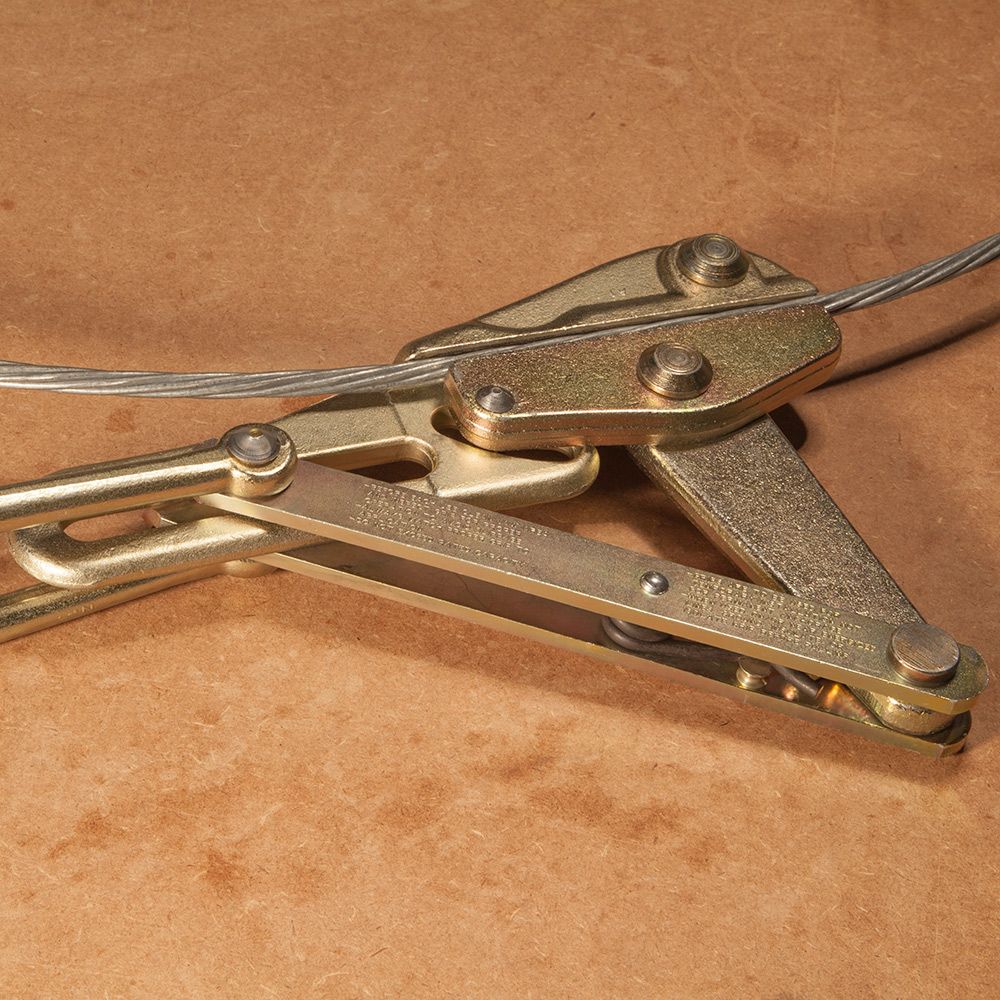

Klein Tools 16845C | Chicago Grip Coated Guy Wire
This Chicago Grip is designed specifically to work with coated guy wire. This authentic Klein Tools Grip is manufactured, inspected and tested in the USA. Klein Tools grips are made of drop-forged, quality US steel and heat treated for strength and durability.
Klein Tools - 16845C - Features
- Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
- 5'' jaw length increases surface area contact with the cable, minimizing cable damage
- Designed for cable sizes 0.218-Inch to 0.55-Inch (5.54 mm to 13.97 mm)
- Manufactured from drop-forged, heat-treated steel for excellent durability with a spring that closes grip on cable helping to maintain initial position
- Made in USA

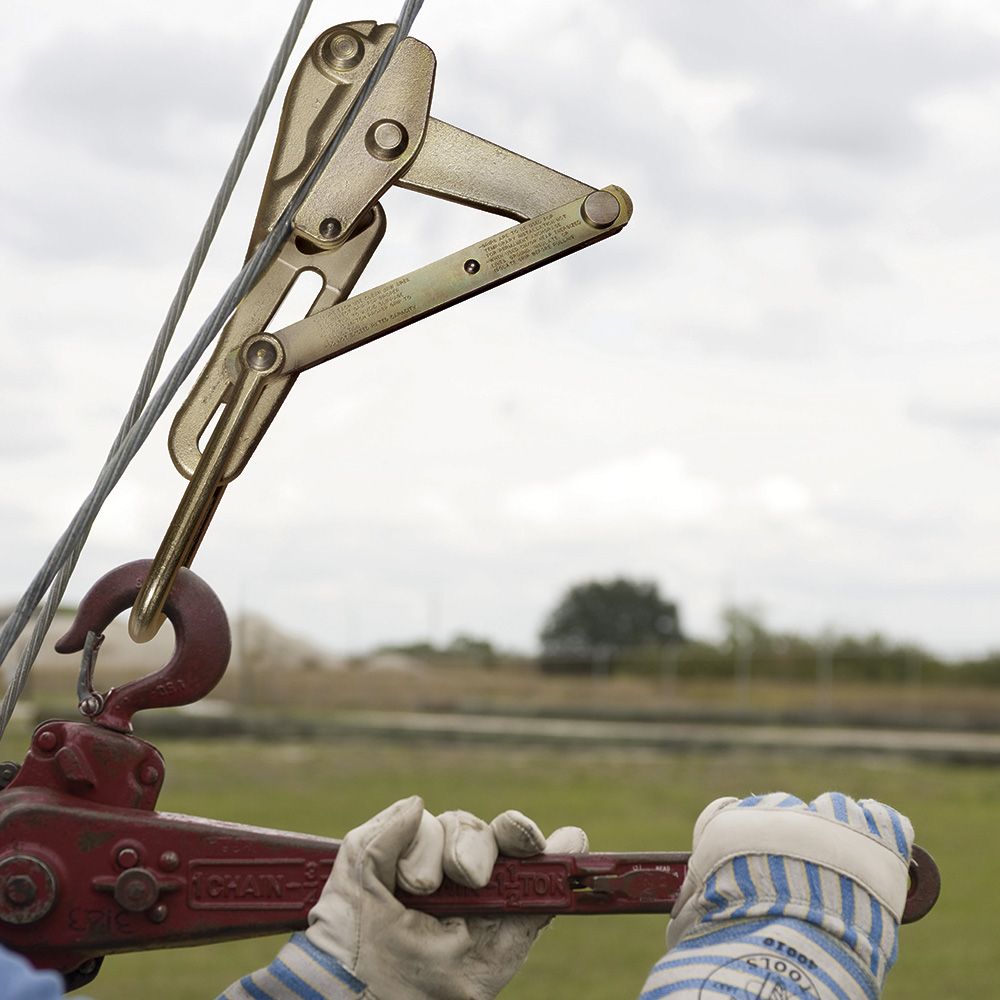

- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Maximum Safe Load is 8000-Pound (3629 kg)
Specifications
Specifications
Klein Tools - 16845C - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Extra-High-Strength Cables
Klein Tools - 16845C - Related Products
- 16845CAT - Chicago Grip Coated Guy Wire with Chain
- 1692-5 - Grip for High Strength Cables 0.218-Inch
- 1684-5 - Grip for High Strength Cables 0.55-Inch
- 1628-17 - Grip for High Strength Cables 0.5 to 0.75-Inch
- 1613-40 - Grip for High Strength Cables 0.37-Inch
Klein Tools - 16845C - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 16845C - Specifications
| Type | Chicago Grip |
|---|---|
| Application | Wire Pulling |
| Special Features | Sawtooth Jaw Profile Resists Build-up |
| Overall Length | 13.3'' (33.8 cm) |
| Overall Height | 2.5'' (6.4 cm) |
| Overall Width | 7.6'' (19.3 cm) |
| Material | Alloy Steel |
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Hot Latch | N |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Aggressive |
| Jaw Length | 5'' (12.7 cm) |
| Cable Diameter | 0.218'' to 0.55'' (5.54 to 13.97 mm) |
| Maximum Safe Load | 8000 lb (3629 kg) |
| Weight | 6.0 lb (2.7 kg) |
| UPC | 092644479458 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 16845C - Videos
| Klein Tools 16845C Video | Click to View |
|---|
