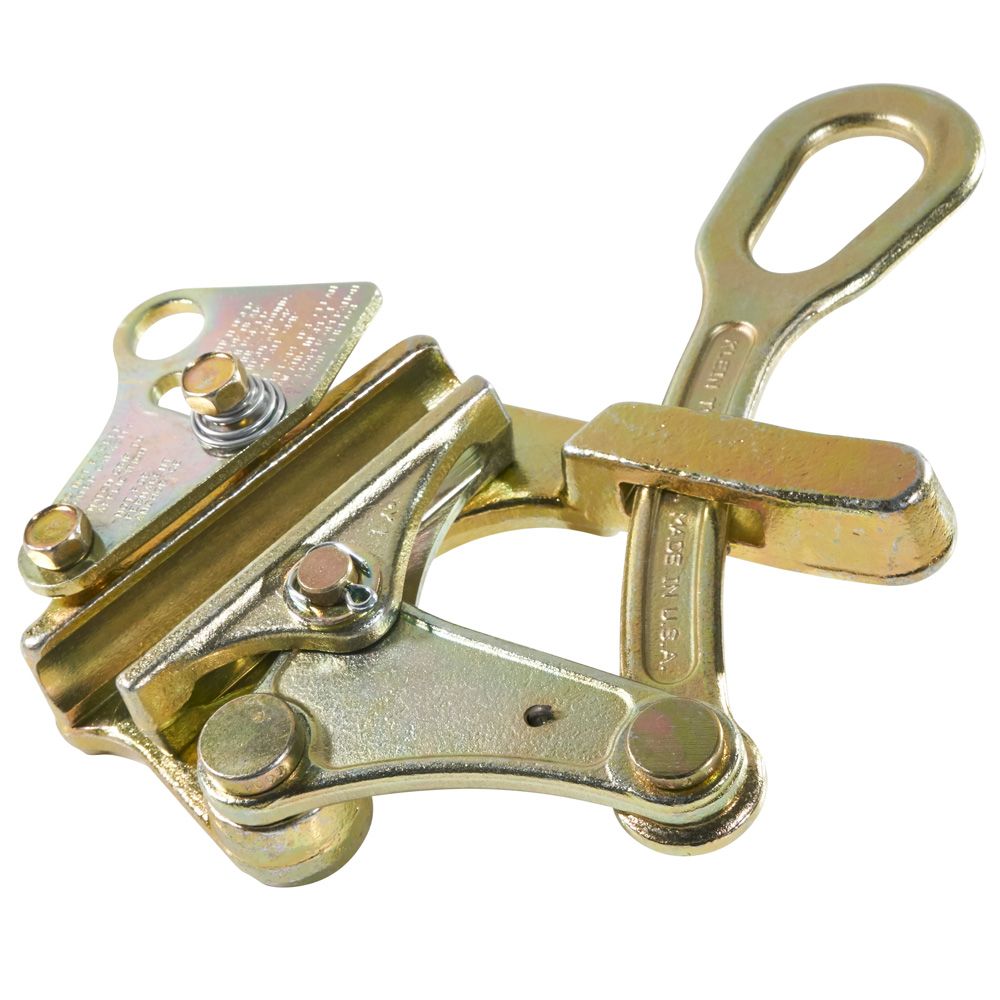

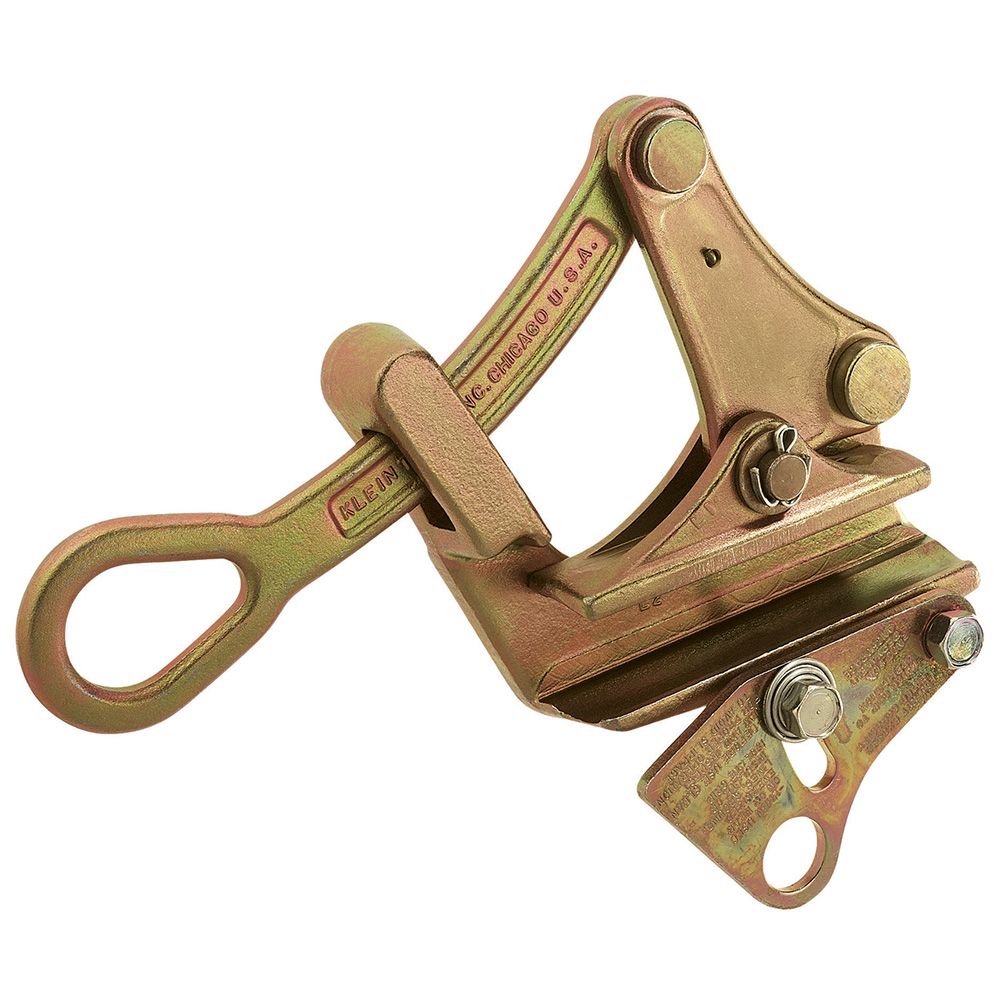

Klein Tools 1685-31 | Parallel Jaw Grip 4-1/2-Inch Length
Regular price
$441.04
Unit price
Brand: Klein Tools
|
SKU:
695149
Regular price
$441.04
Unit price
Description
Description
Klein Tools 1685-31 | Parallel Jaw Grip 4-1/2-Inch Length
Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. Lower jaw is serrated to firmly grip insulated cables and conductors. Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable.
Klein Tools - 1685-31 - Features
- Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
- Designed with a round inside-jaw contour for maximum contact to minimize conductor damage and lower serrated jaw to firmly grip insulated cables and conductors
- Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cable
- Large-diameter eye accommodates large hooks on hoists, winches and tackle blocks
- Made in USA
Specifications
Specifications
Klein Tools - 1685-31 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Parallel Jaw Grips
Klein Tools - 1685-31 - Related Products
- 1685-20 - Parallel Jaw Grip 2-1/2-Inch Length
- 1686-10 - Parallel Jaw Grip, 4-3/8-Inch Length
- 1686-20 - Knurled Parallel Jaw Grip 4-3/8-Inch Length
- KT4500 - Parallel Jaw Grip 4500 Series for ACSR
- KT4502 - Parallel Jaw Grip 4502 Series with Hot Latch
Klein Tools - 1685-31 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - 1685-31 - Specifications
| Type | Compact |
|---|---|
| Application | Cable Pulling |
| Special Features | Hot Latch, Spring |
| Overall Length | 11.7'' (29.7 cm) |
| Cable Type | Messenger, EHS, Guy Strand |
| Cable Diameter | 0.625'' to 1.25'' (15.87 to 31.75 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | N |
| Jaw Type | Round - Serrated |
| Jaw Length | 4.5'' (11.4 cm) |
| Maximum Safe Load | 7500 lb (3400 kg) |
| Weight | 4.8 lb (2.2 kg) |
| UPC | 092644471780 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - 1685-31 - Videos
| Klein Tools 1685-31 Video | Click to View |
|---|
