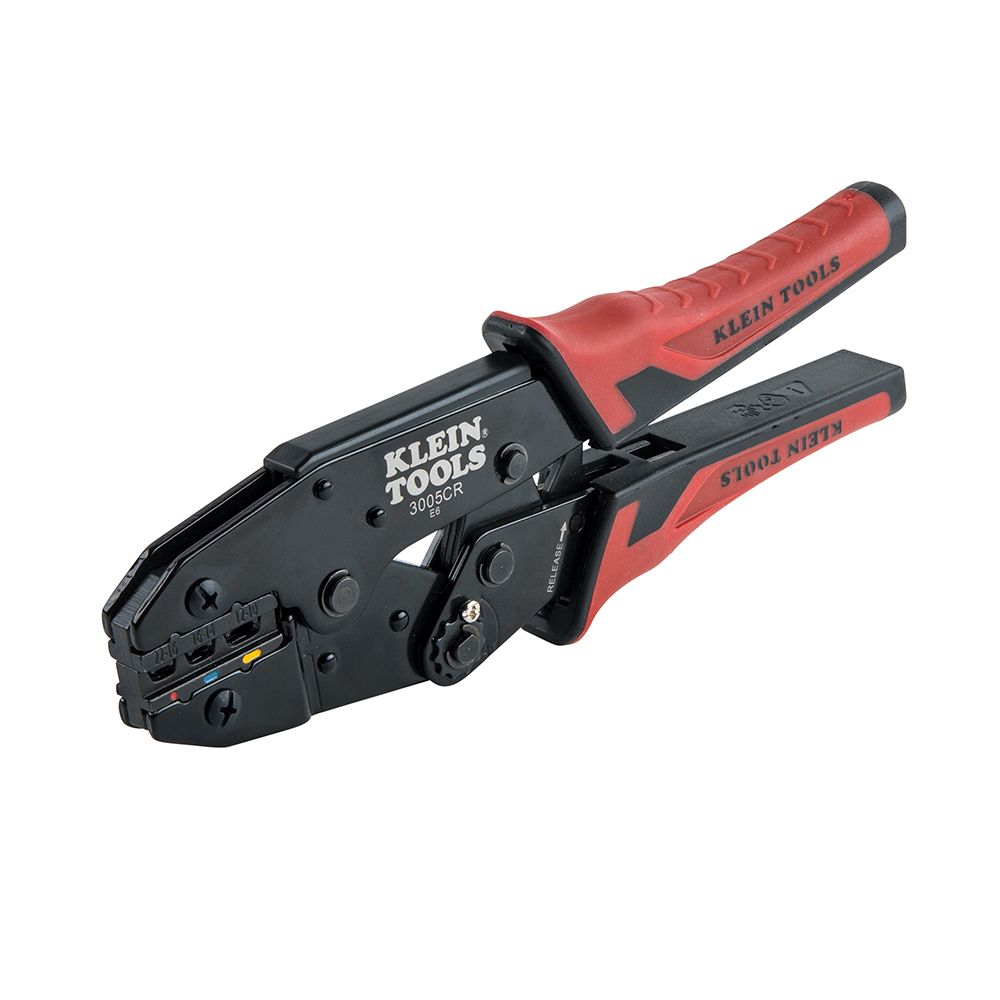

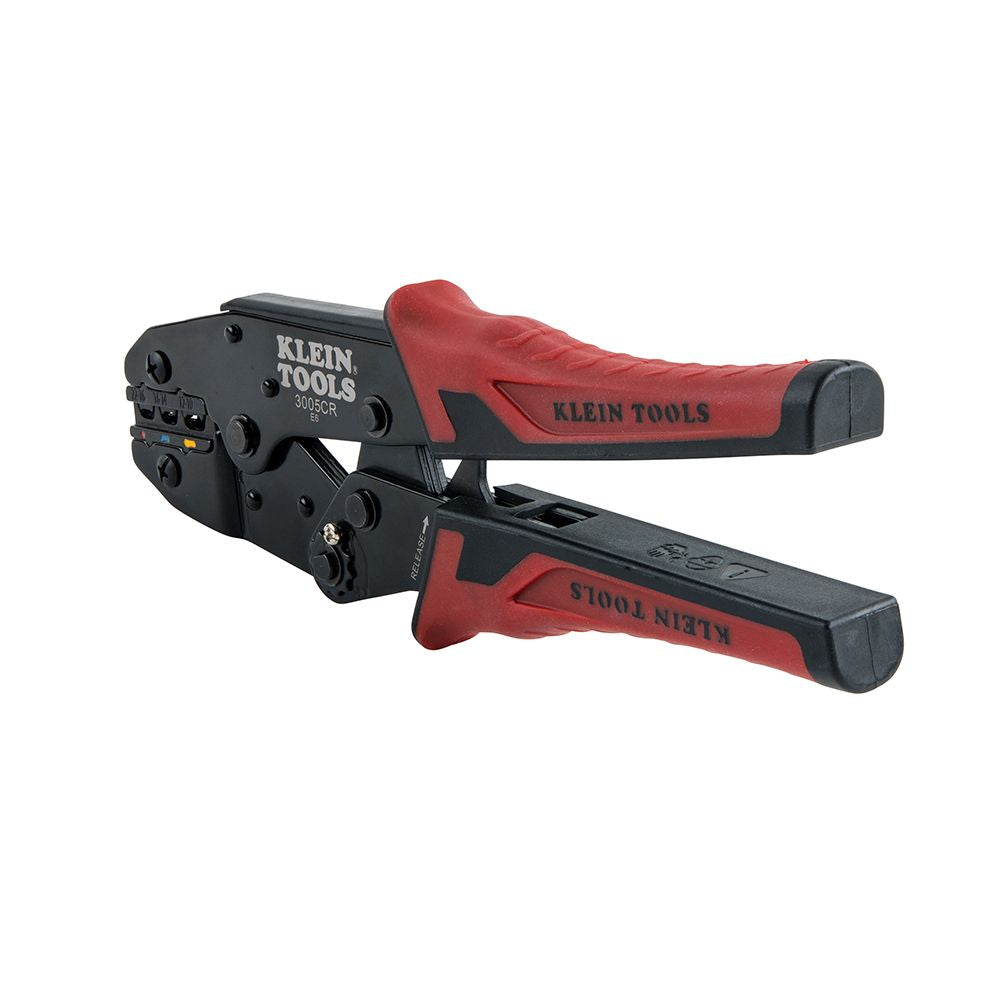

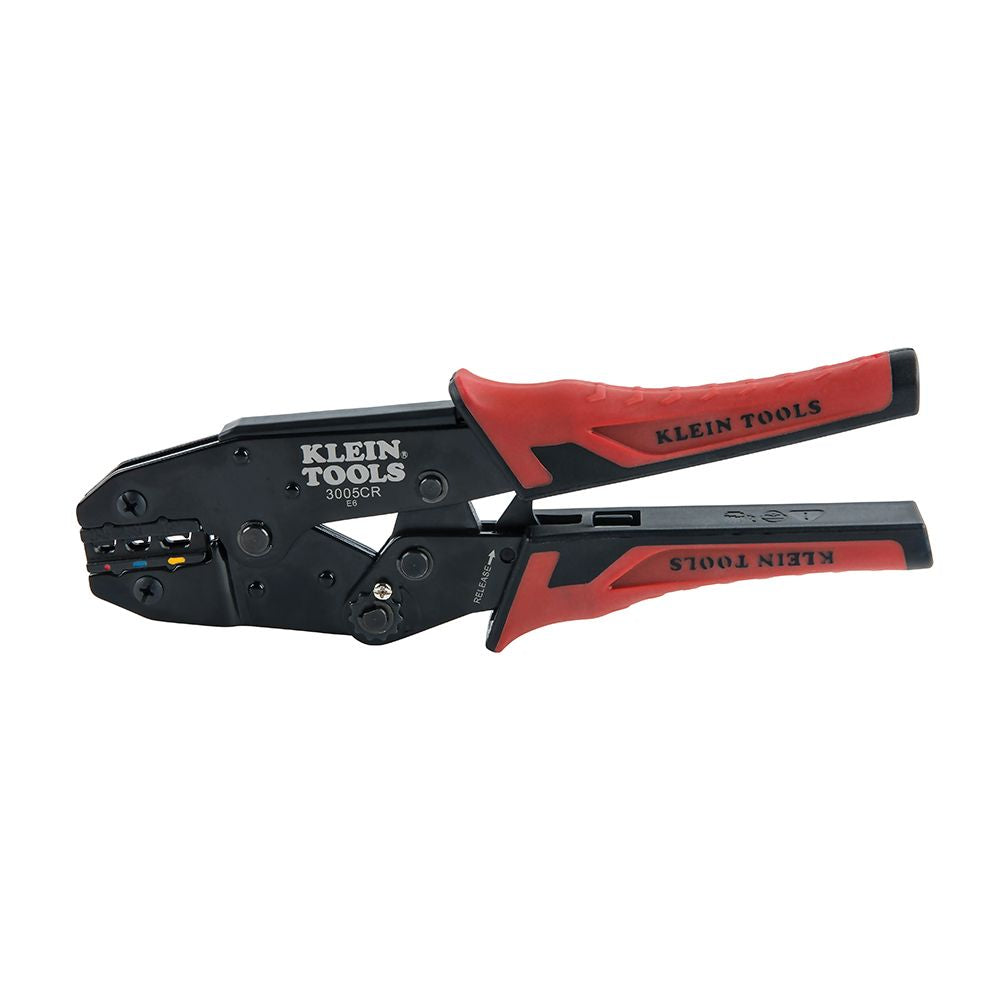

Klein Tools 3005CR | Ratcheting Crimper, 10-22 AWG - Insulated Terminals
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Klein Tools 3005CR | Ratcheting Crimper, 10-22 AWG - Insulated Term...
Description
Description

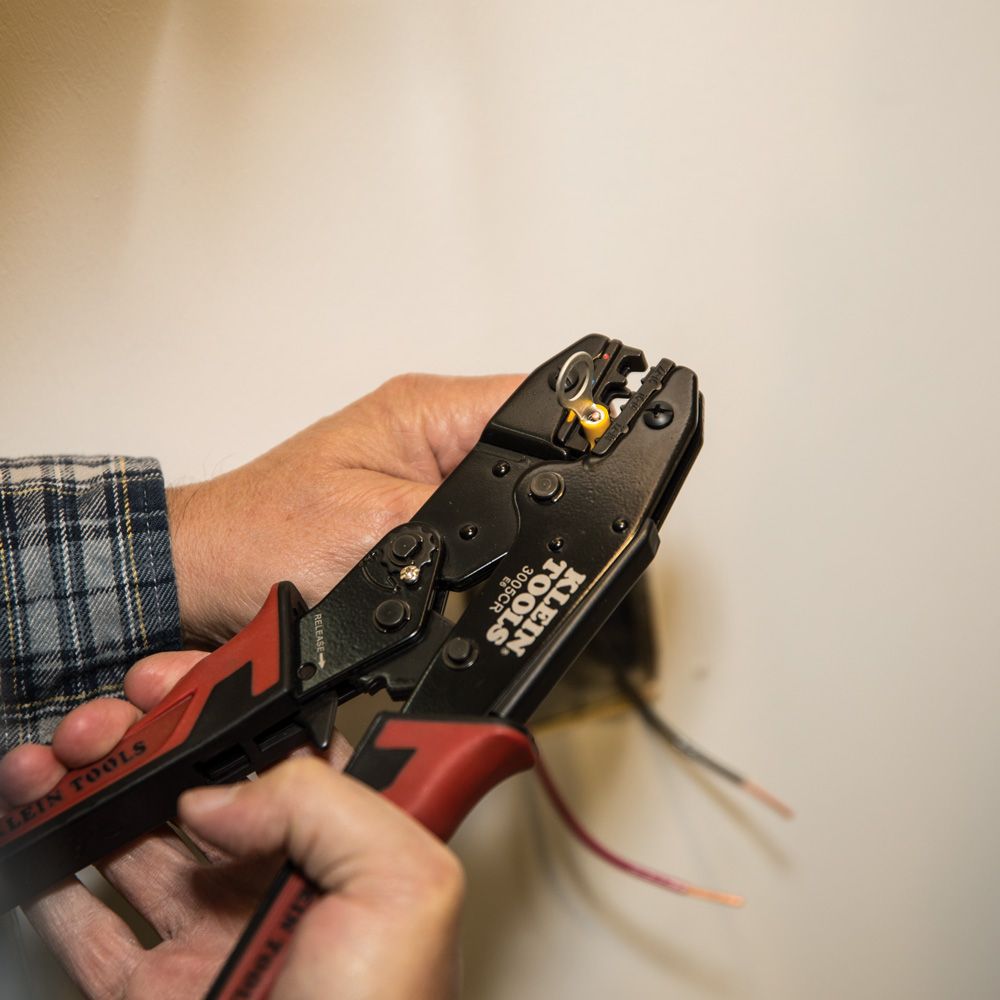

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Klein Tools - 3005CR - Features
- Crimps insulated terminals onto 10-22 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze
- Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
Specifications
Specifications
Klein Tools - 3005CR - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Termination Tools
- Strippers, Cutters, and Crimpers
- Wire Cutters
- Combination Cutting Tools
Klein Tools - 3005CR - Specifications
| Type | Ratcheting Crimper |
|---|---|
| Application | Wire Crimping |
| Special Features | 3 Crimping Cavities |
| Material | Steel |
| Handle Color | Red, Black |
| Handle Finish | Dual-Material |
| Cable Size | Front Cavity: 22-16 AWG Insulated Terminals; Mid Cavity: 16-14 AWG Insulated Terminals; Rear Cavity: 12-10 AWG Insulated Terminals |
| Connector Type | Insulated |
| Overall Length | 9'' (22.9 cm) |
| Overall Height | 0.09'' (0.2 cm) |
| Overall Width | 3'' (7.6 cm) |
| Weight | 1.3 lb (0.6 kg) |
| UPC | 92644344008 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Always wear approved eye protection. Not insulated. Plastic-dipped or slip-on plastic handles are Not intended for protection against electrical shock. |
Klein Tools - 3005CR - Videos
| Klein Tools 3005CR Video | Click to View |
|---|
