Klein Tools 51608 | 1/2-inch Iron Conduit Bender Head
Description
Description

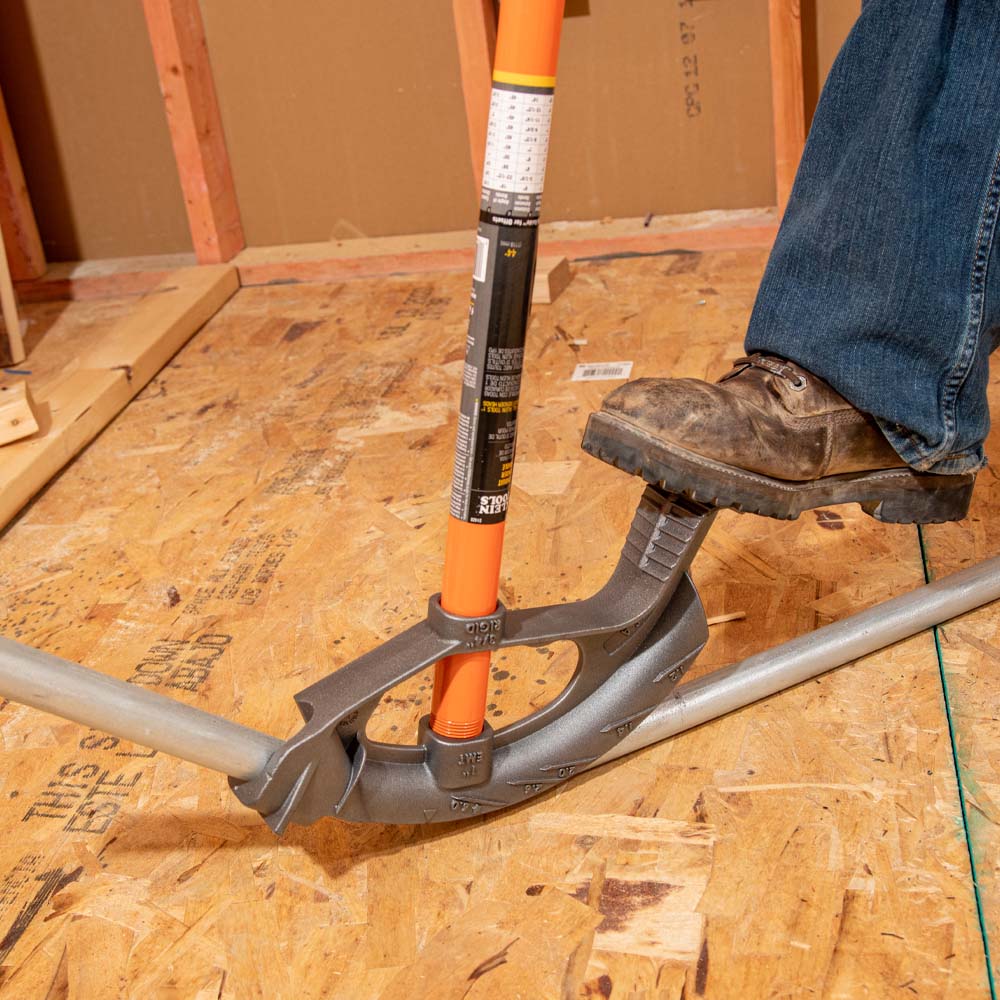

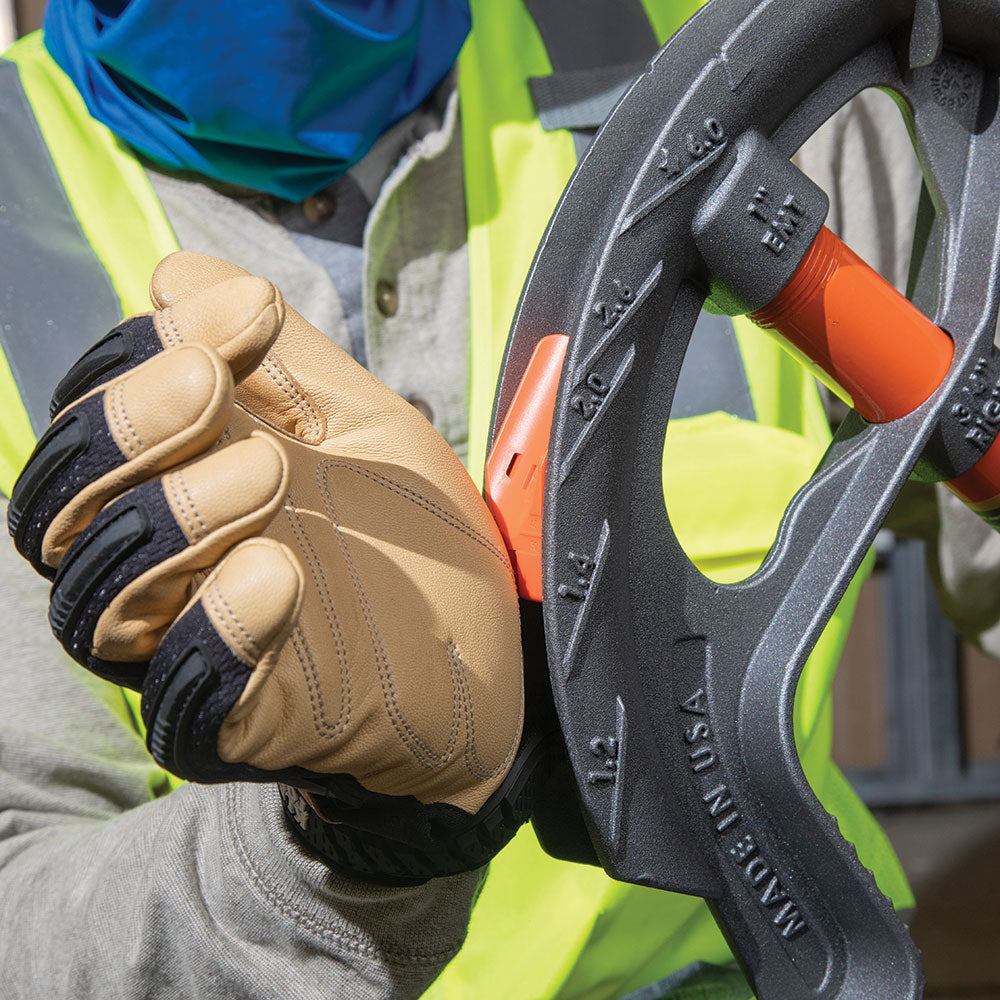

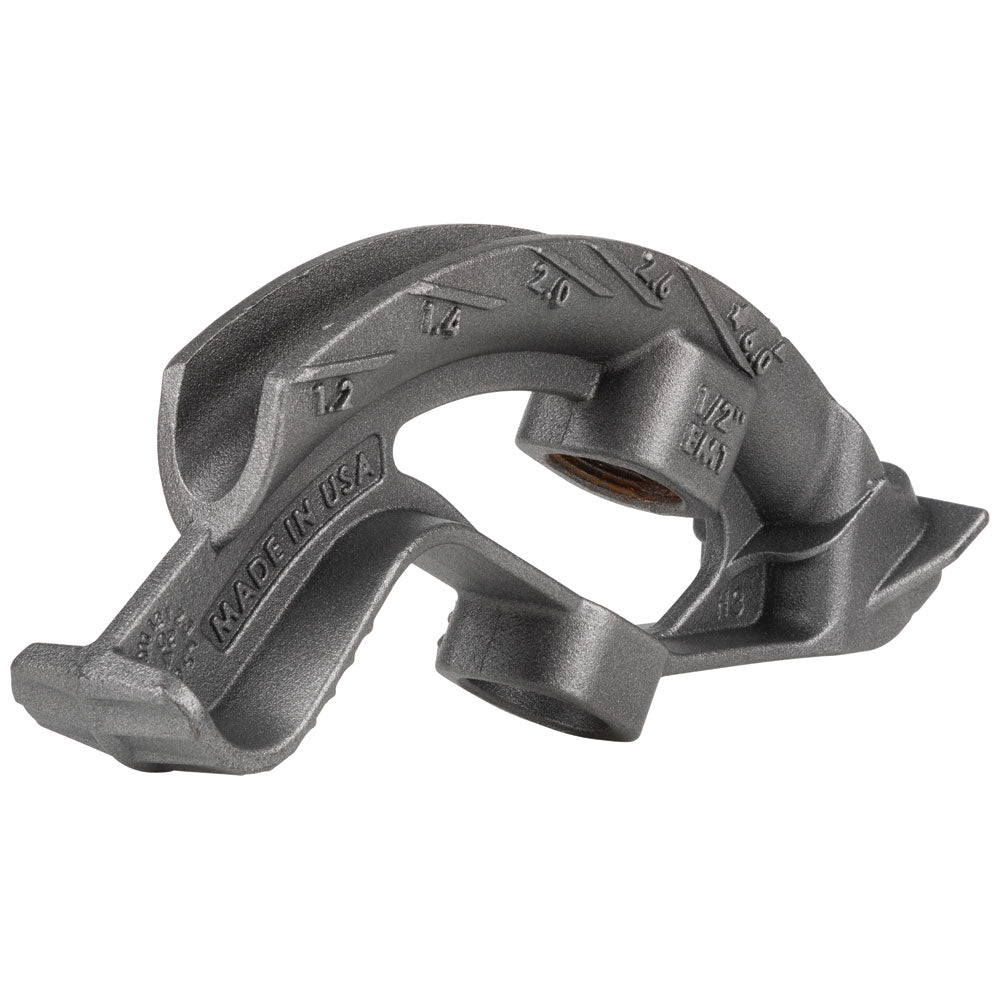

Klein Tools Conduit Bender Head is designed to handle thin wall EMT up to 1/2-Inch. Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability. The wide foot pedal provides excellent stability and features angled grooves for extra traction. Easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job. This head works with Klein's patented Angle Setters (Cat. No. 51611) for quick, repeated bends and the Klein Handle (Cat. No. 51427), which are both sold separately.
Specifications
Specifications
Klein Tools - 51608 - Warnings
- Always wear approved eye protection.
- Use a safe work position to avoid loss of balance.
Klein Tools - 51608 - Product Categories
- Wire Fish Tape, Fish Rods, and Conduit Tools
- Conduit Tools
Klein Tools - 51608 - Specifications
| Type: | Iron Bender Head |
|---|---|
| Application: | Conduit Bending |
| Special Features: | Bold, Cast Markings, Compatible with Angle Setter |
| Overall Length: | 1.7'' (4.4 cm) |
| Overall Height: | 5.2'' (13.1 cm) |
| Overall Width: | 8.1'' (20.6 cm) |
| Material: | Iron |
| Centerline Bend Radius: | 4''- Stub-up Height 5'', Centerline Radius 4-5/8'' |
| Thinwall/EMT: | 1/2'' (1.3 cm) |
| Conduit Size: | 1/2'' |
| Marking: | 10°, 22º, 30°, 45°, 60° |
| For Use With: | Angle Setter Cat. No. 51611 |
| Weight: | 2.2 lb (1.0 kg) |
| UPC: | 92644516085 |
