Klein Tools 69409 | Line Splitter 10x
Description
Description

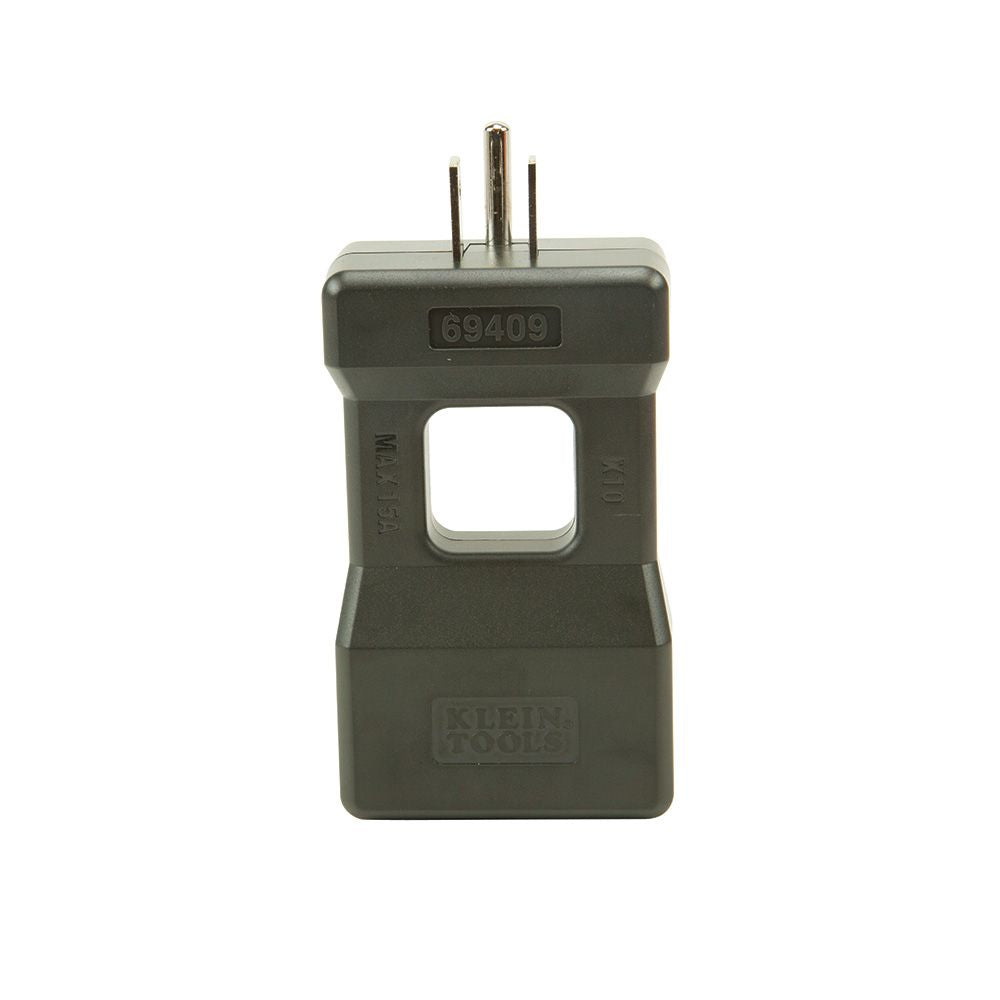

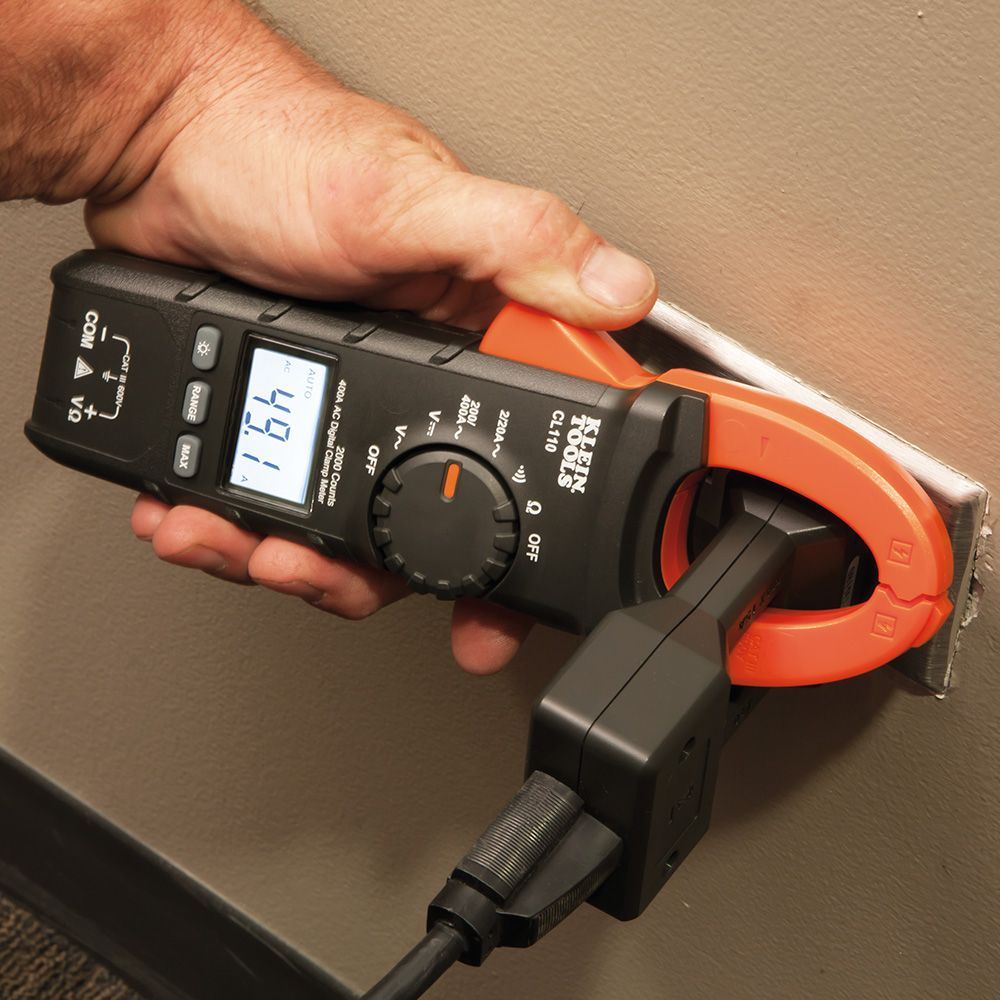

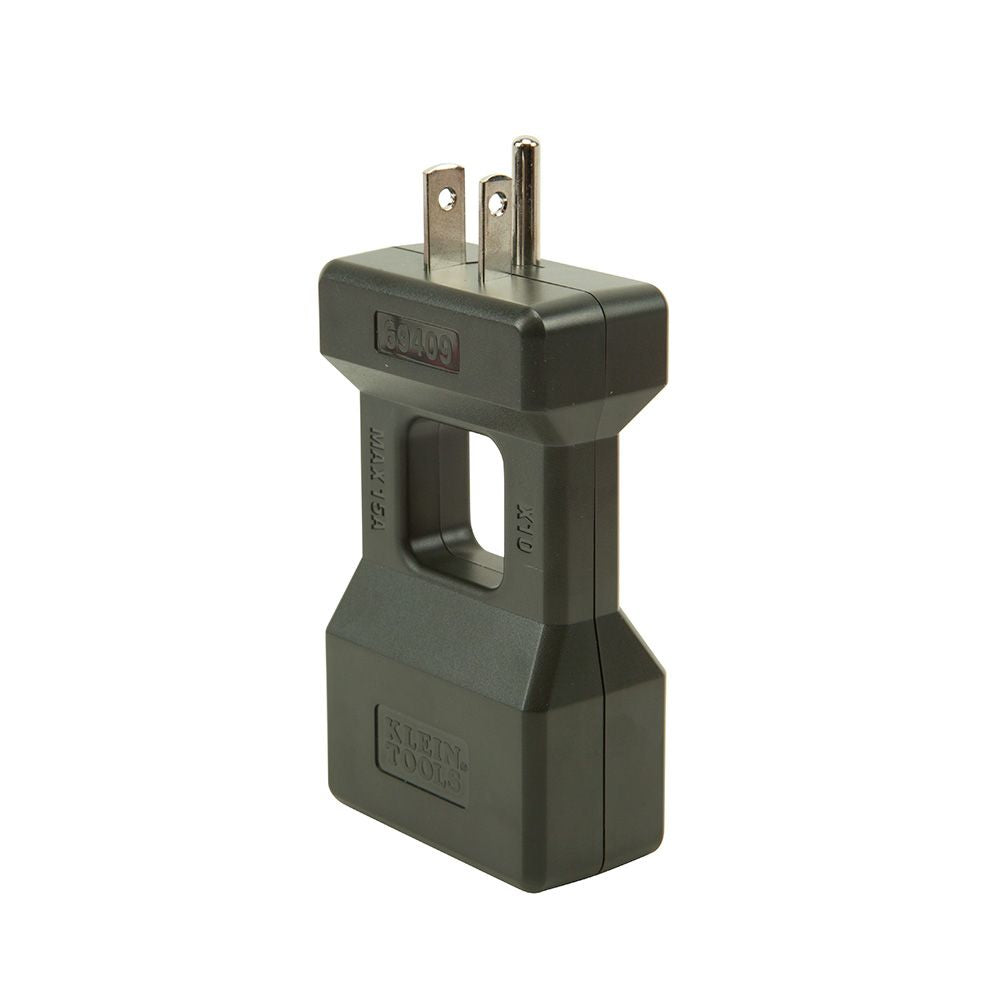

The Klein Tools 69409 Line Splitter separates hot from neutral and ground wires on standard 120-Volt outlets so that current measurements can be made with a current clamp. Without the Line Splitter, the current clamp measures the load current going in both directions, effectively cancelling the measurement. The Line Splitter has a standard measurement section and ten-times multiplier section for use with less accurate or higher ranged clamp meters. It was designed for use with Klein Tools clamp meters but will also function with many other manufacturers' clamp meters.
Klein Tools - 69409 - Features
- Allows the measuring of current draw up to 15A without splitting the load's power cord
- For use with all Klein clamp meters
- Can be used to perform voltage checks with standard multimeter probes
- Provides 10X measurement mode
- For North American-style outlets only
Specifications
Specifications
Klein Tools - 69409 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Test Equipment
- Test Equipment Accessories
- Test & Measurement
- Test & Measurement Accessories
Klein Tools - 69409 - Related Products
- CL120 - Digital Clamp Meter, AC Auto-Ranging 400 Amp
- CL120KIT - Clamp Meter Electrical Test Kit
- CL220 - Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
- CL320 - HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp
- CL390 - AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp
Klein Tools - 69409 - Accessories
- 69142 - K-Type High Temperature Thermocouple
- 69406 - Tradesman Pro Carrying Case Small
- 69410 - Replacement Test Lead Set, Right Angle
- 69445 - Rare-Earth Magnetic Hanger, no Strap
Klein Tools - 69409 - Specifications
| Application | Use with Klein Clamp Meters |
|---|---|
| Special Features | Measures up to 15A |
| Overall Length | 4.67'' (11.9 cm) |
| Overall Height | 4.67'' (11.9 cm) |
| Overall Width | 2.28'' (5.8 cm) |
| Drop Protection | 3.3' (1 m) |
| Weight | 3.8 oz (109 g) |
| UPC | 92644694097 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use. Do Not use with current loads greater than 15A (which would be displayed as greater than 150A on a clamp meter using the Line Splitter 10x). Do Not use if Line Splitter 10x appears damaged in any way; do Not use if wet, intended for indoor use only. Always wear approved eye protection. |
Klein Tools - 69409 - Videos
| Klein Tools 69409 Video | Click to View |
|---|
