Klein Tools 935DAG | Digital Angle Gauge and Level
Regular price
$38.08
Unit price
Brand: Klein Tools
|
SKU:
10014888
Regular price
$38.08
Unit price
Description
Description

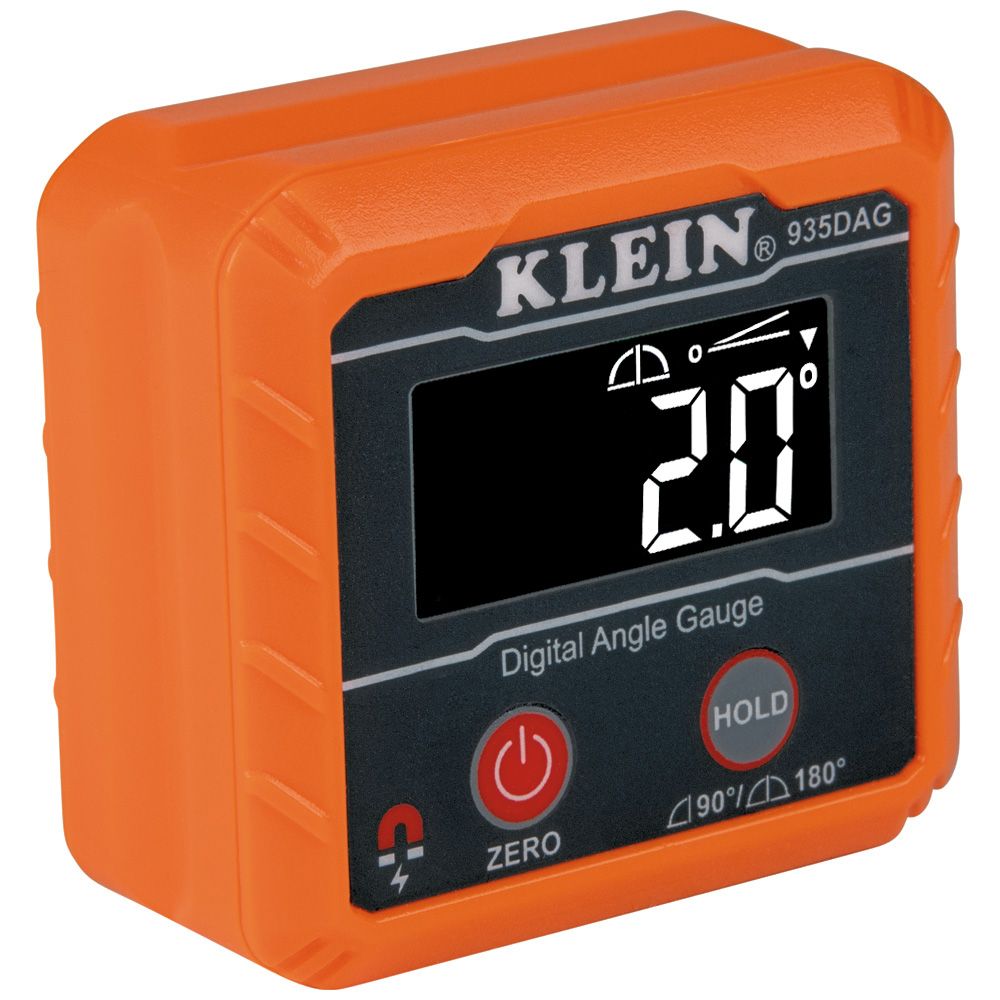

Klein Tools 935DAG | Digital Angle Gauge and Level
The Klein Tools Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. Along with dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree, this tool has a high visibility reverse contrast display for easy viewing.
Klein Tools - 935DAG - Features
- This Digital Angle Gauge and Level can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level
- High visibility reverse contrast display improves visibility in dimly lit work environments

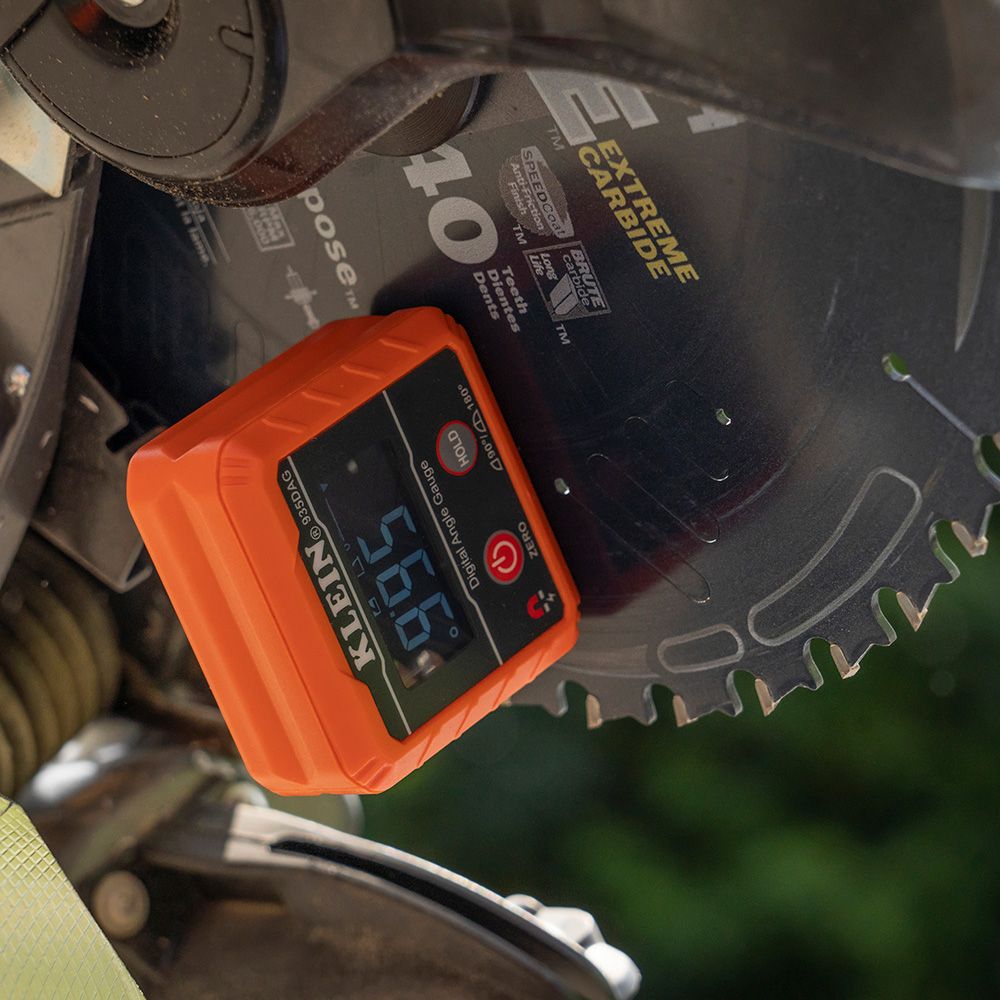

- Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces
- V-groove edges enable optimal alignment on conduits and pipes for bending and alignment

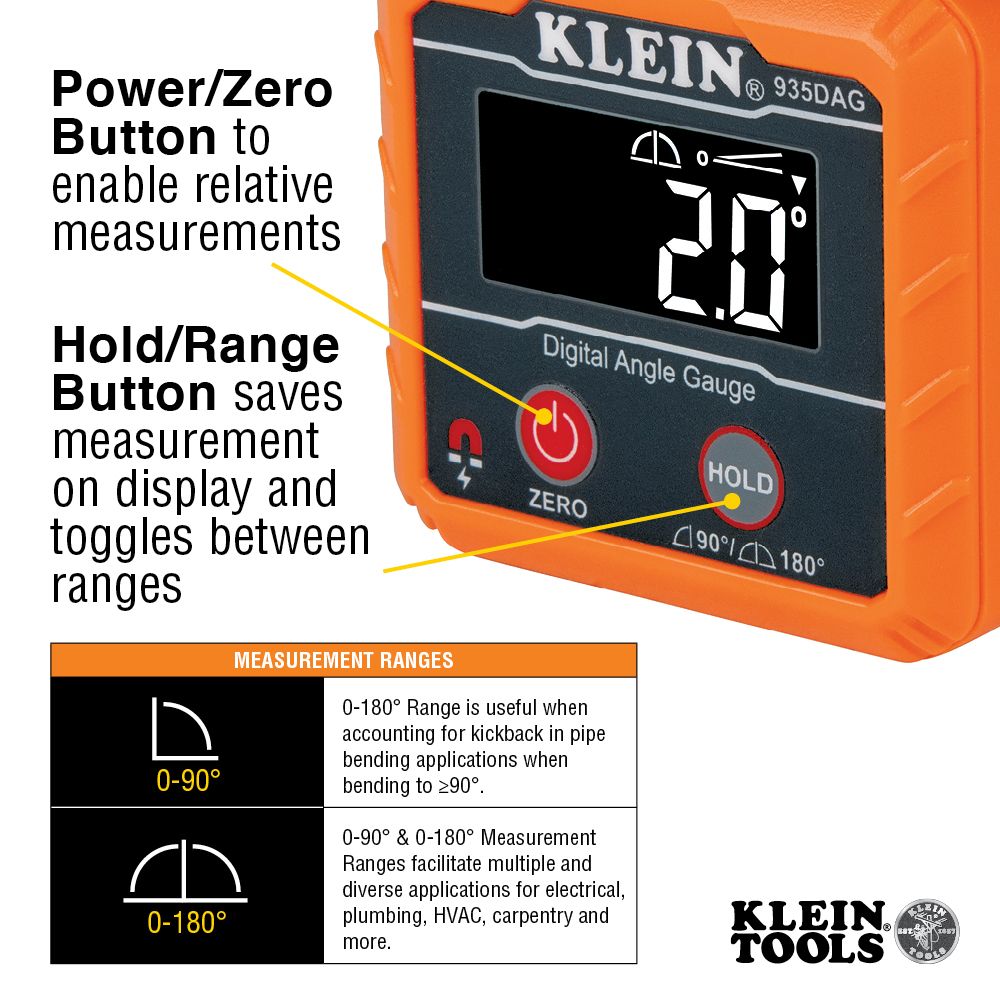

- 0 to 90-Degree and 0 to 180-Degree measurement ranges provide easy use in applications such as woodworking, bending conduit, installing electrical panels, and working on machinery
- 0 to 180-Degree range is useful when accounting for kickback in pipe bending applications when bending to 90-Degree or more

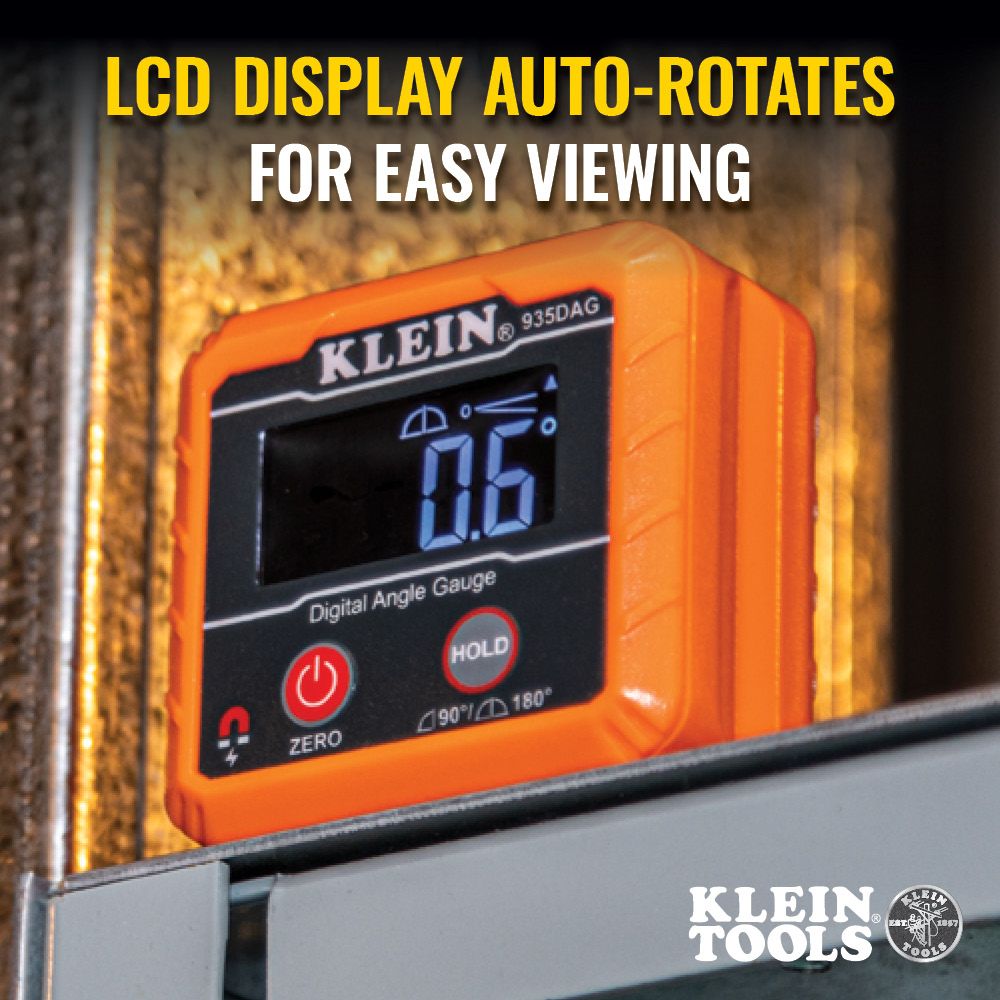

- Display auto-rotates when upside-down for easy viewing
- Water and dust resistant with rating of IP42
- Soft carrying case and two AAA batteries included
Specifications
Specifications
Klein Tools - 935DAG - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Hand Tools
- Levels & Measuring Tools
- Level Measuring Tools
Klein Tools - 935DAG - Related Products
- 935DAGL - Digital Level with Programmable Angles
- 93LDM100C - Compact Laser Distance Measure
- 9225 - Tape Measure, 25-Foot Magnetic Double-Hook
- 935RB - Torpedo Billet Level, Rare-Earth Magnet
- 93LCLS - Laser Level, Self-Leveling Red Cross-Line Level and Red Plumb Spot
Klein Tools - 935DAG - Accessories
- 69346 - Plumbers Kit for Cat. No. 935DAGL
- 5139L - Zipper Bag, Top-Grain Leather Tool Pouch, 12-1/2-Inch
- 5139PAD - Zipper Bag, Cordura Nylon Tool Pouch with Padding, 12-1/2-Inch
Klein Tools - 935DAG - Specifications
| Type | Digital Level |
|---|---|
| Application | Measure or Set Angles, Check Relative Angles, or Use as a Digital Level |
| Special Features | V-grooves Around Entire Perimeter, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast |
| Material | ABS Plastic Housing and Electronic Components |
| Magnet Type | Permanent Rare Earth |
| Accuracy | +/- 0.1° from 0° to 1°, 89° to 91°, 179° to 180°; +/- 0.2° at All Other Angles |
| Drop Protection | 6.6' (2 m) |
| Ingress Protection | IP42: Water and Dust Resistant |
| Low Battery Indicator | Yes |
| Batteries | 2 x 1.5 AAA |
| Included | Soft Carrying Case, Instruction Manual, Batteries |
| Overall Length | 2.36'' (6 cm) |
| Overall Height | 2.2'' (5.6 cm) |
| Overall Width | 1.2'' (3 cm) |
| Weight | 3.5 oz (99.2 g) |
| UPC | 092644692376 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Read, understand, and follow instructions to ensure safe operation Always wear approved eye protection See instruction manual for additional warnings |
Klein Tools - 935DAG - Videos
| Klein Tools 935DAG Video | Click to View |
|---|
