Klein Tools CL220 | Digital Clamp Meter, AC Auto-Ranging 400 Amp wi...
Regular price
$86.99
Unit price
Brand: Klein Tools
|
SKU:
CL220
Regular price
$86.99
Unit price
Description
Description

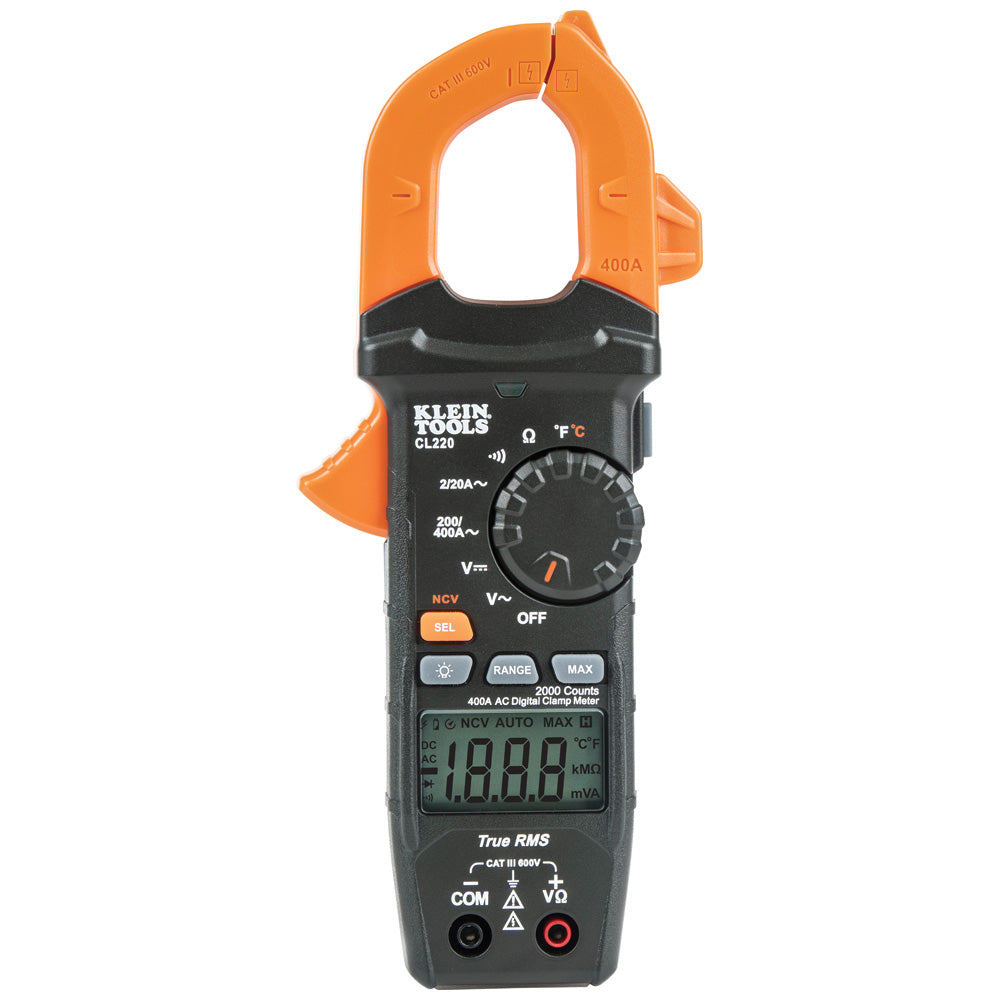

Klein Tools CL220 | Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
Specifications
Specifications
Klein Tools - CL220 - Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
Klein Tools - CL220 - Product Categories
- Test & Measurement
- Clamp Meters
Klein Tools - CL220 - Specifications
| Type: | Auto Ranging TRMS Clamp with Temperature |
|---|---|
| Application: | Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple |
| Special Features: | Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature |
| Material: | ABS/Electronics |
| Batteries: | 3 x AAA |
| Auto-Power Off: | Yes |
| Jaw Size: | 1.6'' (4.1 cm) |
| Drop Protection: | 6.6' (2 m) |
| Display: | 2000 Count Backlit LCD |
| Functions: | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature |
| Voltage: | 600 V AC/DC |
| Current: | 400 A AC |
| Ohms (Resistance): | 20 M? |
| AC Voltage: | 600 V |
| DC Voltage: | 600 V |
| DC Polarity Indicator: | Yes |
| Temperature Range: | -40° - 1832°F (-40° - 1000°C) |
| Standard: | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |

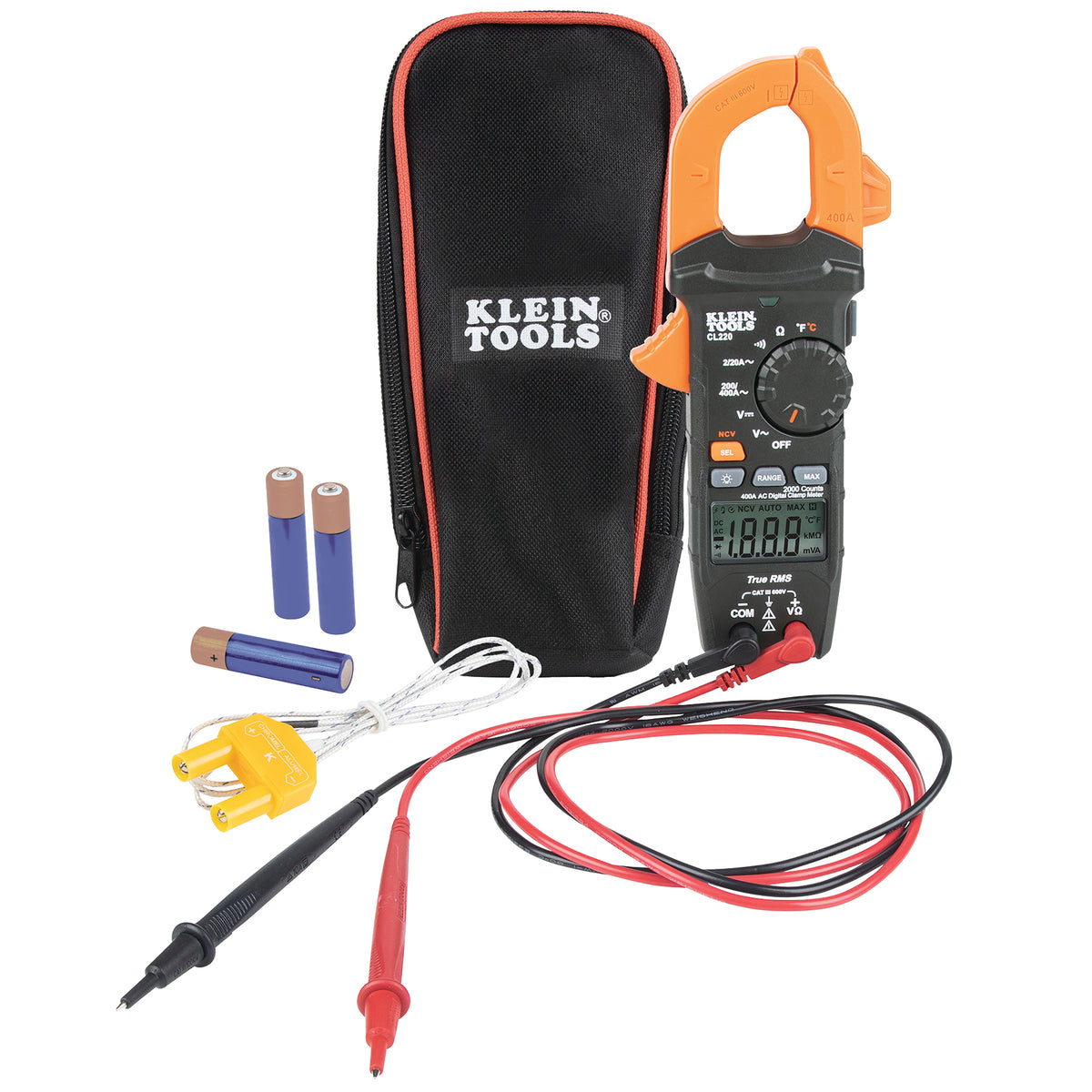

| Included: | Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| Overall Length: | 8.45'' (21.5 cm) |
| Overall Height: | 1.5'' (3.8 cm) |
| Overall Width: | 3.5'' (8.9 cm) |
| Weight: | 11 oz (314 g) |
| UPC: | 92644692857 |
