Klein Tools CL320KIT | HVAC Electrical Test Kit
Regular price
$161.69
Unit price
Brand: Klein Tools
|
SKU:
CL320KIT
Regular price
$161.69
Unit price
Description
Description
Klein Tools CL320KIT | HVAC Electrical Test Kit

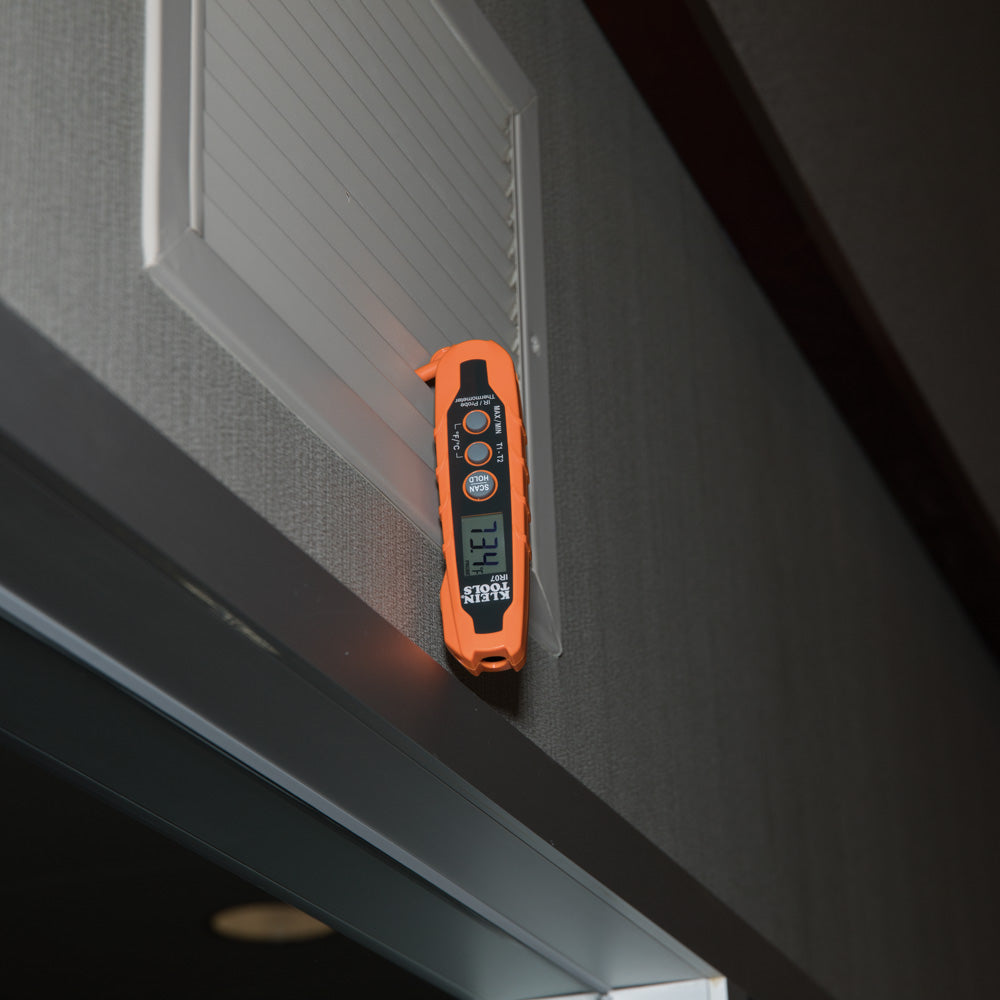

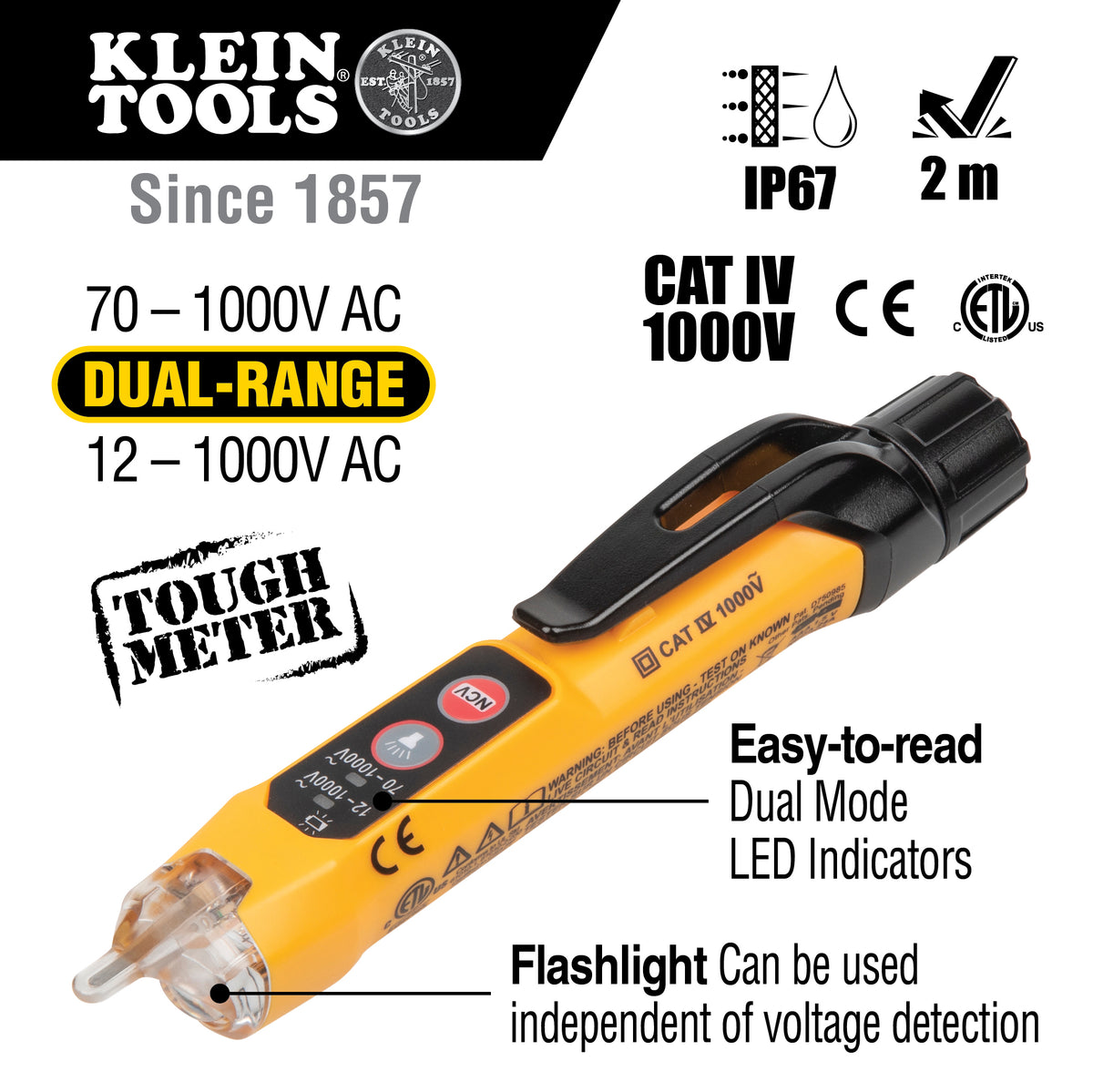

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple, and all batteries.
Specifications
Specifications
Klein Tools - CL320KIT - Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
Klein Tools - CL320KIT - Product Categories
- Test & Measurement
- Electrical Testers
Klein Tools - CL320KIT - Specifications
| Type: | HVAC Testers |
|---|---|
| Application: | HVAC Electrical and Temperature Testing |
| Special Features: | Cat. No. CL320: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology; CAT. No. NCVT3P: NCVT with flashlight; Cat.No. IR07 Both IR and Probe Temperature |
| Material: | ABS/Electronics |
| Batteries: | 7 x AAA |
| Auto-Power Off: | Yes |
| Jaw Size: | 1.6'' (4.1 cm) |
| Drop Protection: | 6.6' (2 m) |
| Display: | 4000 Count Backlit LCD |
| Functions: | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature |
| Voltage: | Cat. No. CL320: 600V AC/DC; Cat. No. NCVT3P: 1000V AC |
| Frequency: | 10 Hz to1 MHz |
| Current: | 400 A AC |
| Capacitance: | 4000 µF |
| Ohms (Resistance): | 40MO |
| AC Voltage: | 600V |
| DC Voltage: | 600V |
| DC Polarity Indicator: | Yes |
| DC Micro-Amp: | 200 ?A |
| Temperature Range: | -40° to 1832°F (-40° to 1000°C) |
| Standard: | Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000 |

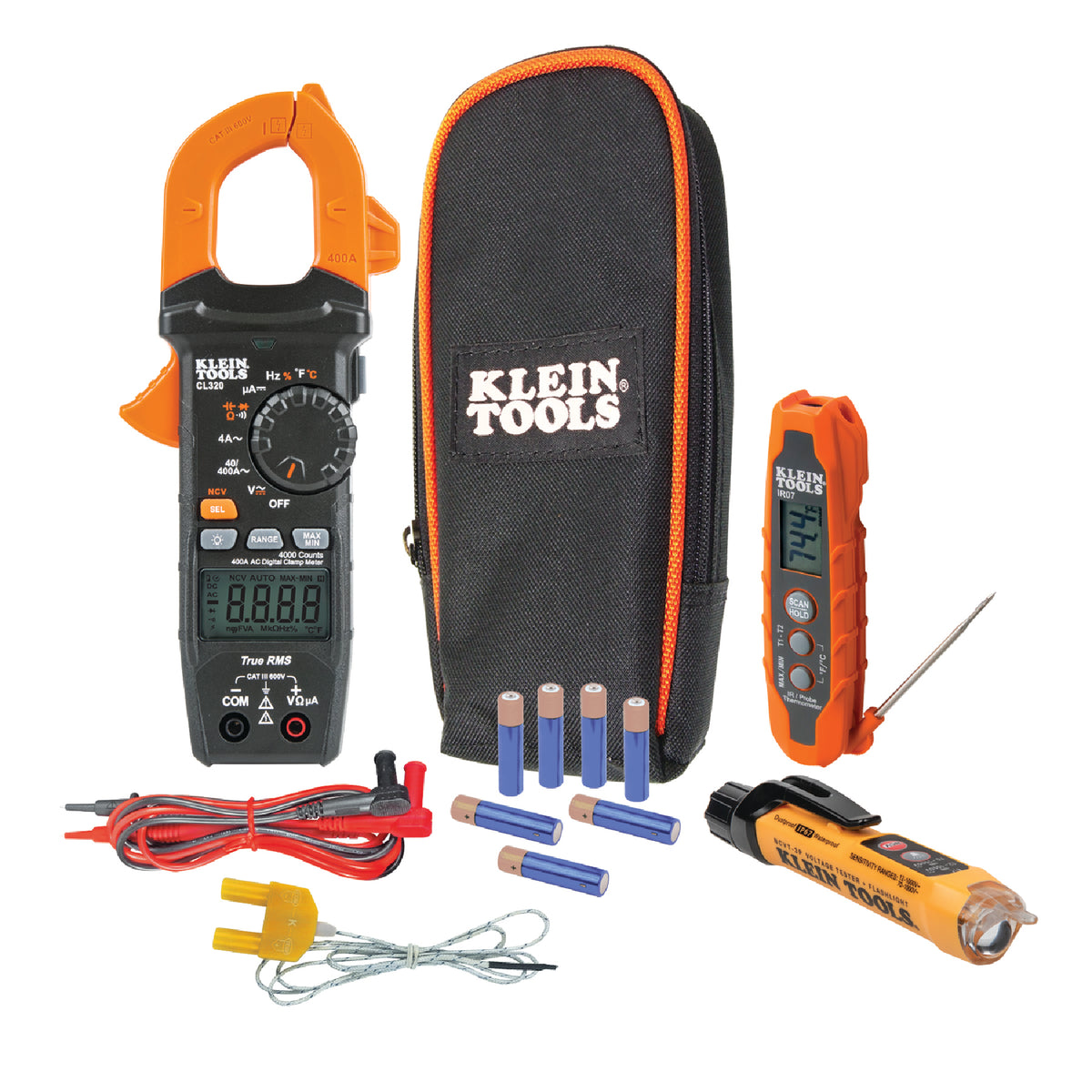

| Included: | CL320 Digital Clamp Meter with Test Leads and Thermocouple; IR07 Dual IR and Probe Thermometer; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; Carrying Pouch; Instructions; and All Required Batteries |
| Overall Length: | 8.45'' (21.5 cm) |
| Overall Height: | 1.5'' (3.8 cm) |
| Overall Width: | 3.5'' (8.9 cm) |
| Weight: | 1.575 lb (0.7 kg) |
| UPC: | 92644693496 |
