Klein Tools CL445 | HVAC Clamp Meter
Regular price
$127.03
Unit price
Brand: Klein Tools
|
SKU:
CL445
Regular price
$127.03
Unit price
Description
Description

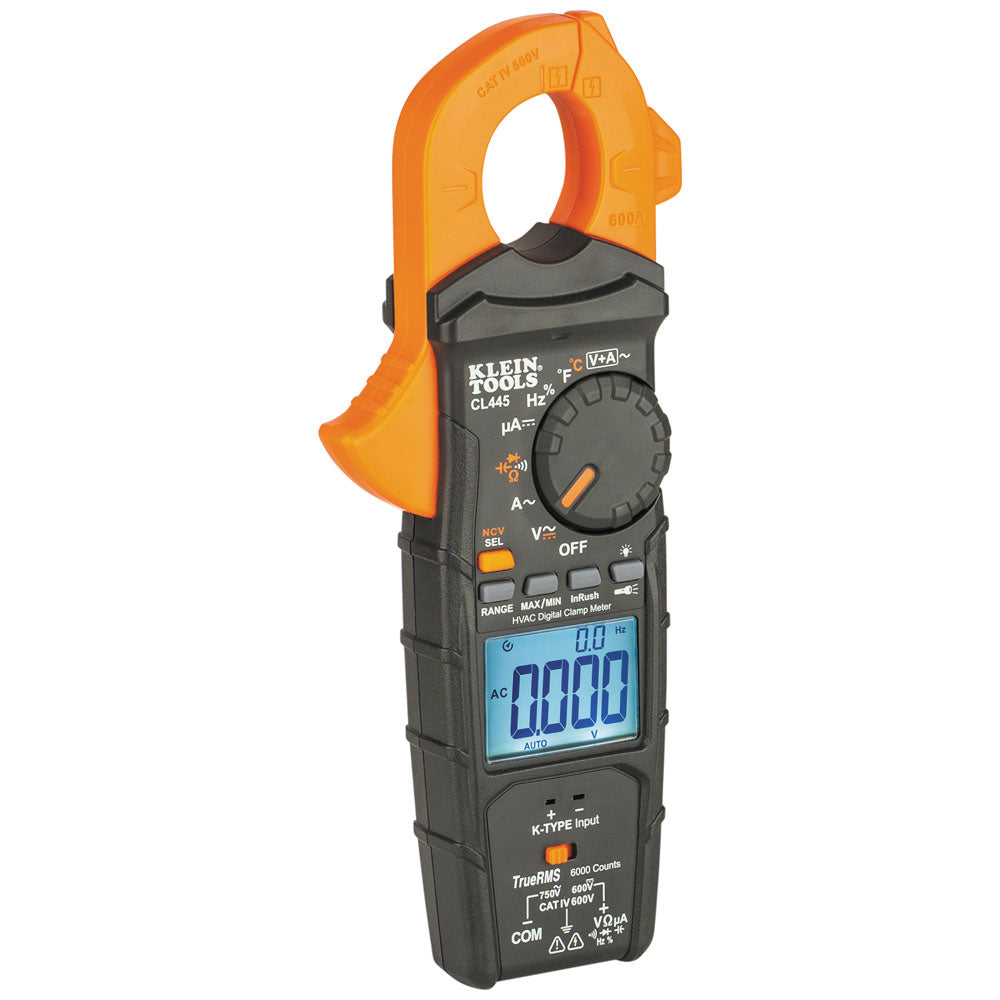

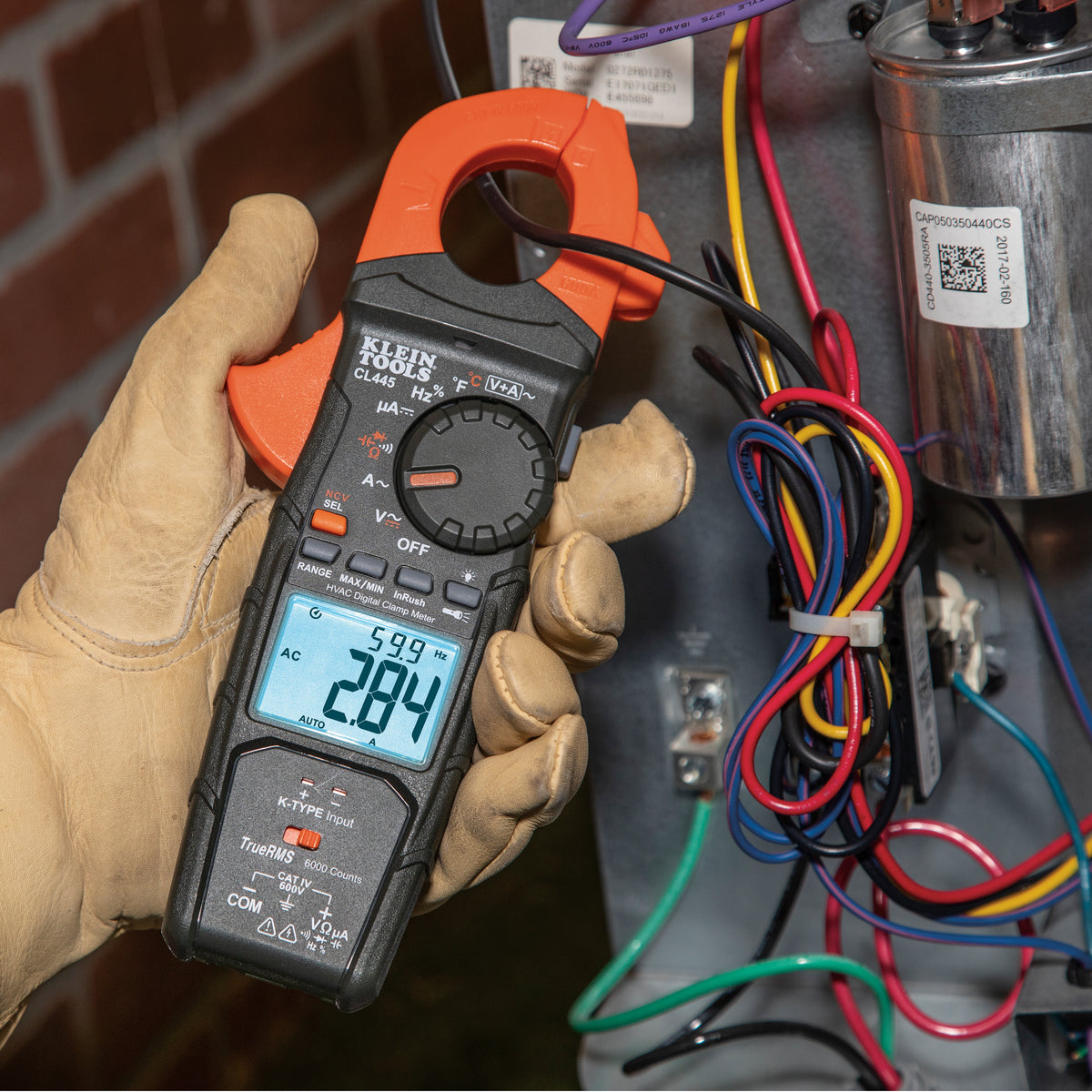

Klein Tools CL445 | HVAC Clamp Meter

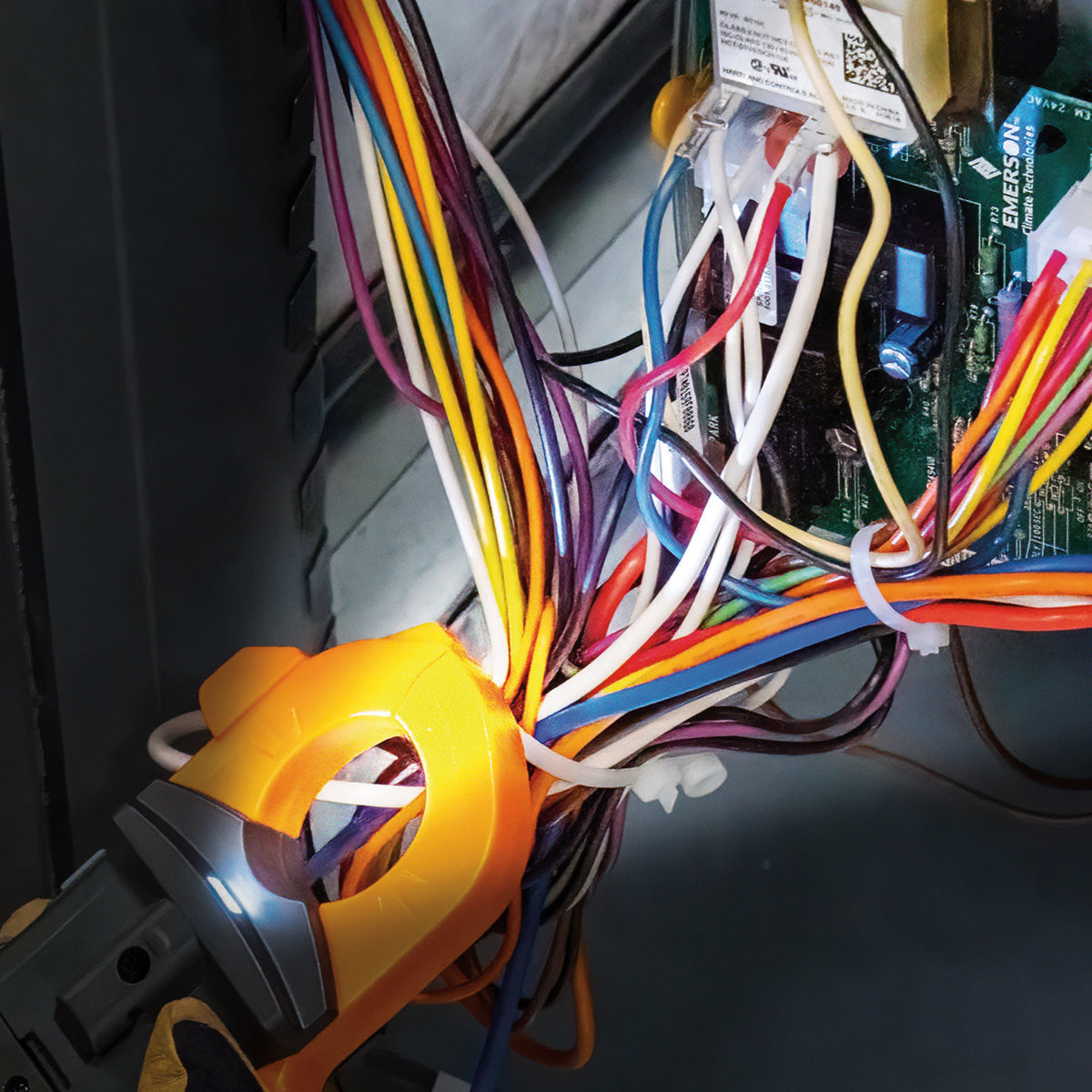

Klein Tools CL445 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter can simultaneously measure current and voltage, has a built-in worklight and comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.
Specifications
Specifications
Klein Tools - CL445 - Warnings
- Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
Klein Tools - CL445 - Product Categories
- Test & Measurement
- Clamp Meters
Klein Tools - CL445 - Specifications
| Type: | HVAC TRMS Clamp Meter |
|---|---|
| Application: | Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More |
| Special Features: | Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; V + A Simultaneously Displayed; Built-in Worklight |
| Material: | ABS/Electronics |
| Batteries: | 3 x AAA |
| Auto-Power Off: | Yes |
| Jaw Size: | 1.25'' (3.2 cm) |
| Drop Protection: | 6.6' (2 m) |
| Display: | 6000 Count LCD |
| Functions: | TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, AC Voltage + AC Amperage, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability |
| Voltage: | 750V AC; 600V DC |
| Frequency: | 60 kHz |
| Current: | 600A |
| Capacitance: | 6.000mF |
| Ohms (Resistance): | 60M? |
| AC Voltage: | 750V |
| DC Voltage: | 600V |
| DC Polarity Indicator: | Yes |
| DC Micro-Amp: | 600µA |
| Temperature Range: | -148° to 1832°F (-100° to 1000°C) |
| Standard: | CAT IV 600V, CAT III 750V, Class 2, Double Insulation Safety Rating |

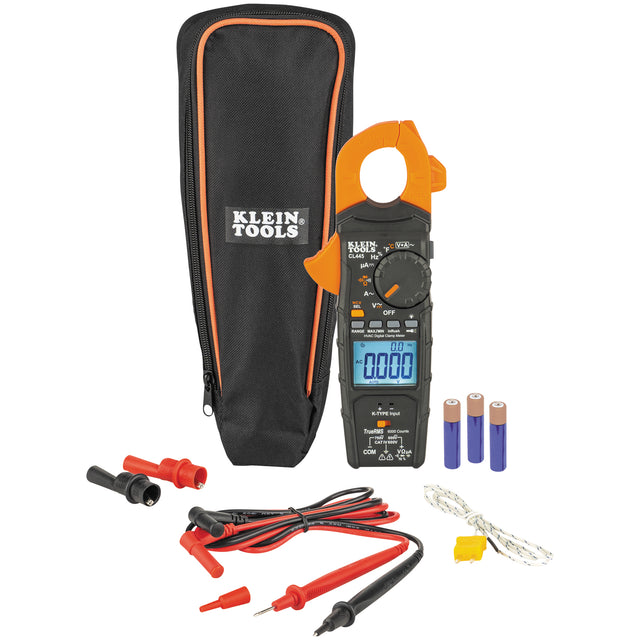

| Included: | Clamp Meter; Right-Angle Input Test Leads; Push-On Alligator Clips; K-Type Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries |
| Overall Length: | 9.24'' (23.5 cm) |
| Overall Height: | 1.59'' (4 cm) |
| Overall Width: | 3.77'' (9.6 cm) |
| Weight: | 12.5 oz (355 g) |
| UPC: | 92644693786 |
