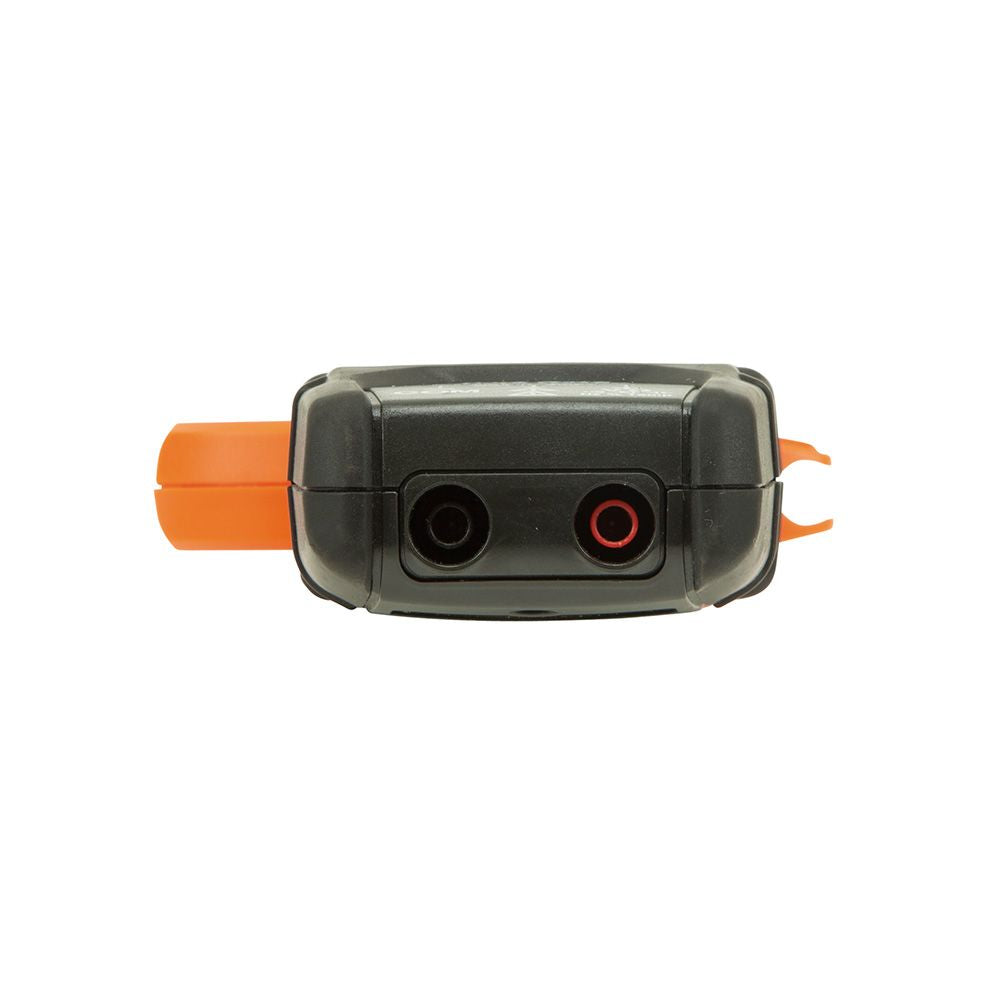

Klein Tools CL700 | Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Klein Tools CL700 | Digital Clamp Meter, AC Auto-Ranging TRMS, Low ...
Description
Description
Klein Tools CL700 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.
Klein Tools - CL700 - Features
- Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
- Electronic Tester's clamp measures AC current and its thermocouple probe measures temperature
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-Foot (2 m) drop
- Low battery indicator and easily accessible battery compartment

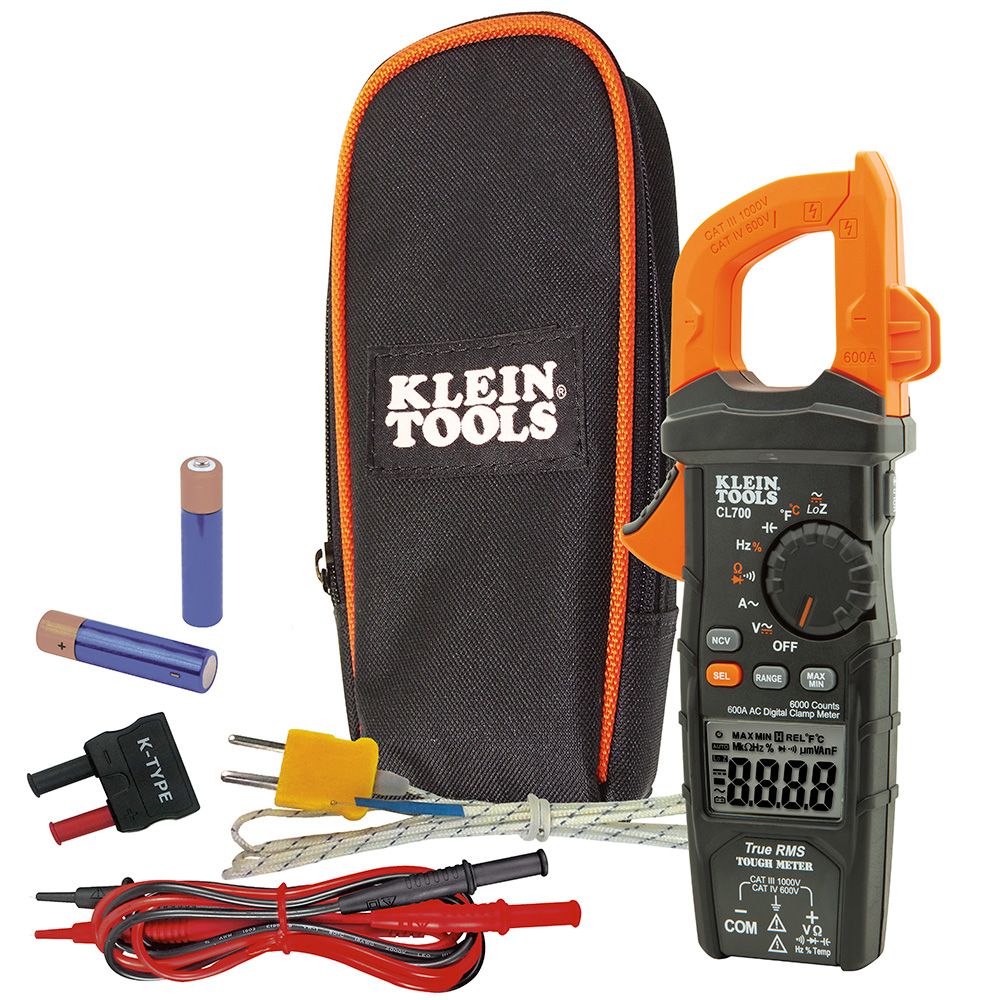

- Includes a carrying pouch, test leads, thermocouple with adapter and batteries
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
- Operating altitude to 6562-Foot (2000 m)
Specifications
Specifications
Klein Tools - CL700 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Test Equipment
- Power Test Equipment
- Test & Measurement
- Clamp Meters
Klein Tools - CL700 - Replacement Parts
- 69028 - Replacement Thermocouple
- 69401 - Multimeter Carrying Case
Klein Tools - CL700 - Specifications
| Application | Measures AC Current |
|---|---|
| Special Features | Features Low Battery Indicator |
| Batteries | 2 x AAA |
| Jaw Size | 1.38'' (3.5 cm) |
| Drop Protection | 6.6' (2 m) |
| Display | 6000 Count LCD |
| Functions | Clamp measures AC current and thermocouple probe measures temperature. Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes |
| Voltage | 1000V AC; 1000V DC |
| Ohms (Resistance) | 60MO |
| Temperature Range | -14° - 1000°F (-26° - 538°C) |
| Ingress Protection | IP40 |
| Standard | CAT IV 600V; CE Certified |
| Included | Carrying Case, Test Leads, Thermocouple with Adapter, and Batteries |
| Overall Length | 9.09'' (23.1 cm) |
| Frequency | 1Hz - 500 KHz |
| Current | 600A |
| Capacitance | 6000µF |
| Overall Height | 1.55'' (3.9 cm) |
| Overall Width | 3.81'' (9.7 cm) |
| Weight | 11.8 oz (335 g) |
| UPC | 092644690150 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Do Not attempt to measure resistance or continuity on live circuits. Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use. Do Not use the meter during electrical storms or in wet weather, and do Not use the meter or test leads if they appear to be damaged. Before each use verify meter operation by measuring a known voltage or current. |
Klein Tools - CL700 - Videos
| Klein Tools CL700 Video | Click to View |
|---|
