Brand: Klein Tools
|
SKU:
10015937
Klein Tools CL900 | Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp
Regular price
$222.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Klein Tools CL900 | Digital Clamp Meter, AC Auto-Range TRMS, Low Im...
Regular price
$222.67
Unit price
Brand: Klein Tools
|
SKU:
10015937
Regular price
$222.67
Unit price
Shipping calculated at checkout.
Description
Description

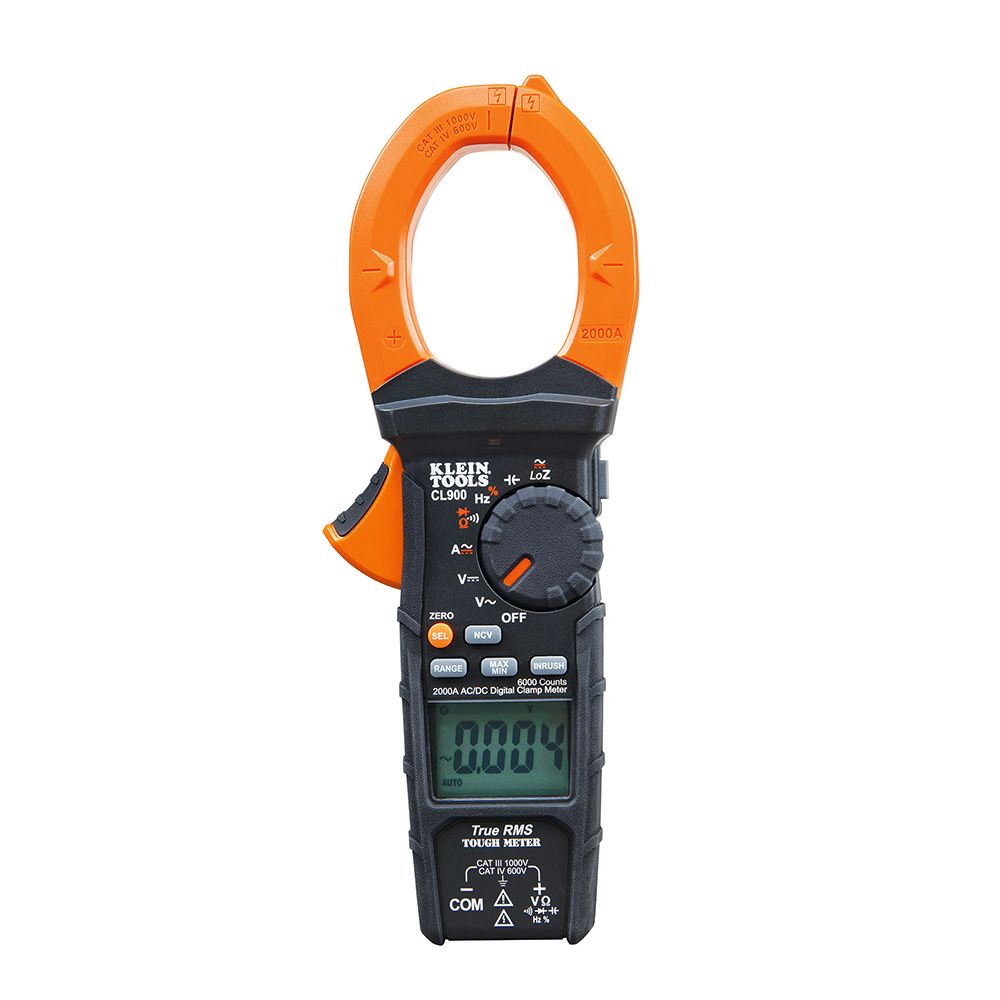

Klein Tools CL900 | Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp
The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.
Klein Tools - CL900 - Features
- Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
- Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
- Backlit display for clear visibility in environments with low ambient lighting
- Dedicated mode for capturing Inrush Current
- Non-contact voltage tester integrated into the clamp
- Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
- Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
- Clamp measures AC and DC current
- Powers off automatically after 30 minutes of non-use to conserve battery life
- Low battery indicator and easily accessible battery compartment

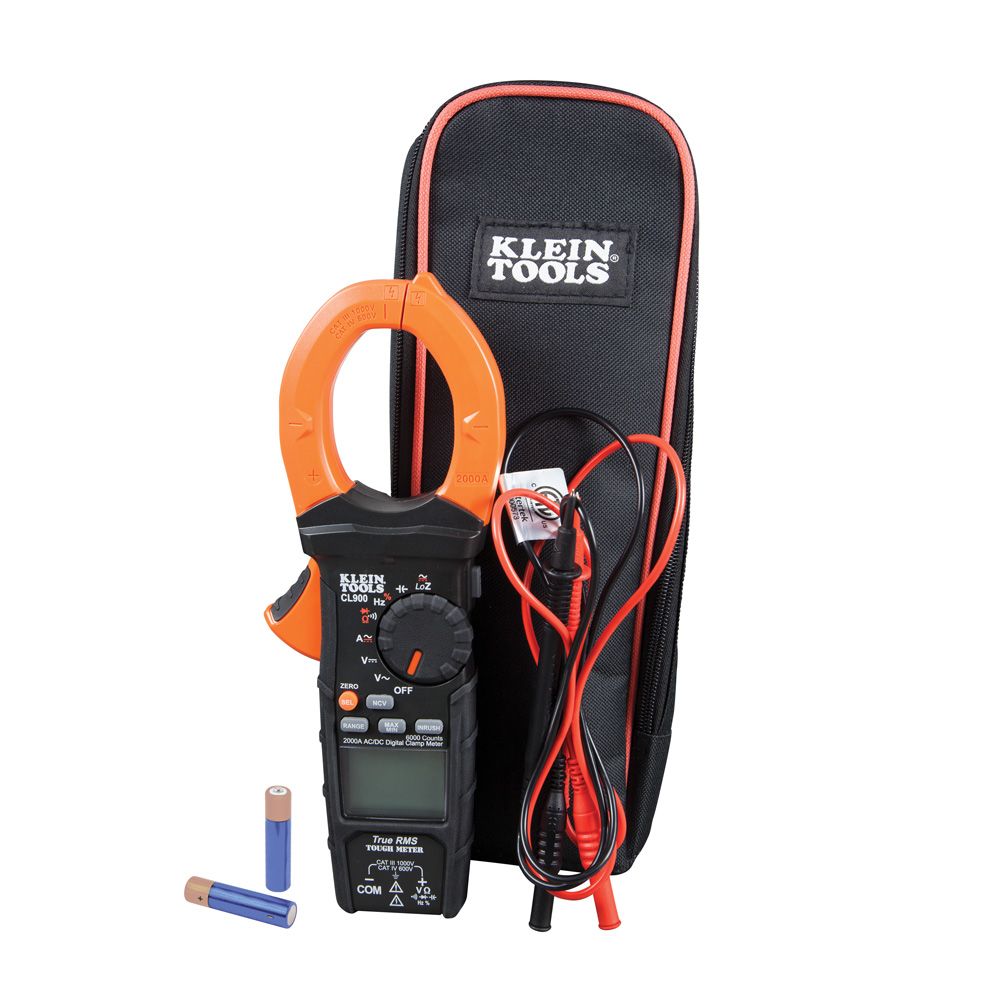

- Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
- Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
Specifications
Specifications
Klein Tools - CL900 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Test Equipment
- Power Test Equipment
- Test & Measurement
- Clamp Meters
Klein Tools - CL900 - Related Products

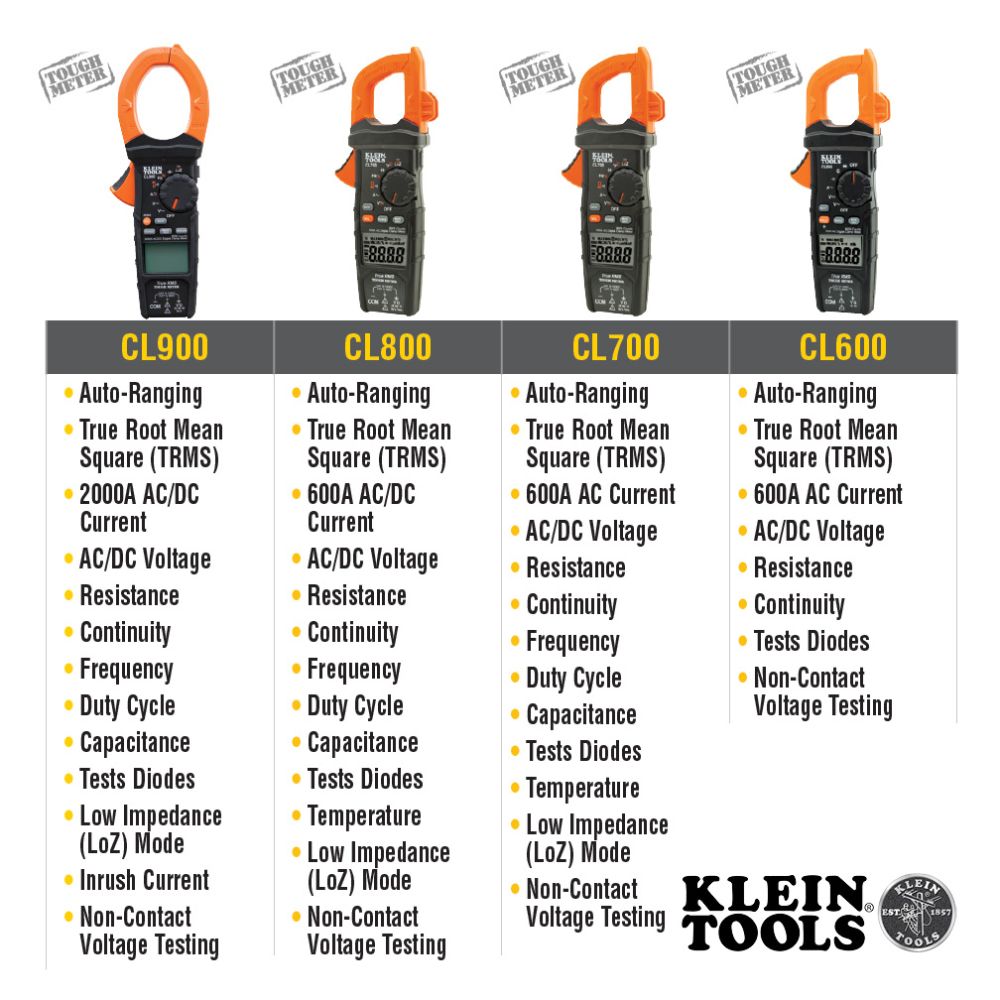

- CL120 - Digital Clamp Meter, AC Auto-Ranging 400 Amp
- CL320 - HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp
- CL220 - Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
- CL600 - Digital Clamp Meter, True RMS, AC Auto-Ranging, 600 Amps
- CL700 - Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode
Klein Tools - CL900 - Accessories
- 69417 - Rare-Earth Magnetic Hanger, with Strap
Klein Tools - CL900 - Replacement Parts
- 69401 - Multimeter Carrying Case
- 69409 - Line Splitter 10x
Klein Tools - CL900 - Specifications
| Type | Clamp Meter |
|---|---|
| Application | Measures Current to 2000A AC/DC |
| Special Features | Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester |
| Material | Plastic/Electronics |
| Batteries | 2 x AAA |
| Auto-Power Off | Yes |
| Jaw Size | 2'' (5 cm) |
| Drop Protection | 6.6' (2 m) |
| Ohms (Resistance) | 60M? |
| AC Voltage | 1000 |
| DC Voltage | 1000 |
| DC Polarity Indicator | Yes |
| DC Micro-Amp | No |
| Ingress Protection | IP40 |
| Display | 6000 Count LCD |
| Functions | Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance |
| Voltage | 1000V AC/DC |
| Frequency | 500kHz |
| Current | 2000A AC/DC |
| Capacitance | 6000µF |
| Standard | CAT IV 600V, CAT III 1000V |
| Included | Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries |
| Overall Length | 10.39'' (26.4 cm) |
| Overall Height | 1.70'' (4.3 cm) |
| Overall Width | 3.90'' (9.9 cm) |
| Weight | 17.6 oz (499 g) |
| UPC | 092644692352 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use Before each use, verify meter operation by measuring a known voltage or current Never use the meter on a circuit with voltages that exceed the category based rating of this meter Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed |
Klein Tools - CL900 - Videos
| Klein Tools CL900 Video | Click to View |
|---|
