Klein Tools ET450 | Advanced Circuit Tracer Kit
Description
Description

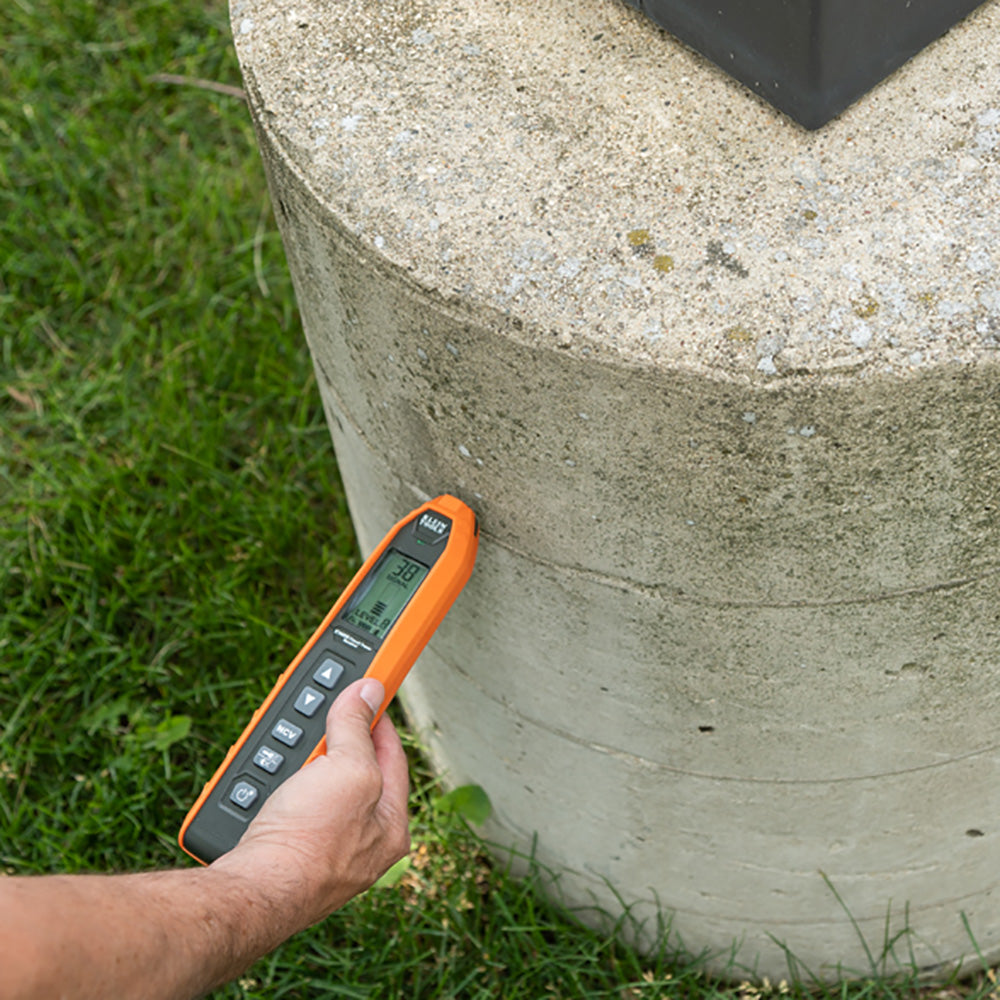

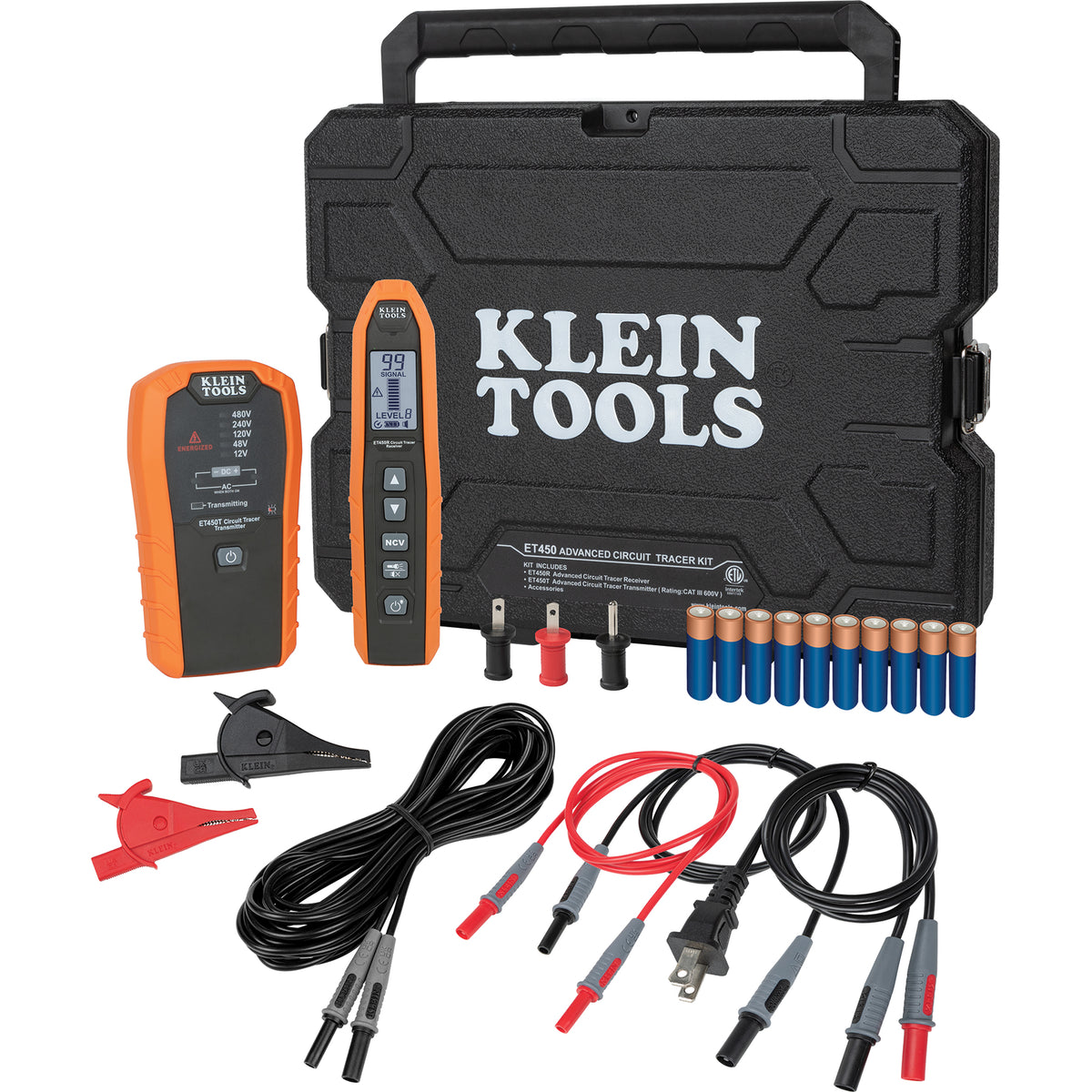

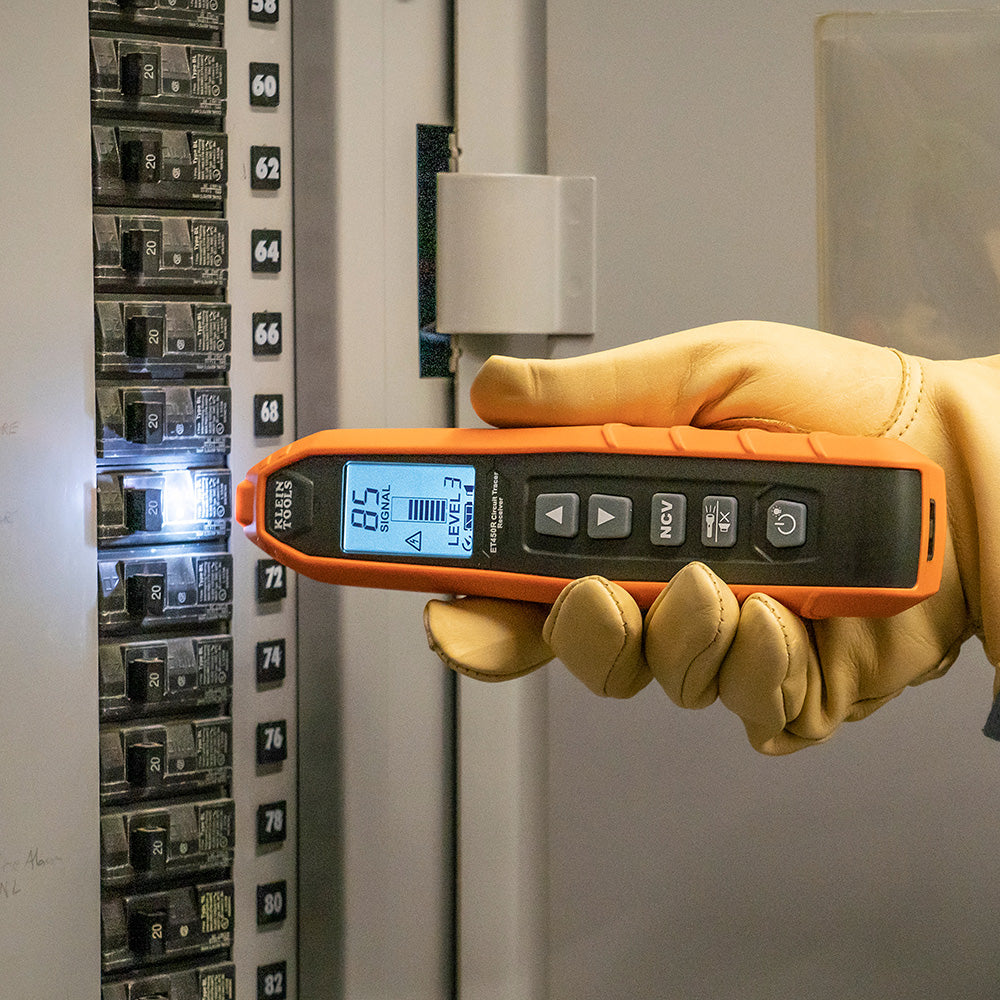

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver’s sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.
Specifications
Specifications
Klein Tools - ET450 - Warnings
- Read, understand, and follow all warnings and instructions before operating testers.
- Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
- DO NOT use if the tester appears damaged in any way.
Klein Tools - ET450 - Product Categories
- Test & Measurement
- Electrical Testers
Klein Tools - ET450 - Specifications
| Type: | Circuit Tracer |
|---|---|
| Application: | Trace Energized and Non-Energized Breakers, Fuses, and Wires |
| Special Features: | Flashlight and NCV Function on Receiver; Accessories, and Hard Case |
| Material: | ABS and Electronic Components |
| Batteries: | Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline |
| Battery Life: | Up to 24 hr |
| Drop Protection: | 6' (2 m) |
| Display: | Receiver: LCD with Backlight |
| Control Type: | Transmitter and Receiver |
| Voltage: | External Indicators for 12V, 48V, 120V, 240V, and 480V |
| Frequency: | Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz |
| Ingress Protection: | IP42 |
| Pollution Degree: | 2 |
| Tests Continuity: | No |
| Integral Lead Storage: | No |
| Interchangeable Leads: | Yes |
| Lead Length: | 3' (1 m) and 20' (6.1 m) |
| Standard: | CAT III 600V |
| Case Included: | Yes |
| Included: | Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3' and 20' Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case |
| Overall Length: | Receiver: 7.05'' (17.9 cm); Transmitter: 8.72'' (22.2 cm) |
| Overall Height: | Receiver: 1.84'' (4.5 cm); Transmitter: 1.51'' (3.9 cm) |
| Overall Width: | Receiver: 3.90'' (9.9 cm); Transmitter: 2.07'' (5.3 cm) |
| Weight: | Transmitter: 16.5 oz (470 g); Receiver: 11 oz (312 g) |
| UPC: | 92644693380 |
