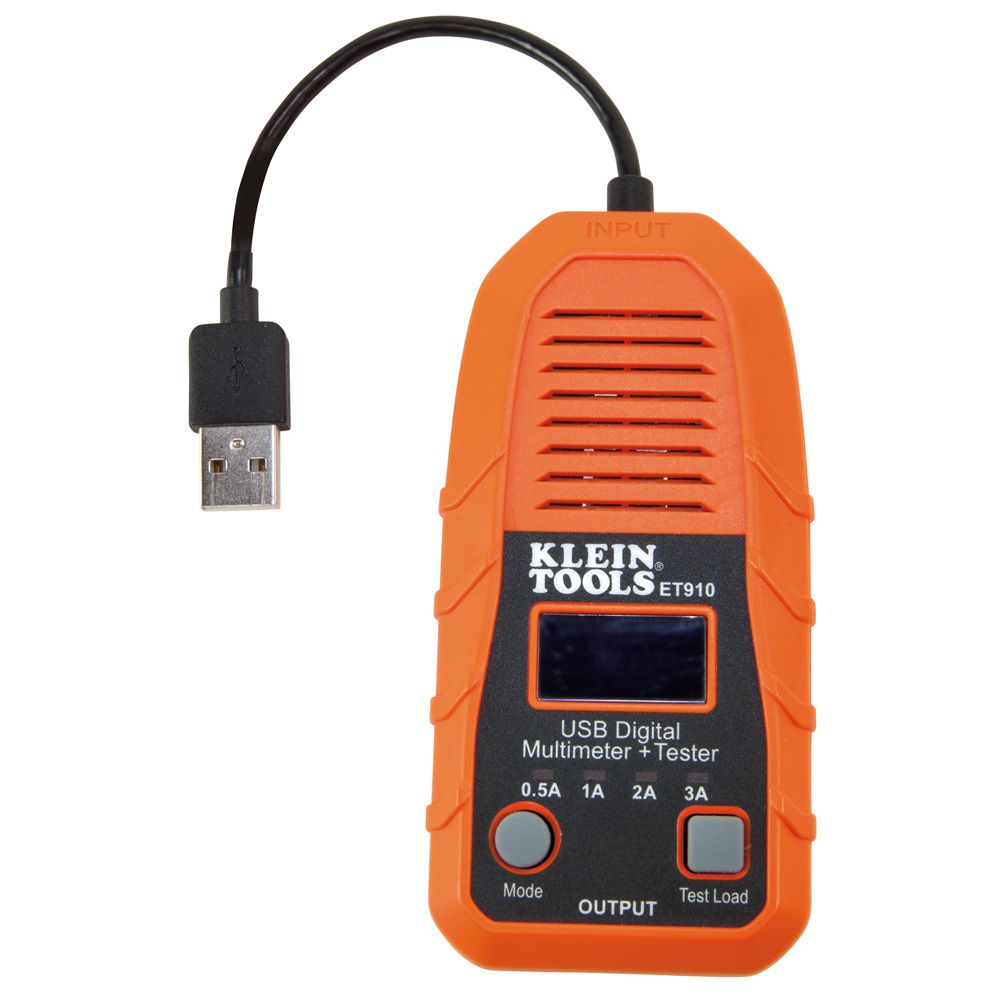

Klein Tools ET910 | USB Digital Meter and Tester, USB-A (Type A)
Description
Description
The Klein Tools ET910 is a USB digital meter and tester combination for most common USB-A ports, including Qualcomm Quick Charge ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can also test the maximum current delivery capability of the USB port with built-in fixed loads so user need not connect to an external load. It will function with any USB-A port that has the ability to deliver power. It requires NO batteries as it draws power from the power source to function.
Klein Tools - ET910 - Features
- 3 to 20V DC; Current: 0.05 to 3A (monitoring mode)
- Built-in test loads of 0.5A, 1A, 2A, and 3A; no external test load required
- Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
- Tests most common standard USB-A ports, including Qualcomm Quick Charge ports
- Store and recall up to 10 readings
- Voltage and current overload detection
- Hi-resolution LCD for clear visibility in environments with low ambient lighting
- Durable cable to allow easy access to hard-to-reach ports
- Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
- Built to withstand a 6.6-Foot (2m) drop
- No batteries needed; powered by the USB port being tested
Specifications
Specifications
Klein Tools - ET910 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Test Equipment
- Power Test Equipment
- Test & Measurement
- Specialty Testers
- USB Digital Meters
Klein Tools - ET910 - Specifications
| Type | USB-A (Type A) |
|---|---|
| Application | USB Port Voltage, Current, Capacity, Energy, Resistance (Calculated), Max Current |
| Special Features | Current Test Loads: 0.5A, 1A, 2A, 3A |
| Voltage | 3 to 20V DC |
| Current | 0.05 to 3A |
| Capacity Used | 99,999mAh Maximum |
| Energy Delivered | 999Wh Maximum |
| Resistance | 400 ohms Maximum |
| Drop Protection | 2 m (6.6') |
| Ingress Protection | IP20 |
| Display | LCD |
| Material | Polymer |
| Overall Length | 4.31'' (11 cm) |
| Overall Height | 0.98'' (2.5 cm) |
| Elapsed Time | Up to 999 Hours, 59 Min, 59 Secs |
| USB Compatibility | USB-A; Qualcomm Quick Charge Compatible |
| Overall Width | 2.15'' (5.5 cm) |
| Weight | 2.80 oz (79.4 g) |
| UPC | 092644691393 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | To ensure safe operation and service of this meter, follow all instructions. Failure to observe warnings can result in severe injury or death. This meter will Not display current below 50 milliamperes, even if it is allowing this to pass through. NotE: The display will show zero current. Do Not use with ports that operate outside of the rated voltage and current. NEVER use on a circuit with voltage or current that exceeds the maximums specified for this device. Do Not use during electrical storms or in wet weather. Do Not use if meter appears damaged. Use caution when working with voltages above 25V RMS or 24V DC. Such voltages pose a shock hazard. |
Klein Tools - ET910 - Videos
| Klein Tools ET910 Video | Click to View |
|---|
