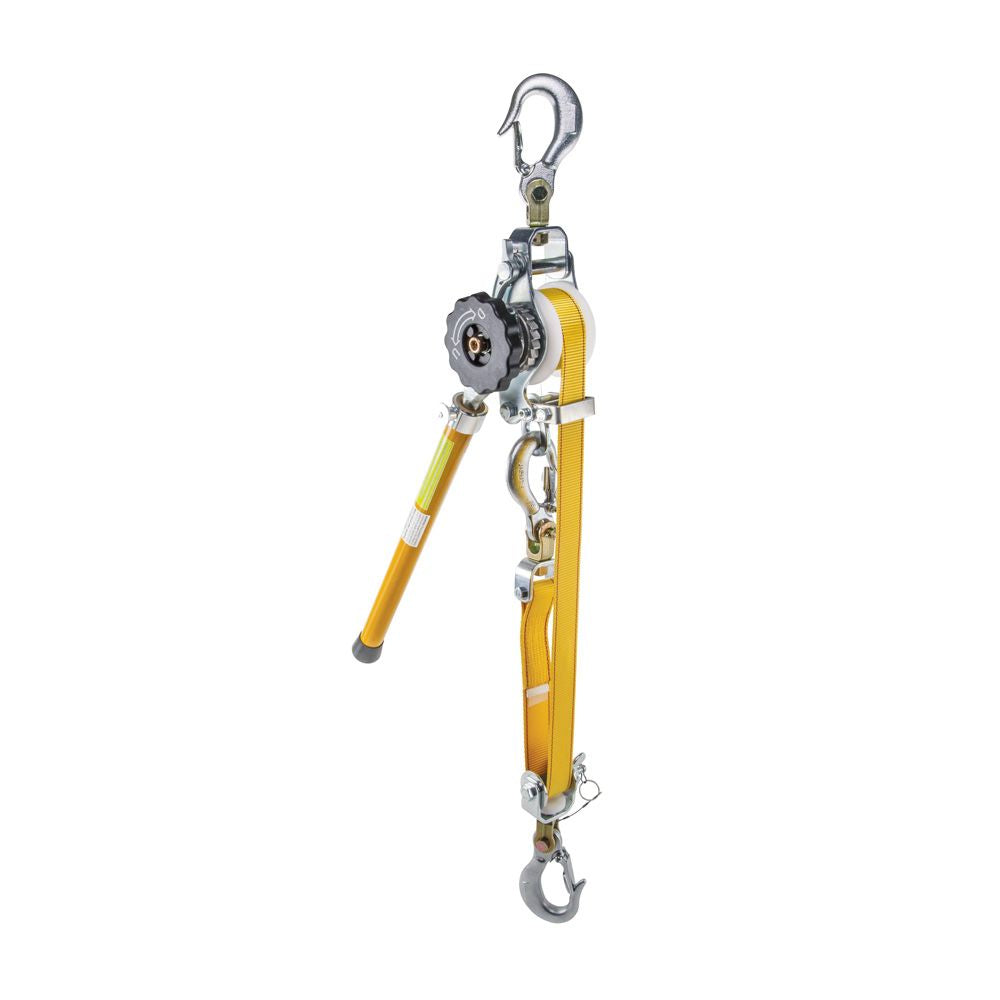

Klein Tools KN1600PEX | Web-Strap Hoist Deluxe with Removable Handle
Regular price
$750.06
Unit price
Brand: Klein Tools
|
SKU:
10015263
Regular price
$750.06
Unit price
Description
Description
Klein Tools KN1600PEX | Web-Strap Hoist Deluxe with Removable Handle
The Web Strap Hoist Deluxe has new features to make work easy and efficient. The handle can be removed for less obstruction when working near the hoist and less storage space needed. The deep V-notch in the hook latches for secure closure. Tighter ratcheting mechanism means less work, less fatigue. The handle and non-conductive drum knob allow you to safely control the tension release to avoid free wheeling. 360 degree handle rotation easily works from any angle for added flexibility on the job.
Klein Tools - KN1600PEX - Features

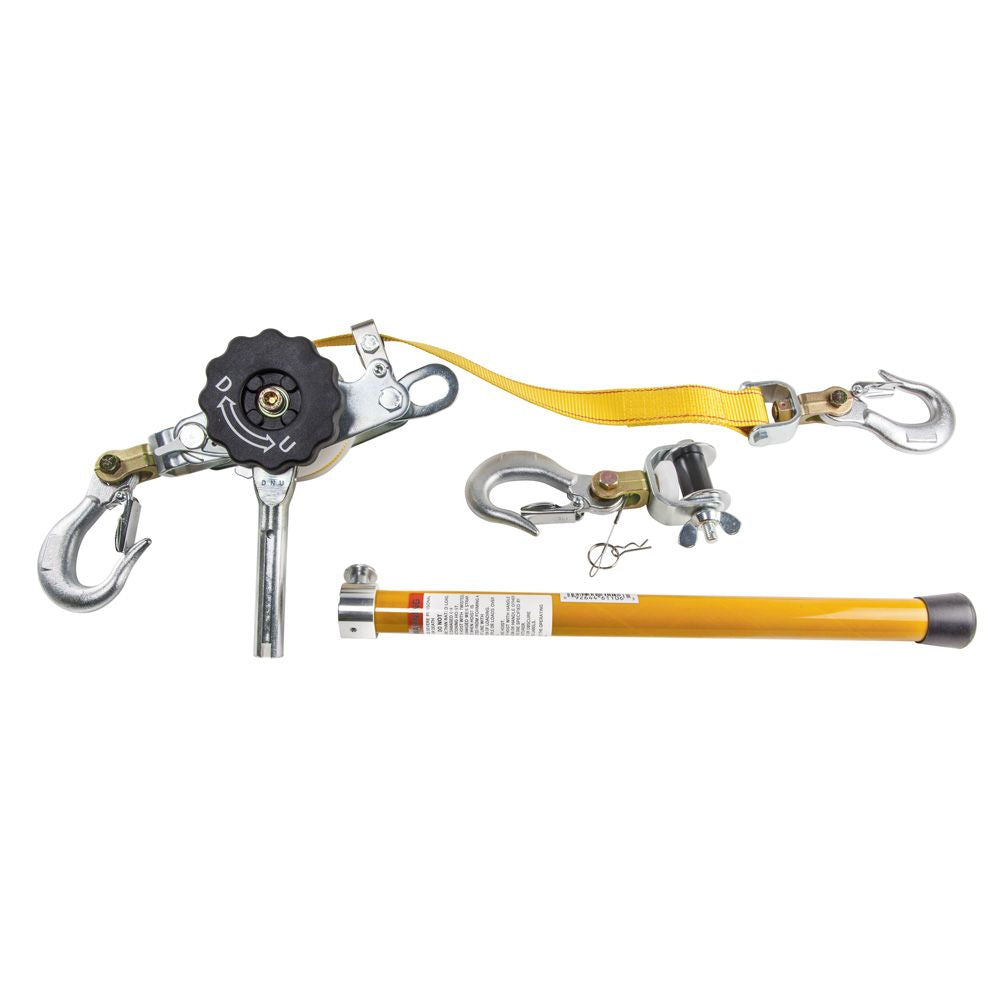

- Removable handle for less obstruction when working near the hoist; requires less space for storage

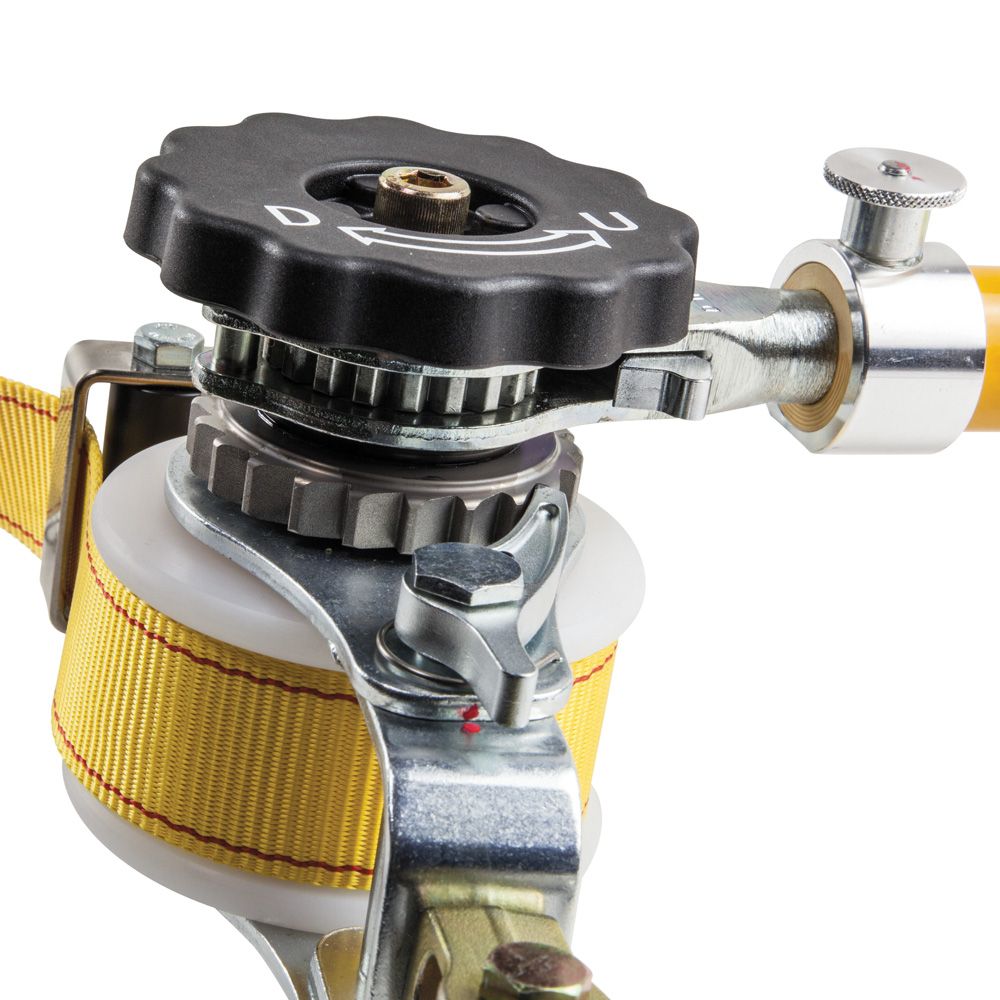

- Tight ratcheting for less work and less fatigue
- Deep V-notch in hook reduces lateral movement
- Controlled tension release for safety
- 3/4 ton single line and 1-1/2 ton double line load rating
- 360 degree handle rotation easily works from any angle

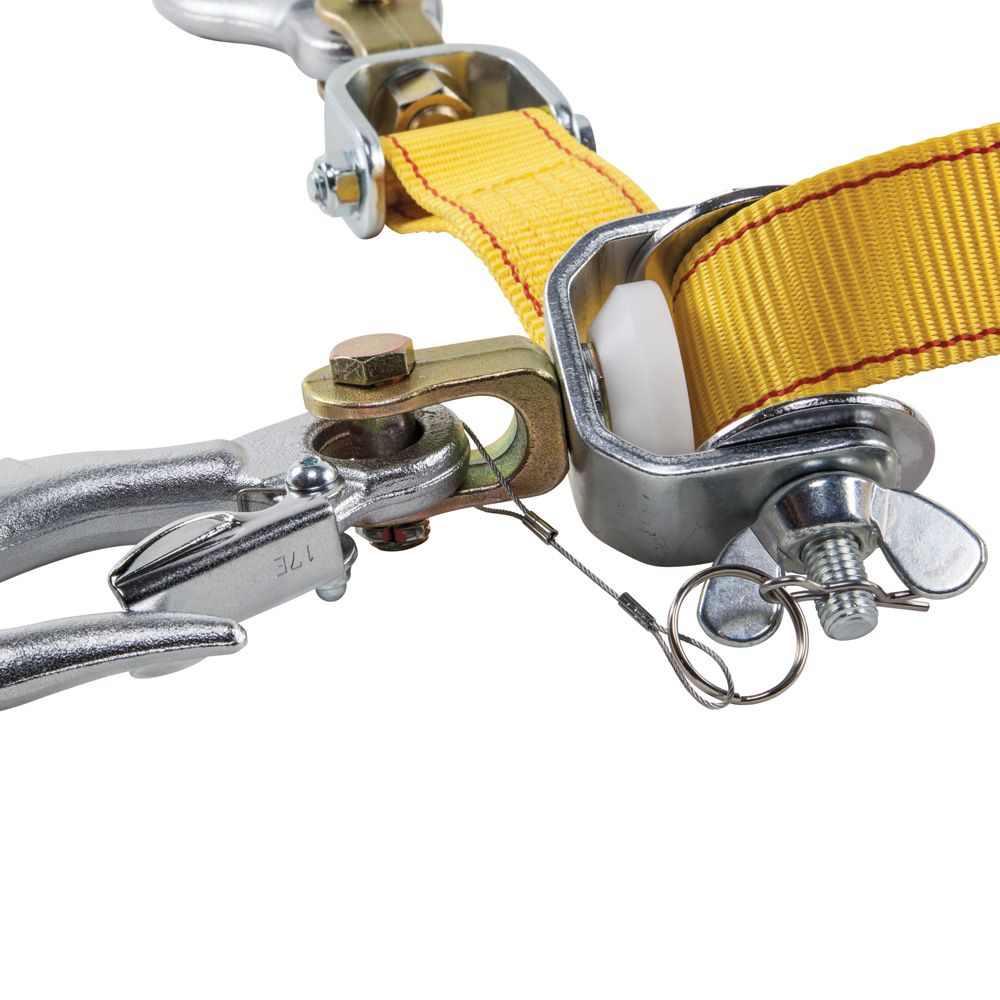

- Wing nut and cotter pin assembly for easy removal of the floating hook
- Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
Specifications
Specifications
Klein Tools - KN1600PEX - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Hand Tools
- Wire Pulling Grips
- Hoists
Klein Tools - KN1600PEX - Specifications
| Type | Hoists |
|---|---|
| Application | Lifting |
| Special Features | Removable Handle; Deep V-Notch in the Hook; Tight Ratcheting Mechanism; Non-Conductive Drum Knob; 360 Degree Handle Rotation |
| Overall Length | 33'' (83.8 cm) |
| Overall Height | 5'' (12.7 cm) |
| Overall Width | 4'' (10.2 cm) |
| Single Line Pulling Distance | 20'' to 138'' (50.5 to 350.5 cm) |
| Single Line Load Rating | 1500 lb (680 kg) |
| Double Line Pulling Distance | 26'' to 79'' (66.0 to 200.6 cm) |
| Double Line Load Rating | 3000 lb (1361 kg) |
| Standard | Meets ANSI/ASME B30.21-2014 and B30.10-2014 Standards |
| Included | Removable Handle |
| Weight | 13 lb (5.9 kg) |
| UPC | 092644611063 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist. |
Klein Tools - KN1600PEX - Videos
| Klein Tools KN1600PEX Video | Click to View |
|---|
