Klein Tools KT4500 | Parallel Jaw Grip 4500 Series for ACSR
Regular price
$187.19
Unit price
Brand: Klein Tools
|
SKU:
522551
Regular price
$187.19
Unit price
Description
Description

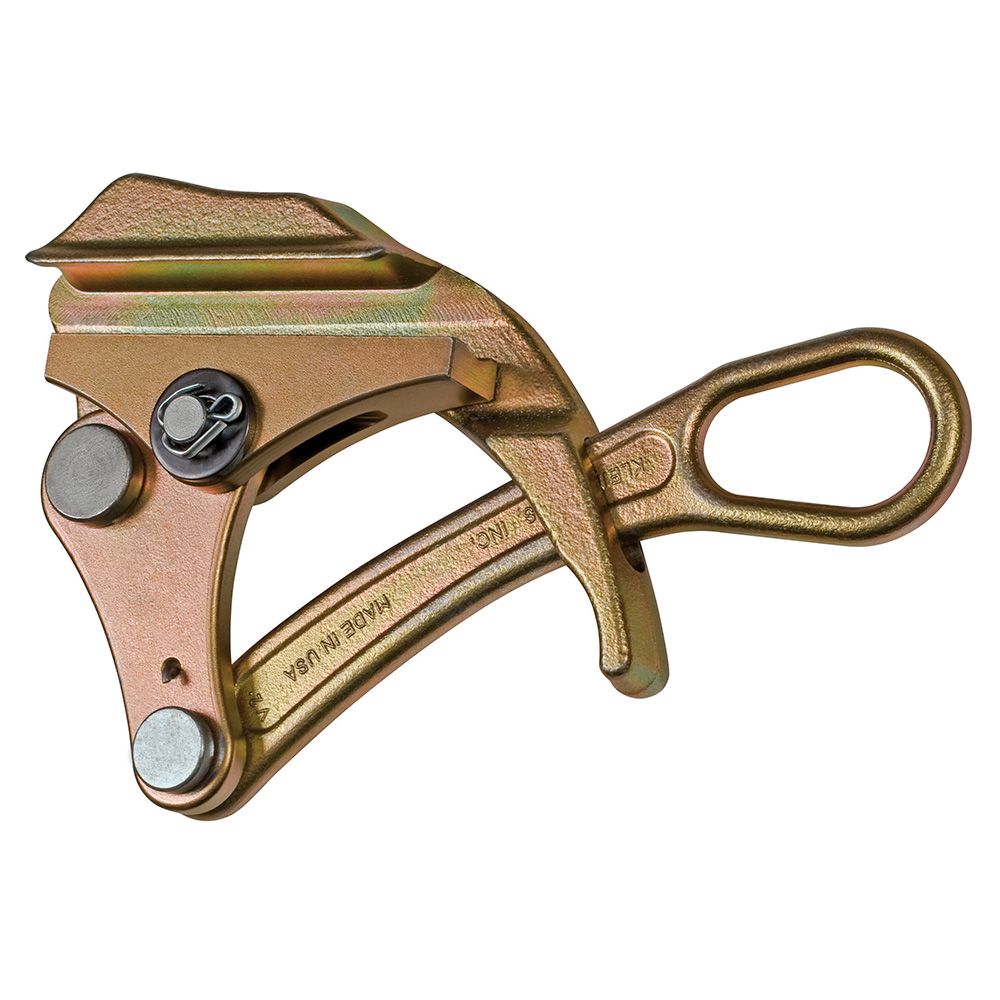

Klein Tools KT4500 | Parallel Jaw Grip 4500 Series for ACSR
This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Tools Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 - 0.60-inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.
Klein Tools - KT4500 - Features
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
- Spring closes grip on cable to hold the initial position
- Spring?loaded for easy one?handed operation
- Made in USA
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
Specifications
Specifications
Klein Tools - KT4500 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Parallel Jaw Grips
Klein Tools - KT4500 - Related Products
- KT4501 - Parallel Jaw Grip 4501 Series with Hot Latch
- KT4502 - Parallel Jaw Grip 4502 Series with Hot Latch
- KT4600 - Parallel Jaw Grip 4600 Series
- KT4601 - Parallel Jaw Grip 4601 Series with Hot Latch/Spring
- KT4602 - Parallel Jaw Grip 4602 Series with Hot Latch
Klein Tools - KT4500 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - KT4500 - Specifications
| Type | Parallel Jaw Grip |
|---|---|
| Application | Cable Pulling |
| Special Features | Sawtooth Jaw Profile Resists Build-up |
| Cable Type | ACSR, AAC, Copper |
| Cable Diameter | 0.18'' to 0.6'' (4.57 to 15.2 mm) |
| Hot Latch | N |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | N |
| Jaw Type | Round - Serrated |
| Jaw Length | 4'' (10.2 cm) |
| Maximum Safe Load | 5000 lb (2268 kg) |
| Weight | 3.8 lb (1.7 kg) |
| UPC | 092644477508 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Grips are to be used for temporary installation, Not for permanent anchorage. When used on/or near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. |
Klein Tools - KT4500 - Videos
| Klein Tools KT4500 Video | Click to View |
|---|
