Klein Tools KT4801 | Parallel Jaw Grip 4801 Series with Hot Latch/S...
Regular price
$449.44
Unit price
Brand: Klein Tools
|
SKU:
522537
Regular price
$449.44
Unit price
Description
Description

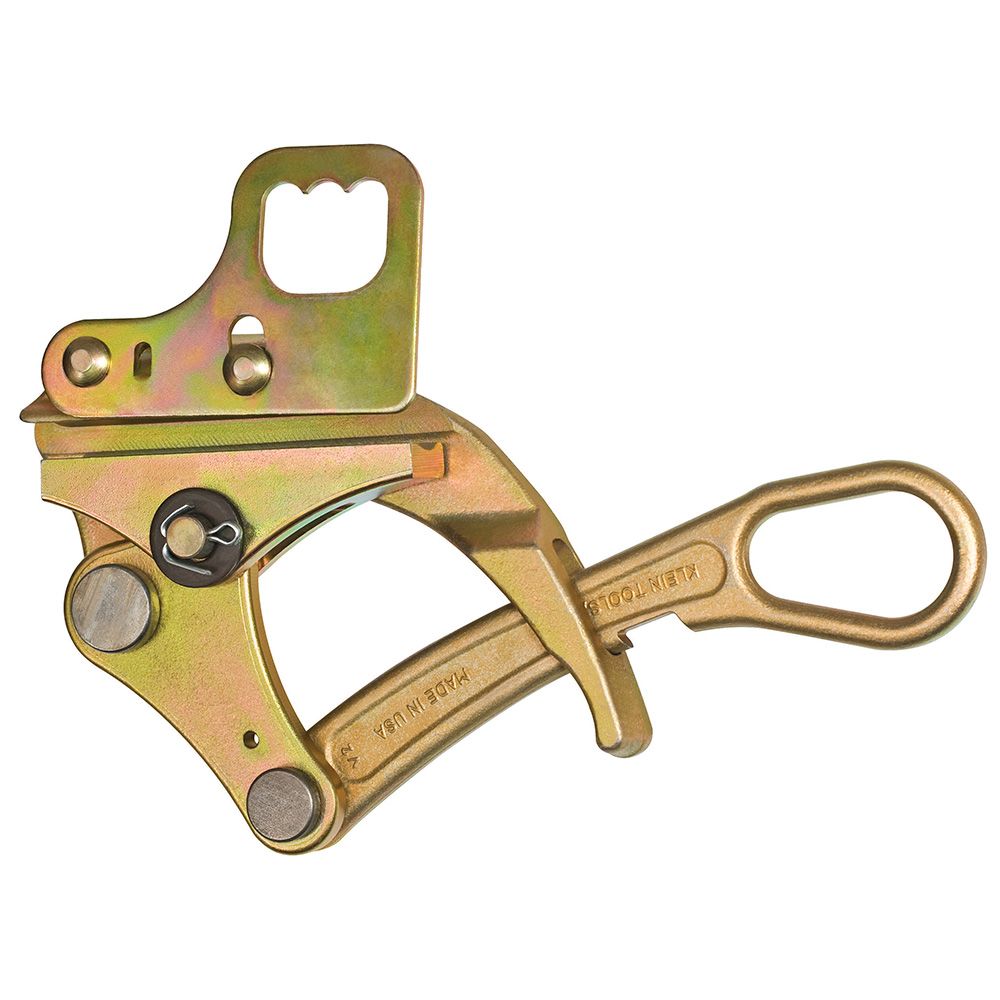

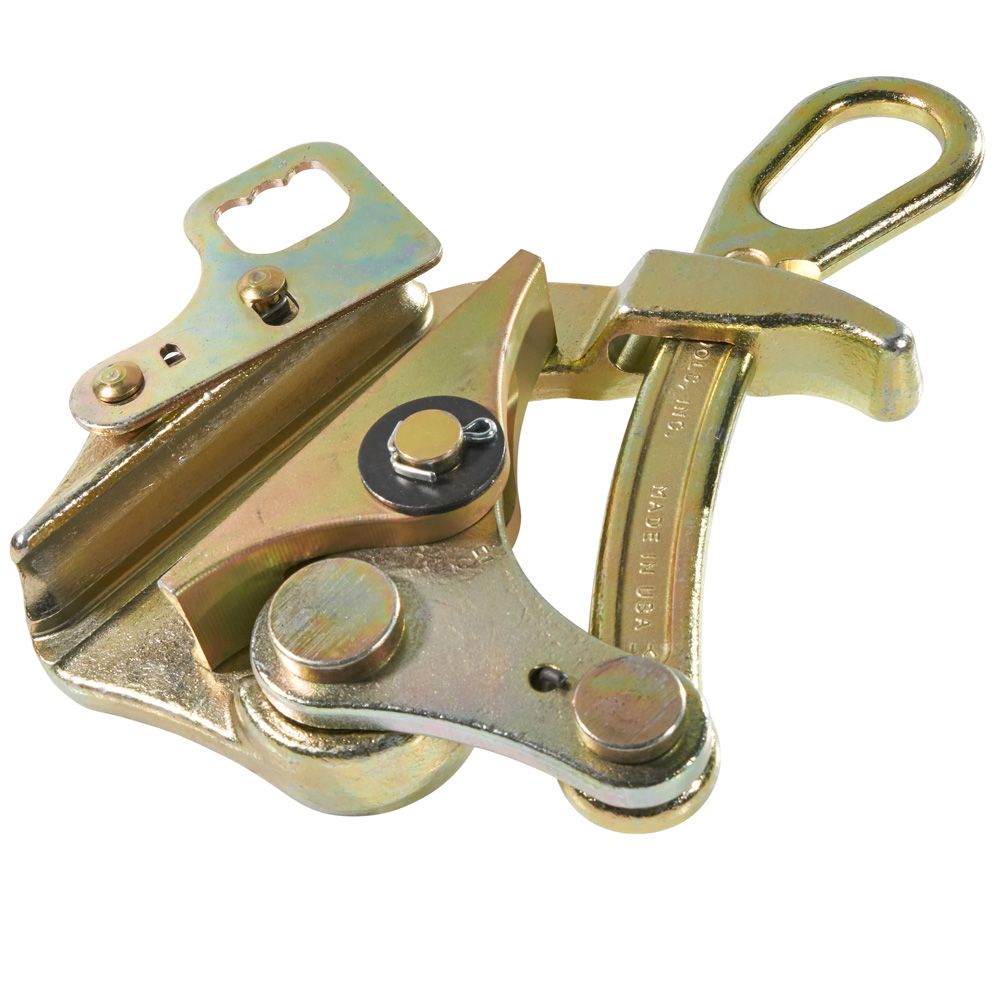

Klein Tools KT4801 | Parallel Jaw Grip 4801 Series with Hot Latch/Spring
Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Tools Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.
Klein Tools - KT4801 - Features
- Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
- Hot latch closes automatically to guard against grip accidently disengaging from wire
- Round jaw provides maximum contact with the cable minimizing deformation
- Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Max Safe Load of 12,000-Pound (5443 kg)
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Specifications
Specifications
Klein Tools - KT4801 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Parallel Jaw Grips
Klein Tools - KT4801 - Related Products
- KT4500 - Parallel Jaw Grip 4500 Series for ACSR
- KT4501 - Parallel Jaw Grip 4501 Series with Hot Latch
- KT4502 - Parallel Jaw Grip 4502 Series with Hot Latch
- KT4600 - Parallel Jaw Grip 4600 Series
- KT4601 - Parallel Jaw Grip 4601 Series with Hot Latch/Spring
Klein Tools - KT4801 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - KT4801 - Specifications
| Type | Parallel Jaw Grip |
|---|---|
| Special Features | Hot Latch, Spring, Locking Handle |
| Cable Type | ACSR, AAC, Copper |
| Cable Diameter | 0.7'' to 1.25'' (17.78 to 31.75 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Round - Serrated |
| Jaw Length | 5.125'' (13 cm) |
| Maximum Safe Load | 12,000 lb (5443 kg) |
| Weight | 9.0 lb (4.1 kg) |
| UPC | 92644477577 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - KT4801 - Videos
| Klein Tools KT4801 Video | Click to View |
|---|
