Klein Tools KT4802 | Parallel Jaw Grip 4802 Series with Hot Latch
Regular price
$434.73
Unit price
Brand: Klein Tools
|
SKU:
522485
Regular price
$434.73
Unit price
Description
Description

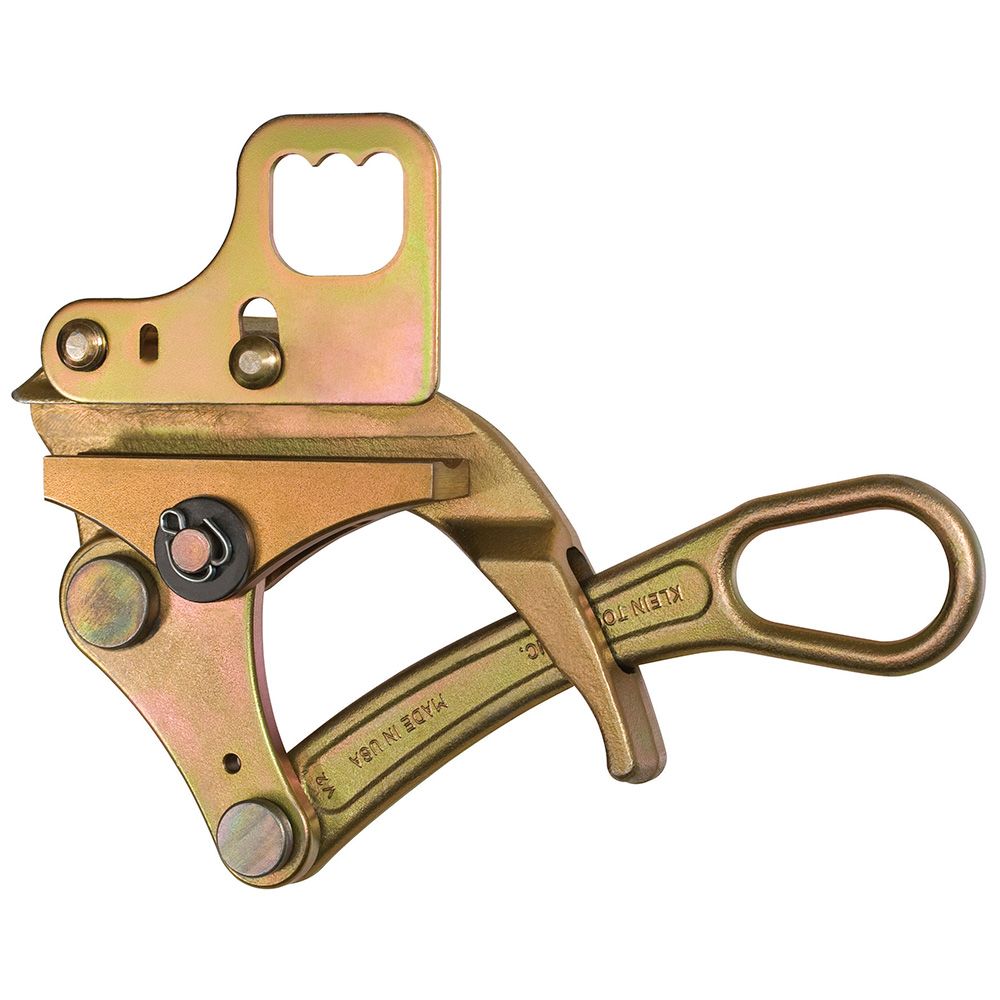

Klein Tools KT4802 | Parallel Jaw Grip 4802 Series with Hot Latch
The Klein Tools KT4802 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 - Inches.
Klein Tools - KT4802 - Features
- Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
- Round jaw provides maximum contact with the cable minimizing deformation
- Hot latch closes automatically to guard against grip accidently disengaging from wire
- Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Made in USA
- Maximum Safe Load of 12,000-pounds (5443 kg)
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Specifications
Specifications
Klein Tools - KT4802 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Parallel Jaw Grips
Klein Tools - KT4802 - Related Products
- KT4500 - Parallel Jaw Grip 4500 Series for ACSR
- KT4502 - Parallel Jaw Grip 4502 Series with Hot Latch
- KT4600 - Parallel Jaw Grip 4600 Series
- KT4601 - Parallel Jaw Grip 4601 Series with Hot Latch/Spring
- KT4602 - Parallel Jaw Grip 4602 Series with Hot Latch
Klein Tools - KT4802 - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - KT4802 - Specifications
| Type | Parallel Jaw Grip |
|---|---|
| Special Features | Hot Latch |
| Cable Type | ACSR, AAC, Copper |
| Cable Diameter | 0.7'' to 1.25'' (17.78 to 31.75 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | N |
| Jaw Type | Round - Serrated |
| Jaw Length | 5.125'' (13 cm) |
| Maximum Safe Load | 12,000 lb (5443 kg) |
| Weight | 9.0 lb (4.1 kg) |
| UPC | 92644477584 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
