Klein Tools MM450 | Slim Digital Multimeter, TRMS Auto-Ranging, 600...
Description
Description

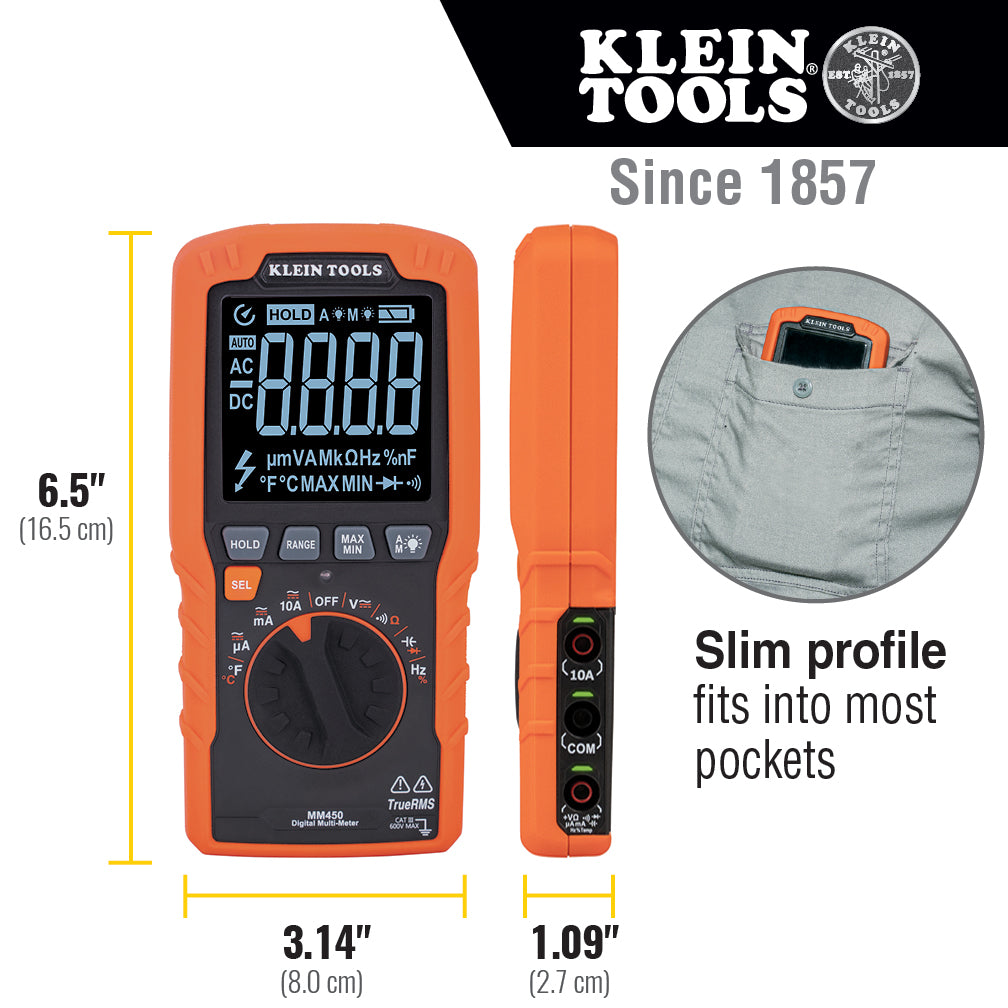

Klein Tools MM450 Multimeter is a TRMS auto-ranging slim multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. It features a high visibility, reverse contrast display with an optical sensor to automatically optimize viewing in dark or bright ambient light. The slim profile of the MM450 makes this meter almost the size of a cell phone and it conveniently fits into most pockets. The MM450 features the same quality leads you have come to expect from the Digital Multimeter line at Klein Tools. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Specifications
Specifications
Klein Tools - MM450 - Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use verify meter operation by measuring a known voltage or current.
Klein Tools - MM450 - Product Categories
- Test & Measurement
- Multimeters
Klein Tools - MM450 - Specifications
| Type: | Digital Multimeter |
|---|---|
| Application: | Testing and Measuring Voltage |
| Special Features: | Slim Profile; Lead-Alert; High-Visibility Display with Optical Sensor; Auto-Range; Min/Max Measurements; Auto Power-Off; Data-Hold |
| Material: | ABS, Electrical Components |
| Batteries: | 2 x AAA |
| Drop Protection: | 6.6' (2 m) |
| Display: | 4000 Count LCD |
| Color: | Orange/Black |
| Functions: | Measures up to 600V AC/DC Voltage, 10A AC/DC Current and 50M? Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes and Continuity |
| Voltage: | 600V AC/DC |
| Frequency: | 1 Hz to 50 KHz |
| Current: | 10A AC/DC |
| Capacitance: | 400 µF |
| Ohms (Resistance): | 50 M? |
| Standard: | CAT III 600V; CE and UKCA Certified |
| Temperature Range: | -40° to 1832°F (-40° to 1000°C) |
| Accuracy: | See Instructions |

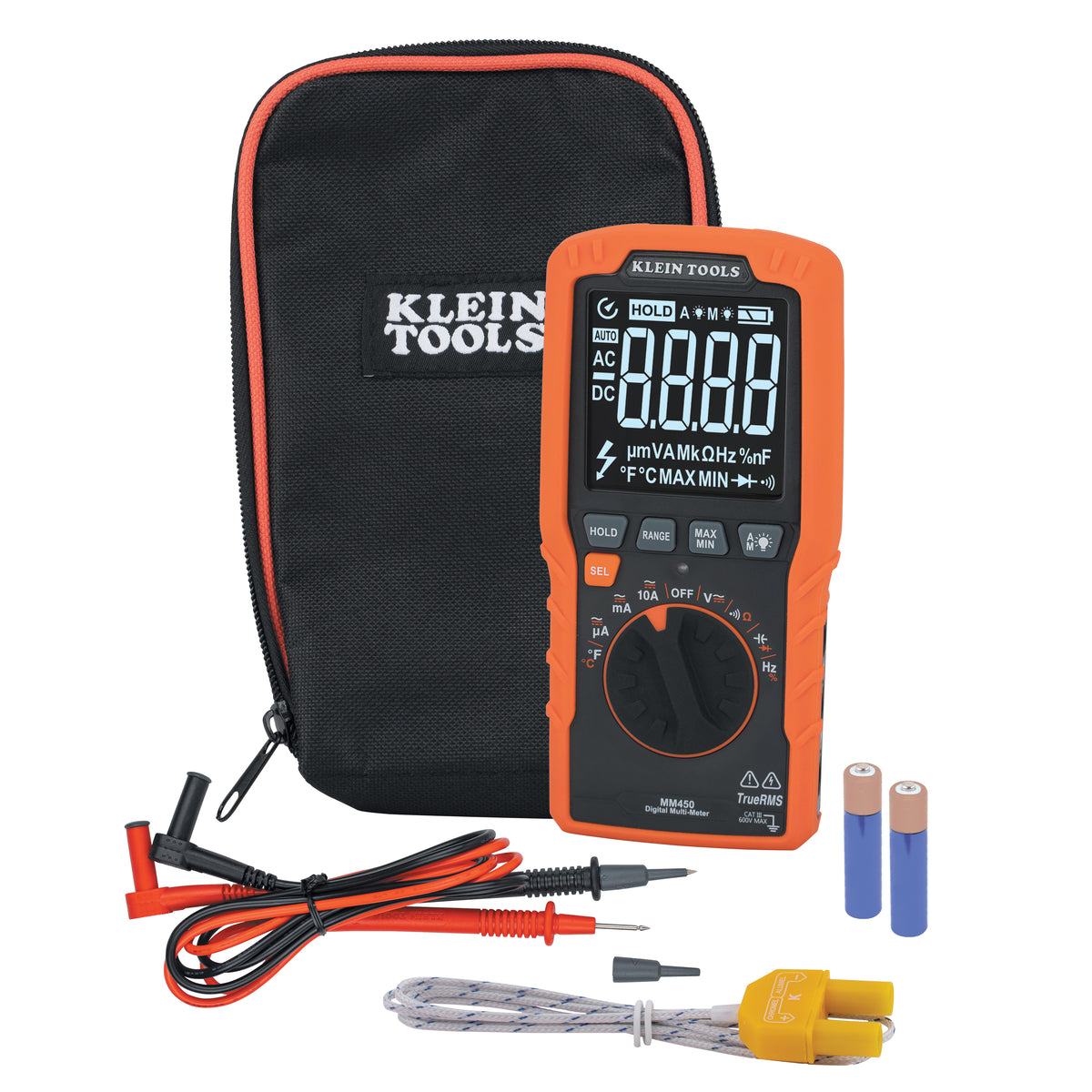

| Included: | Multimeter; Carrying Pouch; Test Leads; Thermocouple with Adapter; Batteries |
| Overall Length: | 6.5'' (16.5 cm) |
| Overall Height: | 1.09'' (2.8 cm) |
| Overall Width: | 3.14'' (8 cm) |
| Weight: | 9.1 oz (258 g) |
| UPC: | 92644693755 |
