Description
Description

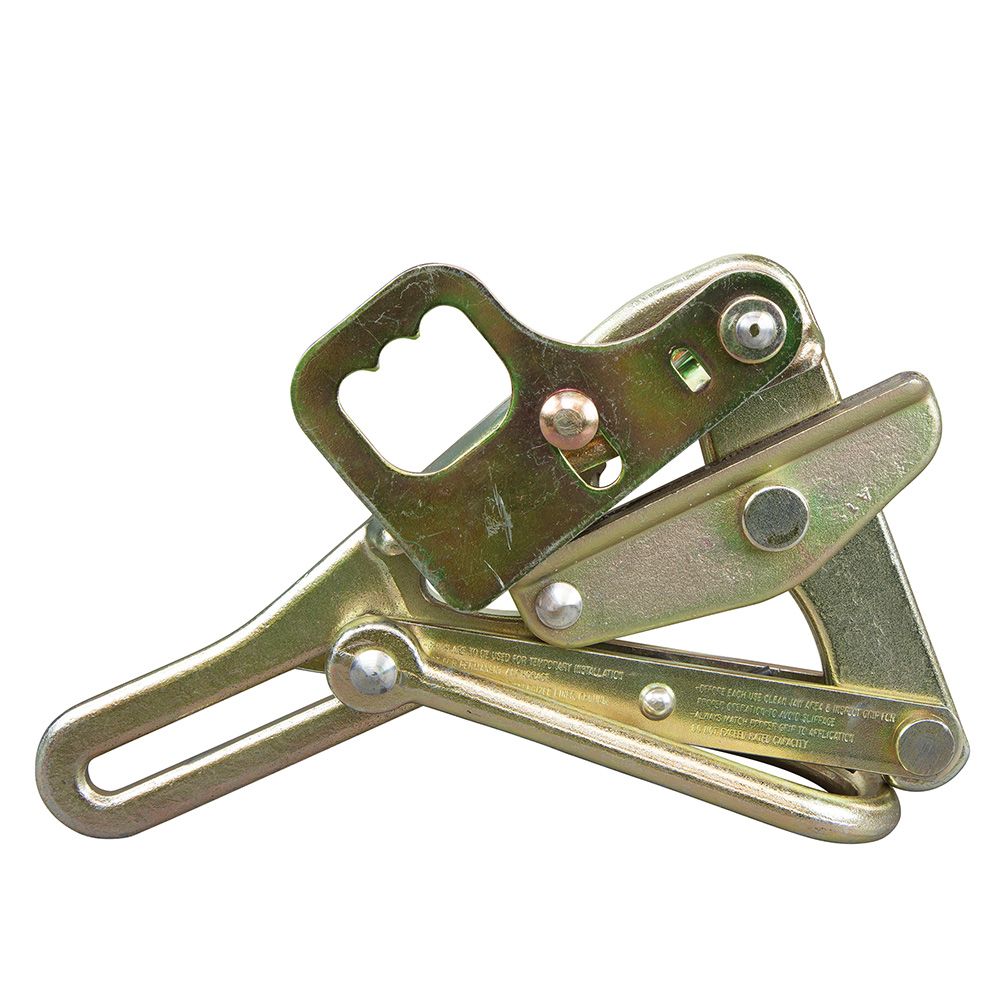

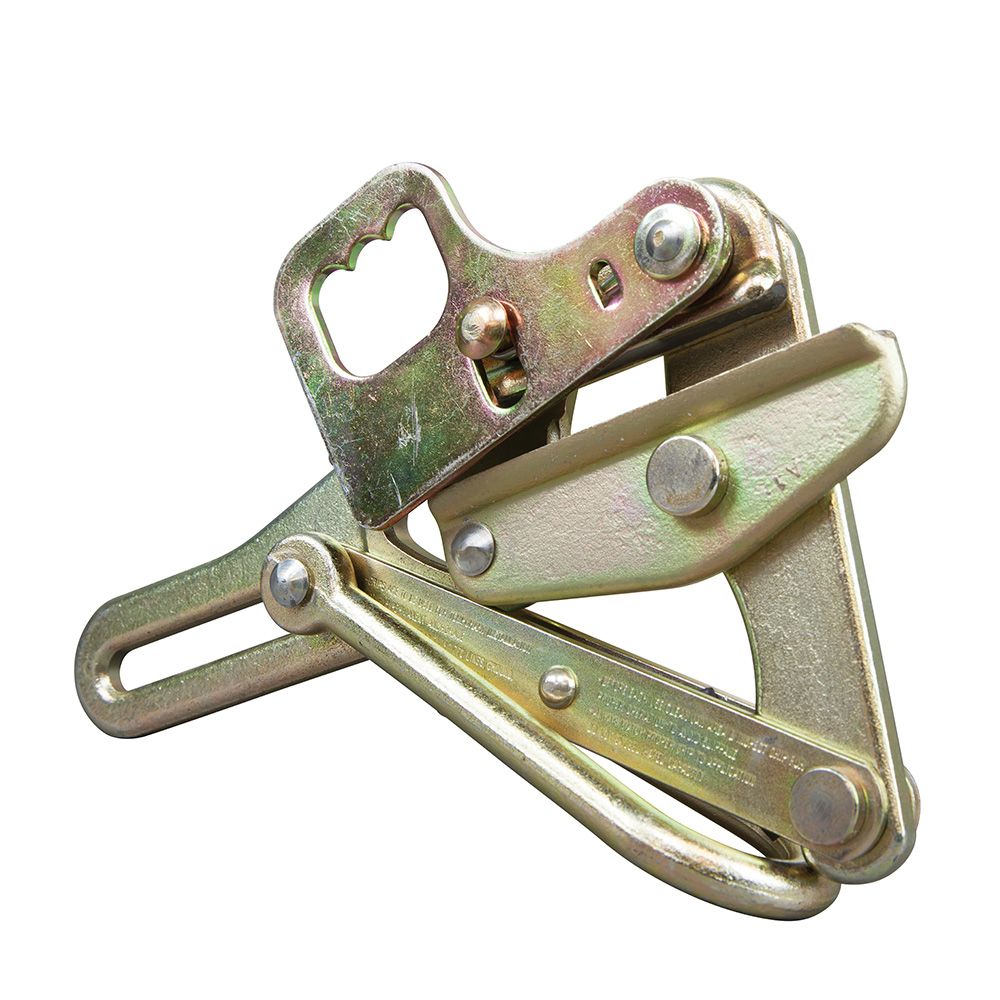

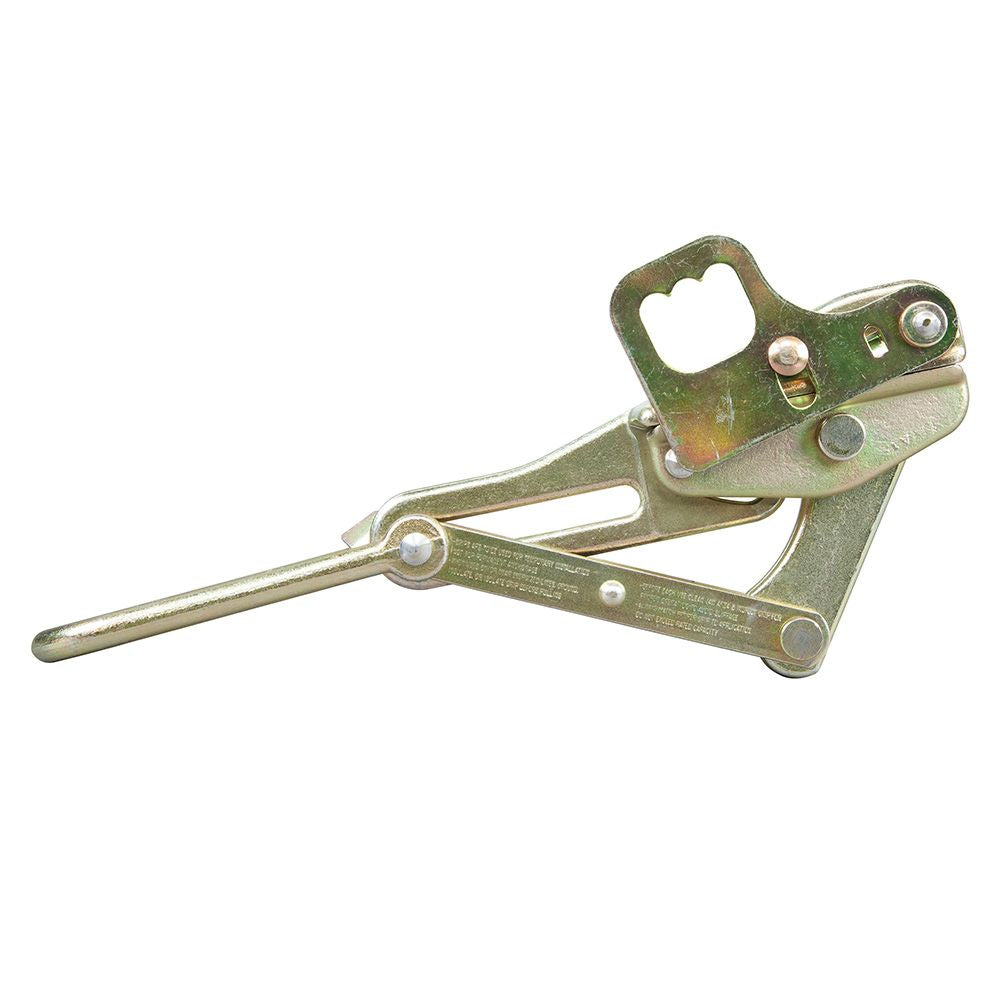

Klein Tools S1656-20H | Chicago Grip, Forged, Hot-Line, 0.20 to 0.40-Inch
The Klein Tools S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein Tools S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
Klein Tools - S1656-20H - Features
- The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
- Jaw length: 4-3/16-Inch
- Maximum safe load of 4,500 pounds
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
Specifications
Specifications
Klein Tools - S1656-20H - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Hot-Line Latch for Bare Conductors
Klein Tools - S1656-20H - Related Products
- 1613-40H - Chicago Grip with Latch 0.37-Inch Cable
- 1656-20H - Chicago Grip w/Latch, Bare Conductors to 0.4-Inch
- 1656-30H - Chicago Grip with Latch 0.53-Inch Capacity
- 1656-50H - Chicago Grip with Latch 0.86-Inch Capacity
- 1656-60H - Chicago Grip with Latch 0.96-Inch Capacity
Klein Tools - S1656-20H - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - S1656-20H - Specifications
| Type | Chicago Grip |
|---|---|
| Cable Type | Copper, ACSR, AAC |
| Cable Diameter | 0.2'' to 0.4'' (5.08 to 10.16 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Round |
| Jaw Length | 4'' (10.2 cm) |
| Maximum Safe Load | 4500 lb (2041 kg) |
| Weight | 3.15 lb (1.43 kg) |
| UPC | 92644471063 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
