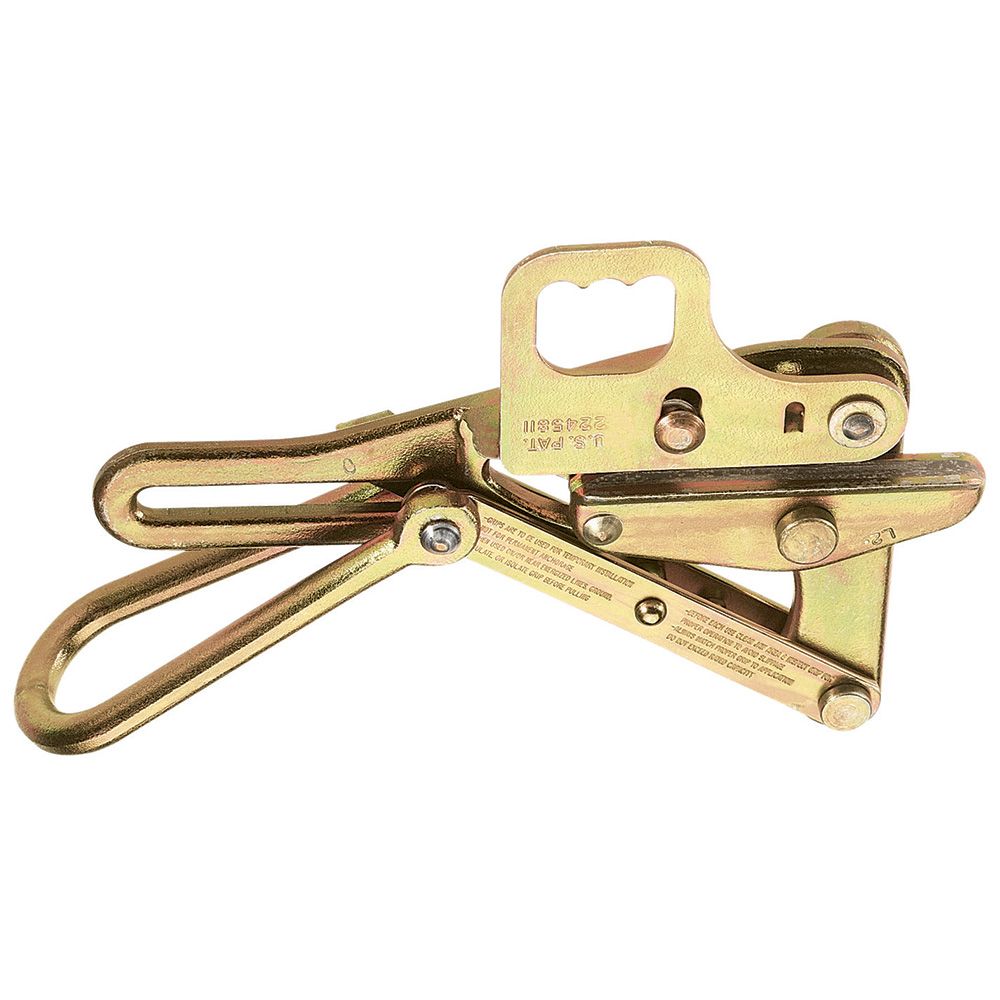

Klein Tools S1684-5H | Chicago Grip, Forged, Hot-Line, 0.218 to 0.55-Inch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The Klein Tools S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors are for both bare and insulated conductors . The Klein Tools S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.
Klein Tools - S1684-5H - Features
- Works with Aircraft, EHS, Messenger, Guy Strand cable
- Double V inside-jaw contour
- Maximum Safe Load: 8000-Pound (3629 kg)
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Jaw length: 5-Inch
Specifications
Specifications
Klein Tools - S1684-5H - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Tools and Supplies
- Cable Installation Tools
- Wire Pulling Grips
- Chicago Grips
- Hot-Line Latch for Bare Conductors
Klein Tools - S1684-5H - Related Products
- 1604-20 - Haven's Cable Grip 0.5-Inch Capacity
- 1604-20L - Haven's Grip with Swing Latch
- 1625-20 - Haven's Grip for Wire Rope 0.75-Inch
- 162520-1 - Haven's Grip for Wire Rope 1-Inch
- 162520-7/8 - Haven's Grip for Wire Rope 0.88-Inch
Klein Tools - S1684-5H - Accessories
- 25450 - Grip-Cleaning Brush Set
Klein Tools - S1684-5H - Specifications
| Type | Chicago Grip |
|---|---|
| Cable Type | Aircraft, EHS, Messenger, Guy Strand |
| Cable Diameter | 0.218'' to 0.55'' (5.54 to 13.97 mm) |
| Hot Latch | Y |
| Swing Latch | N |
| Spring | Y |
| Locking Handle | Y |
| Jaw Type | Double V |
| Jaw Length | 5'' (12.7 cm) |
| Maximum Safe Load | 8000 lb (3629 kg) |
| Weight | 6.7 lb (3.0 kg) |
| UPC | 92644471681 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Before each use, clean jaw area and inspect grip for proper operation to avoid slippage. When used on/near energized lines, ground, insulate, or isolate grip before pulling. Do Not exceed rated capacity. Always match proper size and type of grip to application. Grips are to be used for temporary installation, Not for permanent anchorage. |
Klein Tools - S1684-5H - Videos
| Klein Tools S1684-5H Video | Click to View |
|---|
