Klein Tools TI220 | Thermal Imager for Android Devices
Description
Description

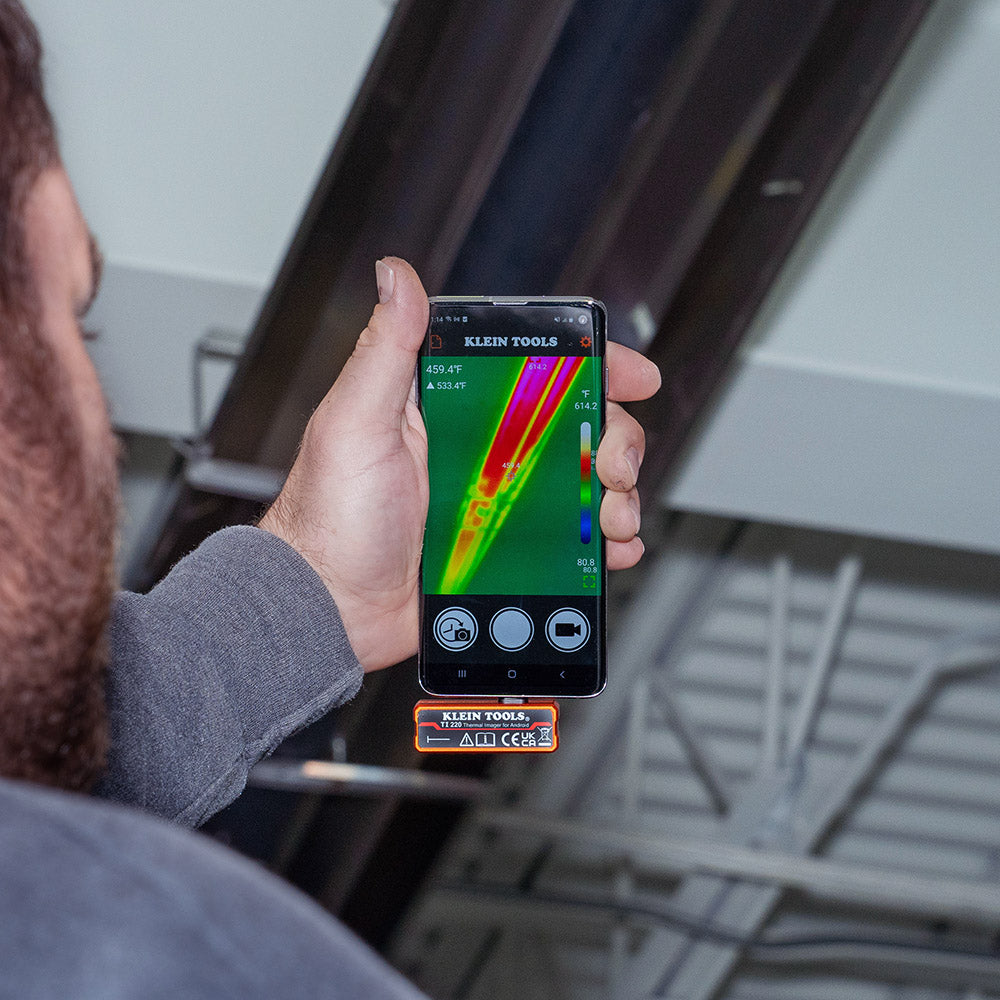

The Klein Tools TI220 Thermal Imager for Android Devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager Android App. Available for free on Google Play store.
Specifications
Specifications
Klein Tools - TI220 - Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with device before each use.
- Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.
Klein Tools - TI220 - Product Categories
- Test & Measurement
- Thermal Imagers
Klein Tools - TI220 - Specifications
| Type: | Thermal Imager |
|---|---|
| Application: | View Hot and Cold Spots For Instant Troubleshooting |

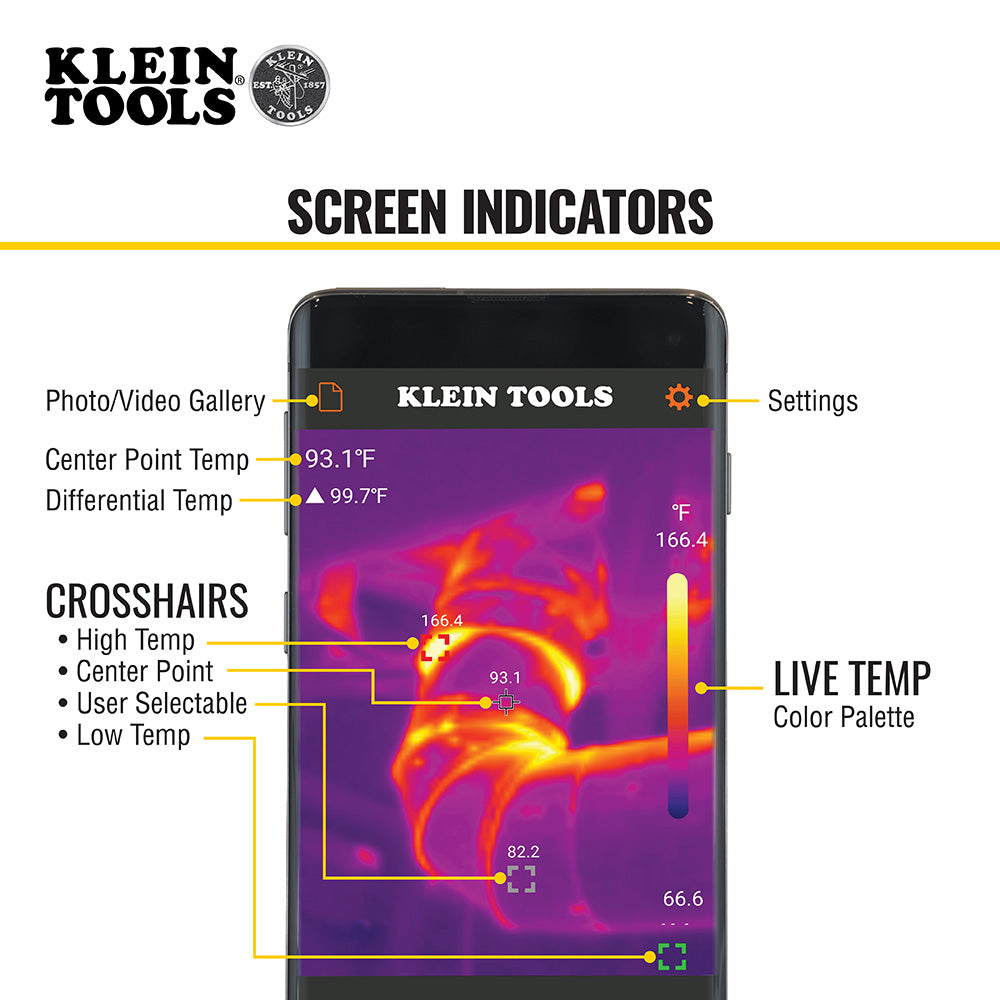

| Special Features: | High and Low Temperature Points, Touch-Point Temperature, Options for Temperature Alarms, Time-Lapse Video, 3 Color Palettes, No Batteries Needed |
| Display: | External Device |
| Display Resolution: | Dependent on Phone |
| Sensor Type: | VOx Microbolometer |
| Sensor Resolution: | 10,800 Pixels |
| Thermal Sensitivity: | <60 mK |
| Spectral Range: | 8 to 14 ?m |
| Temperature Range: | -4° to 752°F (-20° to 400°C) |
| Accuracy: | +/-2°C or 2% (whichever is greater). Not calibrated below 10°C (14°F) |
| Field of View: | 50° +/- 3° |
| Laser Sighting: | No |
| Emissivity: | 0.01 to 0.99, Adjustable |
| Color Palettes: | Ironbow, Rainbow, and Grayscale |
| Photo Capture: | Yes |
| Maximum Frames per Second: | <9 Hz |
| Memory: | External Device |

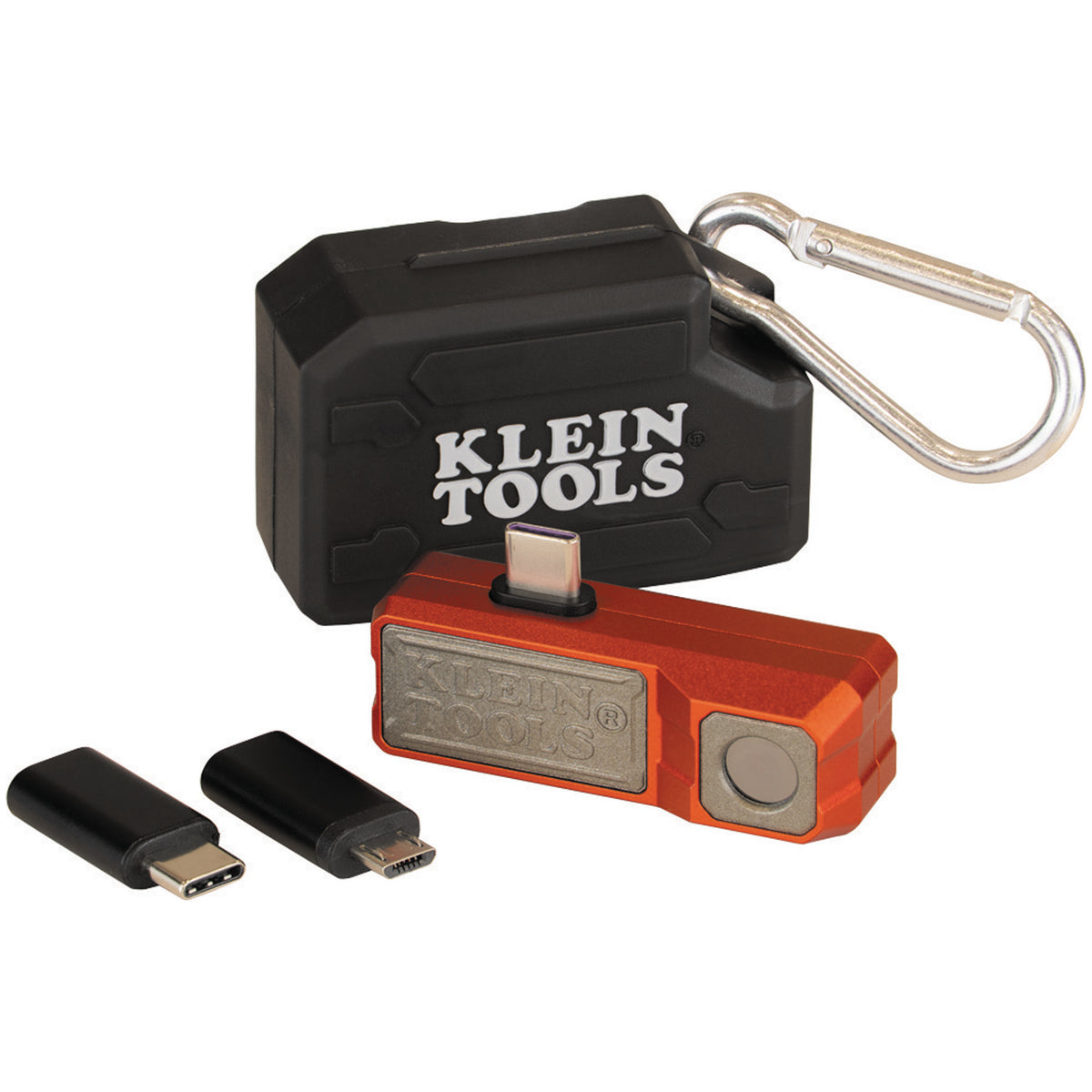

| Included: | Thermal Imager; USB-C Connector; Micro-USB Connector/Adapter; Hard Storage Case with Carabiner; Instructions |
| Overall Length: | 2.13'' (5.4 cm) |
| Overall Width: | 0.73'' (1.9 cm) |
| Overall Height: | 1.07'' (2.7 cm) |
| Material: | Aluminum Housing, Electronic Components |
| Standards: | CE and UKCA |
| Weight: | 1 oz (31 g) |
| UPC: | 92644693489 |
