Klein Tools VDV500-123 | Probe-PRO Tracing Probe
Regular price
$69.29
Unit price
Brand: Klein Tools
|
SKU:
10046272
Regular price
$69.29
Unit price
Description
Description

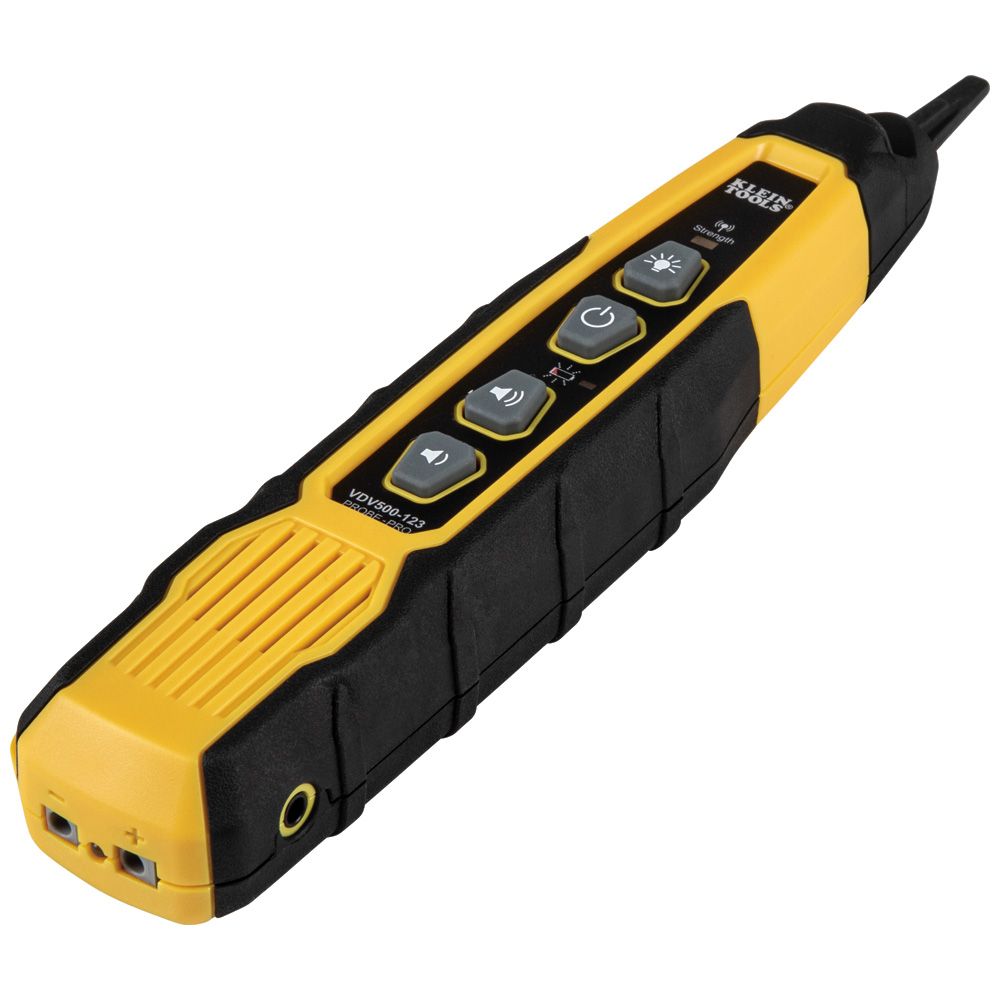

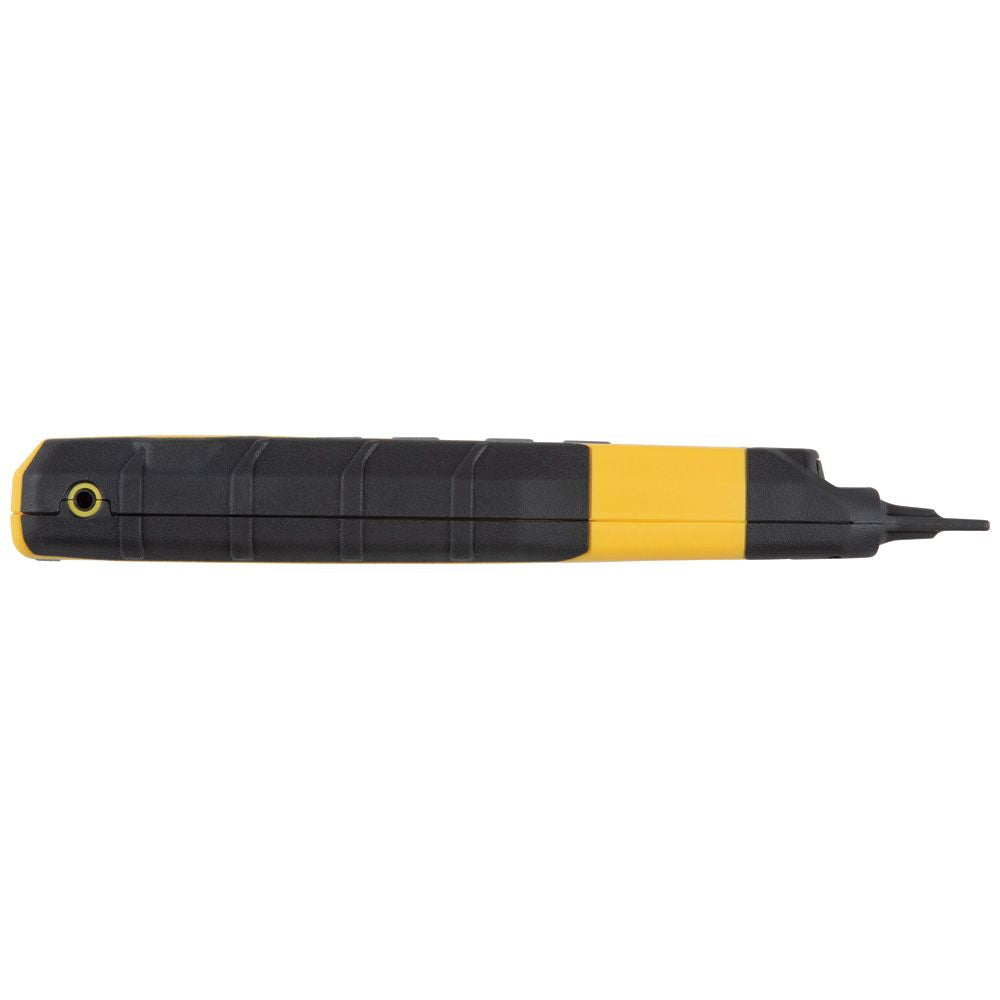

Klein Tools VDV500-123 | Probe-PRO Tracing Probe
The professional series Probe-Pro Tone Tracer traces non-active wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments. The terminal block confirms the toned pair has been located.
Klein Tools - VDV500-123 - Features
- Traces open-ended, non-energized wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately)

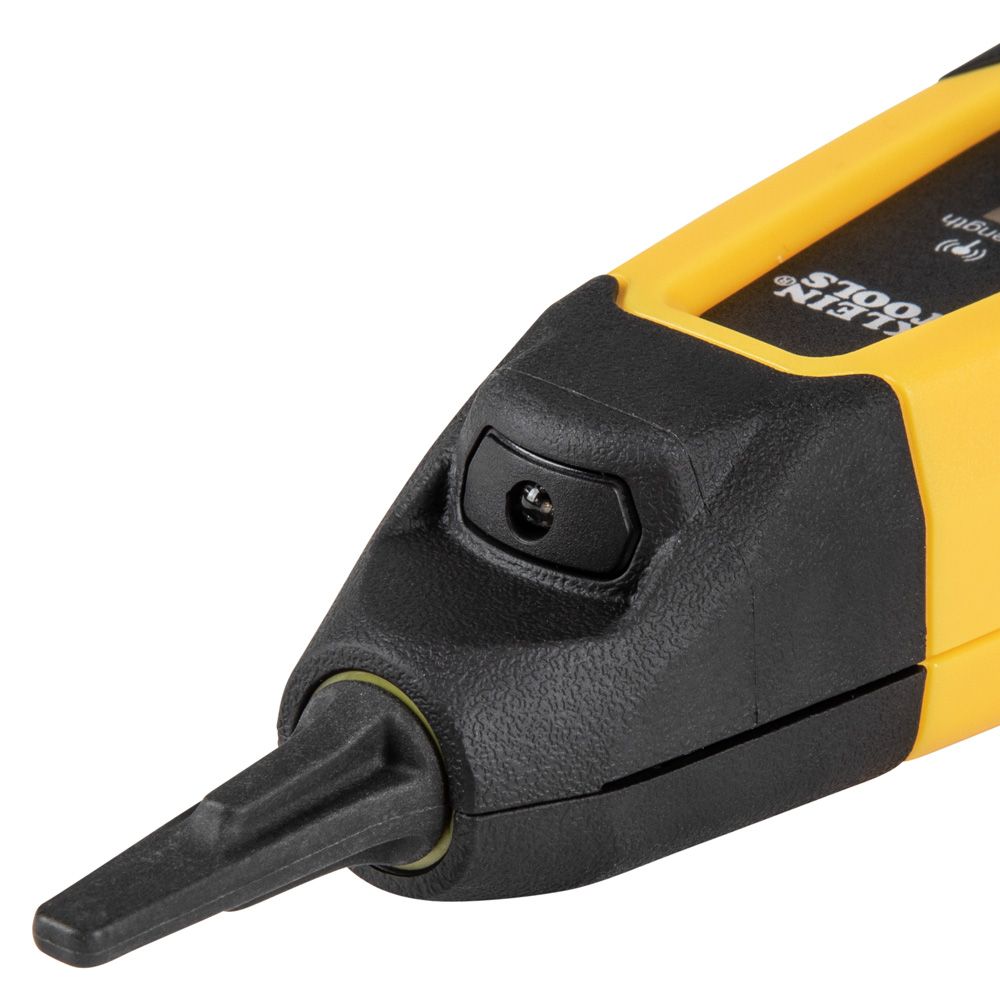

- Responsive, durable, replaceable non-metallic, conductive tip
- Work light for use in dark spaces
- 3.5 mm headphone jack for noisy environments (headphones not included)

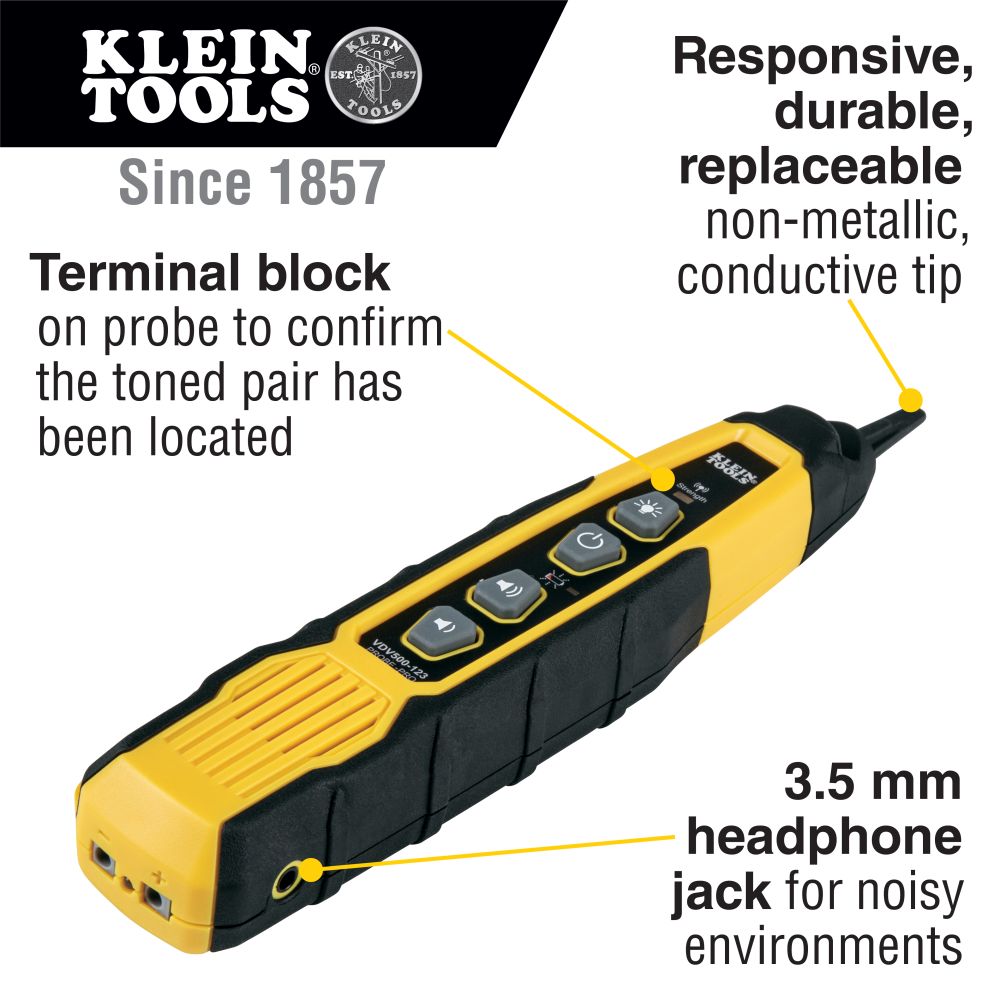

- Terminal block on probe to confirm the toned pair has been located
- Tool-less, twist-and-lock replacement tip (VDV999-068) available
- One push power button with power-on LED indicator - no need to hold button down
- Auto power-off
- Low battery indicator
- 4 x AAA batteries included
- Includes a loop for a lanyard
- Works with Klein's Scout Pro, Lan Scout, Jr. and Commander series of testers
Specifications
Specifications
Klein Tools - VDV500-123 - Product Categories
- Shop by Manufacturer/Klein Tools
- Hardware and Supplies
- Test Equipment
- Fiber Optic Test Equipment
- Voice / Data / Video Testers
- Tone & Probe
Klein Tools - VDV500-123 - Replacement Parts
- VDV999 - 068 - Replacement Tip for Probe - Pro Tracing Probe
Klein Tools - VDV500-123 - Specifications
| Type | Accessory Probe |
|---|---|
| Application | Wire Tracing |
| Special Features | Worklight, Stay on Power Button |
| Material | Plastic and Metal |
| Batteries | 4 x AAA |
| Battery Life | 25 hr |
| Low Battery Indicator | Yes |
| Power On LED Indicator | Yes |
| Continuity Testing | No |
| Tones | - |
| Visual Notification | LED |
| Replaceable Tip | Yes |
| Included | 4 x AAA Batteries |
| Overall Length | 1.4'' (3.6 cm) |
| Auto-Power Off | Yes |
| Adjustable Volume | Yes |
| Amplifier Overload Indication | No |
| Overall Height | 9'' (22.7 cm) |
| Overall Width | 1.2'' (3.0 cm) |
| Weight | 5.7 oz (0.2 kg) |
| UPC | 092644692345 |
| Warranty | https://www.kleintools.com/content/warranty-product-group |
| Warnings | Carefully read all instructions. Read all safety information before using. Do Not use on energized circuits. Do Not use instruments if it is wet, as it could pose a shock hazard. Do Not use instruments if it is damaged in any way. Turn off instrument and disconnect all test leads before attempting to replace batteries. Do Not open the case, other than the battery compartment. Battery door must be in place and secure before you operate. |
Klein Tools - VDV500-123 - Videos
| Klein Tools VDV500-123 Video | Click to View |
|---|
