Klein Tools VDV501-852 | Scout Pro 3 Tester with Locator Remote Kit
Regular price
$228.87
Unit price
Brand: Klein Tools
|
SKU:
VDV501-852
Regular price
$228.87
Unit price
Description
Description
Klein Tools VDV501-852 | Scout Pro 3 Tester with Locator Remote Kit
The Scout Pro 3 Tester with Locator Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with 18 location mapping remotes (included). Test for Power over Ethernet (PoE) and measure cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Specifications
Specifications
Klein Tools - VDV501-852 - Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
- Always wear approved eye protection.
- Do NOT use on energized circuits.
Klein Tools - VDV501-852 - Product Categories
- Voice | Data | Video Testers
- Cable Length Measurement
Klein Tools - VDV501-852 - Specifications
| Type: | Twisted Pair, DATA, Voice, LAN, and Coaxial |
|---|---|
| Application: | Cable Testing |
| Special Features: | Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink |
| Cable Type: | DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q |
| Overall Length: | 7'' (17.8 cm) |
| Overall Height: | 3.2'' (8 cm) |
| Overall Width: | 1.5'' (3.8 cm) |
| Material: | Plastic and Metal |
| Test-n-Map ID Remotes: | (1) Self-Storing |
| Location ID: | (18) RJ45 Data and (18) F-Coax Locator Remotes |
| Batteries: | 9V Alkaline |
| Battery Life: | Active: 50 hr |
| Drop Protection: | 2 m |
| Supported Remotes: | 18 |
| Connection & Adapter Types: | RJ11, RJ12, RJ45, Coax F |
| Display: | Backlit LCD |
| Multiple Style Tone Generator: | Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately |
| Faults Detected: | Open, Short, Miswire |
| Test & Measure Types: | Ethernet, Data, Coaxial |
| Accuracy: | Length Measurement: +/- 5% (ft) or 5% m |

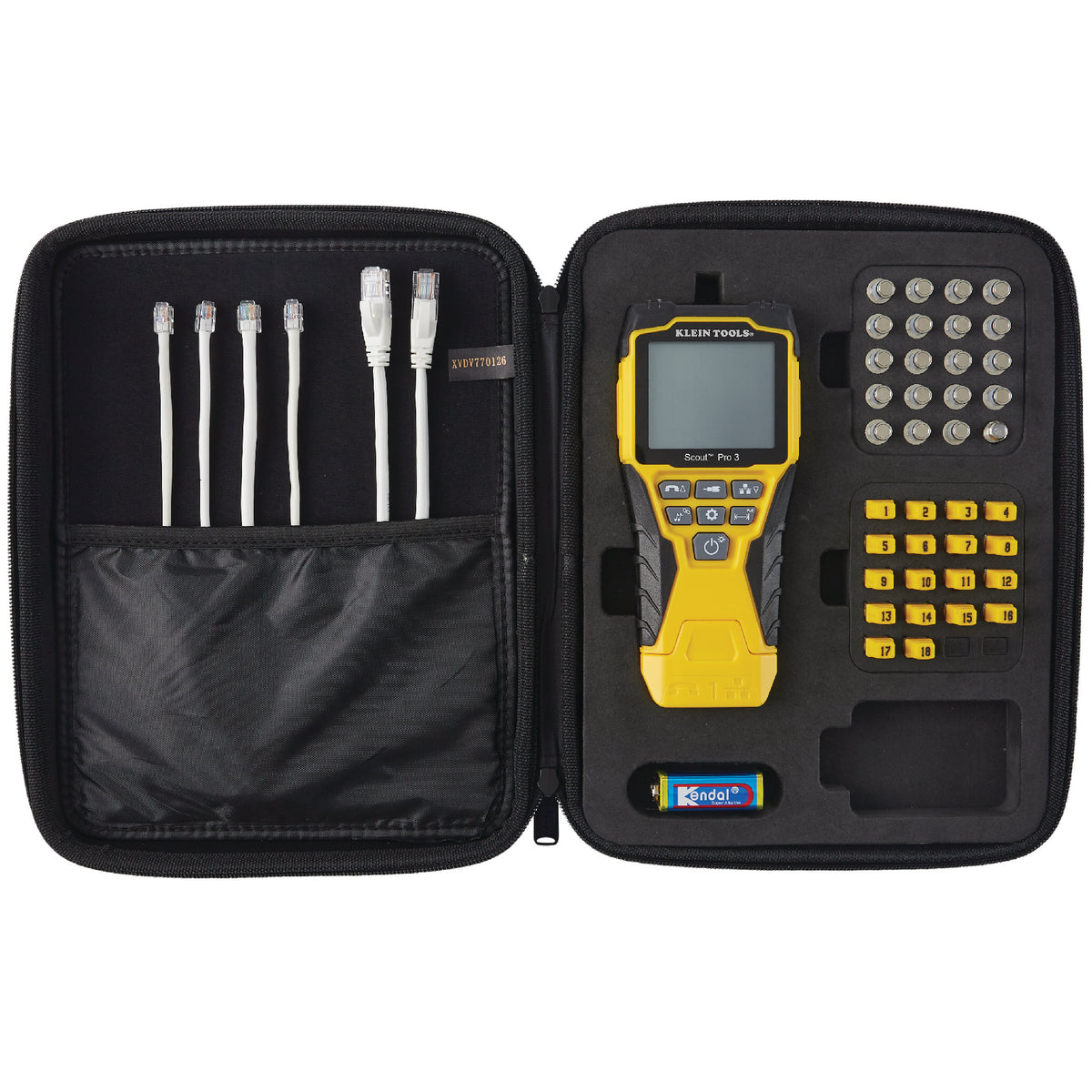

| Included: | Tester, Self-storing Test + Map Remote (#1), 18 - RJ45 LAN Locator Remotes, 18 - F Coax Locator Remotes, 2 - Coaxial Barrel Adapters (female-to-female), 2 - RJ45 Jumper Cables (6''), 2 - RJ11 Jumper Cables, 2 - RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery |
| Standard: | CE |
| Weight: | 1.2 lb (0.5 kg) |
| UPC: | 92644583261 |
