L. H. Dottie 5MB381 | 3/8''-16 x 1'' Grade 5 Hex He...
Regular price
$52.97
Unit price
Brand: L. H. Dottie
|
SKU:
10162870
Regular price
$52.97
Unit price
Description
Description

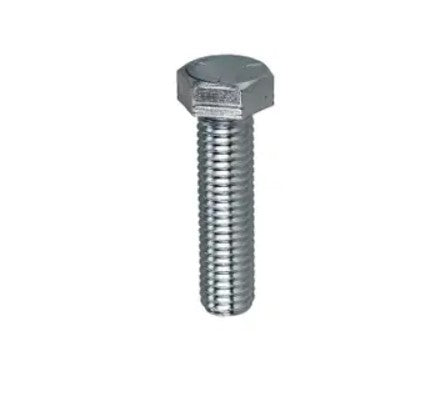

L. H. Dottie 5MB381 | 3/8''-16 x 1'' Grade 5 Hex Head Cap Screw
Grade 5 Hex Cap Screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 Hex Cap Screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of Grade 5 Hex Cap Screws and ASME B18.2.1 covers the dimensional requirements.
Specifications
Specifications
L. H. Dottie - 5MB381 - Specifications
| Type | Cap Screw |
|---|---|
| Head Type | Hex |
| Grade | 5 |
| Thread Style | Fully Threaded |
| Thread Type | 2A |
| Point Type | Chamfered |
| Size | 3/8'' x 1'' |
| Dia./Thread Size | 3/8''-16 |
| Head Size | 9/16'' |
| Head Diameter | 0.562'' - 0.551'' |
| Length (in) | 1'' |
| Head Height | 0.243'' - 0.226'' |
| Thread Pitch\Thread Per Inch | 16 |
| Material | Medium Carbon Steel |
| Finish | Zinc Plated |
| Standard Qty | 100 |
| Master Qty | 1000 |
| Price Per | 100 |
| Package Length | 5.5 |
| Package Width | 4.1 |
| Package Height | 2.6 |
| Package Weight | 4.26 |
