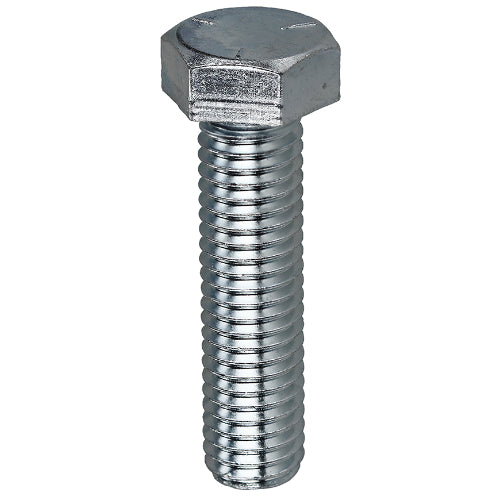

L. H. Dottie 5MB5161 | 5/16''-18 x 1'' Grade 5 Hex ...
Description
Description
Grade 5 Hex Cap Screws are made from carbon steel and are used in applications where medium strength is necessary, typically those where controlled clamp force and high loads are required. These screws can be screwed into internally tapped holes or used with a nut. Grade 5 Hex Cap Screws should always be used with a hardened washer under the turned component. SAE J429 covers the material and performance requirements of Grade 5 Hex Cap Screws and ASME B18.2.1 covers the dimensional requirements.
Specifications
Specifications
L. H. Dottie - 5MB5161 - Specifications
| Drive Style | Hex Socket |
|---|---|
| Category | Hexagon Bolts And Setscrews |
| Hydrogen Embrittlement | No |
| Diameter-Thread | 5/16 - No Thread Pitch |
| Metric/Inch | Inch |
| Point Style | Flat Point |
| Finish-Plating | Zinc |
| RoHS Compliant | No |
| Ind Std/Cust Special | None |
| Length | 1 |
| Material/Mech Props | Steel |
| Product Type-Head Style | Screw - Hex Cap |
| Quality Standard | Commercial Release |
| UNSPSC Code | 31161500 |
L. H. Dottie - 5MB5161 - Physical Characteristics
| Type | Cap Screw |
|---|---|
| Head Type | Hex |
| Grade | 5 |
| Thread Style | Partial |
| Thread Type | 2A |
| Point Type | Chamfered |
| Size | 5/16'' x 1'' |
| Dia./Thread Size | 5/16''-18 |
| Head Size | 1/2'' |
| Head Diameter | 0.500'' - 0.489'' |
| Length (in) | 1'' |
| Head Height | 0.211'' - 0.195'' |
| Thread Pitch/Thread Per Inch | 18 |
| Material | Medium Carbon Steel |
| Finish | Zinc Plated |
L. H. Dottie - 5MB5161 - Package Information
| Standard Qty | 100 |
|---|---|
| Master Qty | 1000 |
| Price Per | 100 |
| Package Length | 5.6 |
| Package Width | 4.1 |
| Package Height | 2.6 |
| Package Weight | 2.95 |
| Net Weight | 0.03 |
L. H. Dottie - 5MB5161 - Performance Data
| Tensile Strength (psi) | 120000 |
|---|---|
| Rockwell Hardness | HRC 34 - 25 |
| Special Features | Industrial Strength, Partial Thread, Grade 5 |
| Applications | Industrial Strength Applications, High Controlled Clamp Forces, High Load Requirements |
L. H. Dottie - 5MB5161 - Certifications
| RoHS Compliant | Yes |
|---|---|
| Meets/Exceeds | ASME B18.2.1 |
