Brand: L. H. Dottie
|
SKU:
10177664

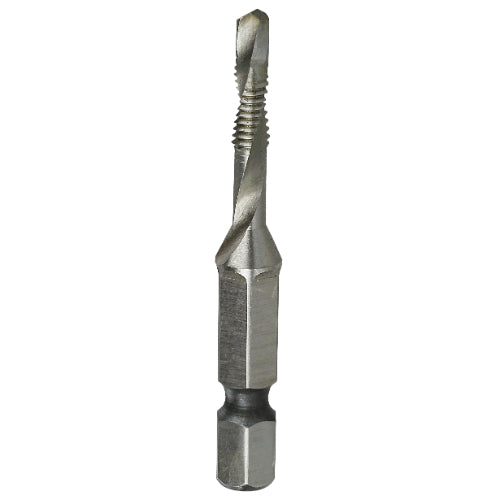

L. H. Dottie DT1420NC | 1/4''-20 Drill & Tap Bit
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
L. H. Dottie DT1420NC | 1/4''-20 Drill & Tap Bit
Regular price
$18.45
Unit price
Brand: L. H. Dottie
|
SKU:
10177664
Regular price
$18.45
Unit price
Shipping calculated at checkout.
Description
Description
L. H. Dottie DT1420NC | 1/4''-20 Drill & Tap Bit
Drill Tap Bits are single piece construction manufactured from High Speed M2 Steel and feature a 135 self-centering split point. They are used to drill, tap or debur/countersink holes for clean finishes in up to 10 gauge metal.
Specifications
Specifications
L. H. Dottie - DT1420NC - Specifications
| UNSPSC Code | 27112800 |
|---|
L. H. Dottie - DT1420NC - Physical Characteristics
| Type | Replacement Bit |
|---|---|
| Point Type | 135° Split |
| Shank Type | Quick Change |
| Thread Type | UNC |
| Thread Per Inch | 20 |
| Thread Size | 1/4''-20 |
| Shank Size (in) | 1/4'' |
| Length (in) | 2-1/4'' |
| Material | M2 High Speed Steel |
| Finish | Polished |
| Construction | One-Piece |
| Number of Flutes | One |
| Flute Length | 7/8'' |
L. H. Dottie - DT1420NC - Package Information
| Standard Qty | 1 |
|---|---|
| Master Qty | 0 |
| Price Per | 1 |
| Package Length | 6 |
| Package Width | 3 |
| Package Height | 0.5 |
| Package Weight | 0.03 |
| Net Weight | 0.03 |
L. H. Dottie - DT1420NC - Performance Data
| Intended Cutting Material | Aluminum, Brass, Copper, and Steel |
|---|---|
| RPM | 300 |
| Rockwell Hardness | 63 - 65 HRC |
| Split Drill Point | 135° |
| Applications | Drill, Tap, & Deburr in One Operation Up to 10 Gauge Metal |
L. H. Dottie - DT1420NC - Certifications
| RoHS Compliant | Yes |
|---|---|
| Industry Standards | ANSI |
