L. H. Dottie SA12214 | 1/2'' x 2-1/4'' Sleeve Ancho...
Description
Description

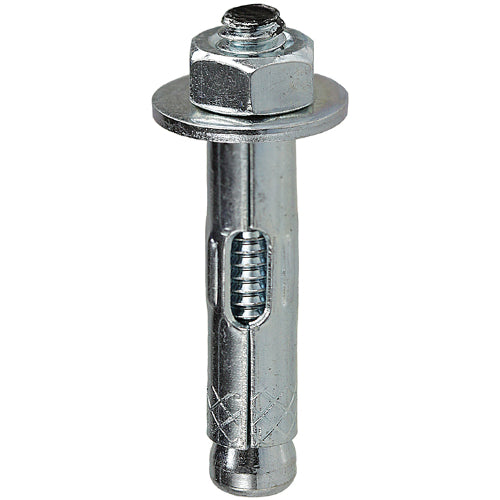

Sleeve Anchors are a preassembled expanding anchor manufactured for use in concrete, cement, block, thin wall/solid concrete, brick or stone. Due to it's unique design, it can also be used in soft concretes because the compression load can be distributed over a longer length. It comes in both acorn and hex head and can be manufactured in stainless steel upon request. For installation instructions and weight loads, reference technical data sheet.
Specifications
Specifications
L. H. Dottie - SA12214 - Specifications
| Category | Anchor Bolts And Studs |
|---|---|
| Product Type | Anchor - Bonded - Plastic Sleeve |
| UNSPSC Code | 31160000 |
L. H. Dottie - SA12214 - Physical Characteristics
| Anchor Type | Sleeve |
|---|---|
| Nut Type | Hex |
| Thread Type | UNC |
| Anchor Diameter | 1/2'' |
| Head Diameter | 1'' |
| Anchor Length | 2-7/8'' |
| Thread Length | 2-1/4'' |
| Thread Per Inch | 13 |
| Thread Pitch/Thread Per Inch | 1/2''-13 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
L. H. Dottie - SA12214 - Package Information
| Standard Qty | 25 |
|---|---|
| Master Qty | 150 |
| Price Per | 100 |
| Package Length | 6.4 |
| Package Width | 5 |
| Package Height | 3.4 |
| Net Weight | 0.12 |
| Package Weight | 3.07 |
L. H. Dottie - SA12214 - Performance Data
| Pre-Drill Size | 1/2'' |
|---|---|
| Minimum Embedment Depth | 1-7/8'' |
| Applications | Normal and Lightweight Concrete, Soft Concrete |
| Special Features | Pre-Assembled, Single Piece All Steel Sleeve, Versatile Use, Can Be Installed Through the Fixture |
| Cement Type | Various PSI |
L. H. Dottie - SA12214 - Certifications
| RoHS Compliant | Yes |
|---|
