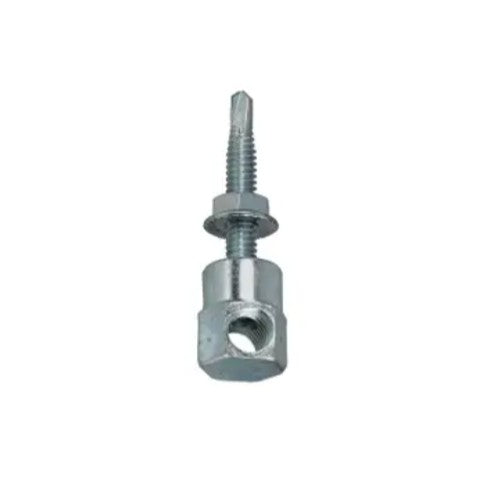

L. H. Dottie SSM38SR | 3/8''-16 Metal Drilling Side Mount Rod Hanger
Side Mount Steel Rod Hangers are used in the sides of steel joists and beams to install threaded rod vertically. They feature a self-drilling tip that requires no pre-drilling and can easily be installed with a drill or screw gun.
Specifications
Specifications
L. H. Dottie - SSM38SR - Specifications
| Install Tool | UNIB |
|---|---|
| Anchor Type | Rod Hanger |
| Nut Type | Retainer |
| Point Style | #3 |
| Thread Type | UNC |
| Screw Size | 1/4''-20 x 1-1/2'' |
| Rod Size | 3/8'' |
| Head Diameter | 5/8'' |
| Shank Length | 1-1/2'' |
| Thread Per Inch | 20 |
| Thread Pitch\Thread Per Inch 1/4''-20 | 1/4''-20 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| RoHS Compliant | Yes |
L. H. Dottie - SSM38SR - Package Information
| Standard Qty | 100 |
|---|---|
| Master Qty | 500 |
| Price Per | 100 |
| Package Length | 8.5 |
| Package Width | 5.9 |
| Package Height | 3.8 |
| Net Weight | 0.08 |
| Package Weight | 7.7 |
| Self Drilling Range | 0.188'' to 0.520'' |
| Special Features | Self Drilling Tip, No Pre-Drill Required, One Piece Design, Low Torque to Install |
| Self Drilling Range | 0.188'' to 0.520'' |
