Brand: L. H. Dottie | SKU: 10356200

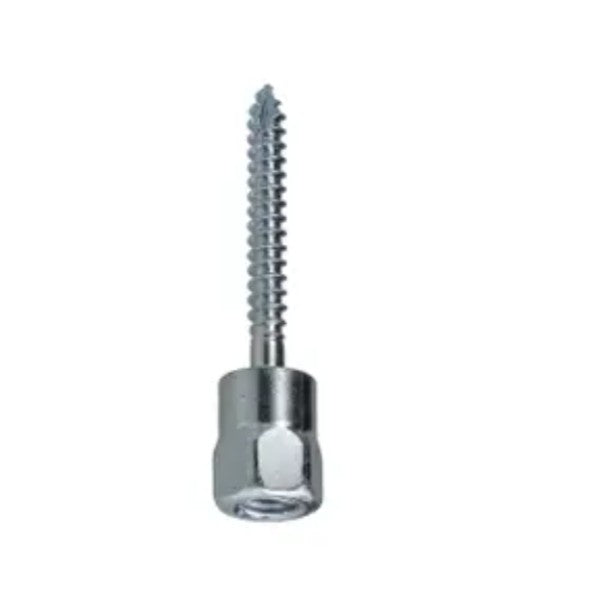

L. H. Dottie SSW12B | 1/2''-13 Wood Bottom Mount Rod Hanger

$459.49

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

L. H. Dottie SSW12B | 1/2''-13 Wood Bottom Mount Rod Hanger

Wood Rod Hangers are carbon steel fasteners used in overhead applications where threaded rod is intended to be suspended. They are manufactured with a type-17 tip to provide easy installation in wood frame columns and beams. Suitable applications for use are electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment.

Specifications

L. H. Dottie - SSW12B - Specifications

Install Tool	UNIB
Anchor Type	Rod Hanger
Point Style	Type 17
Thread Type	AB
Screw Size	5/16'' x 2-1/2''
Rod Size	1/2''
Head Diameter	5/8''
Shank Length	2-1/2''
Thread Per Inch	16
Thread Pitch\Thread Per Inch	3/8''-16
Material Carbon Steel	Carbon Steel
Finish	Zinc Plated
Mount Style	Bottom
RoHS Compliant	Yes

L. H. Dottie - SSW12B - Package Information

Standard Qty	100
Master Qty	300
Price Per	100
Package Length	8.5
Package Width	5.8
Package Height	3.9
Net Weight	0.08
Package Weight	8.45
Pre-Drill Size	1/8''
Applications	Wood Frame Columns and Beams
Special Features	No Pre-Drill Required, Type 17 Gimlet Point For Quick Installation, Single Piece Design
