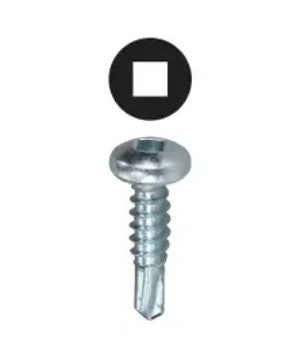

L. H. Dottie TEKDDT1034 | 3/4'' Square Drive Pan Head Self ...
Description
Description
Self-Drilling Screws are manufactured from cold-heading steel and feature a #3 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C1513 cover the material and performance requirements for steel self-drilling screws.
Specifications
Specifications
L H Dottie - TEKDDT1034 - Specifications
| Manufacturer Part Number | TEKDDT1034 |
|---|---|
| Brand | L. H. Dottie |
| Item Description | 3/4'' Square Drive Pan Head Self Drilling Screw |
| Type | Self Drilling Screw |
| Drive Type | Square |
| Head Type | Pan |
| Thread Type | BSD |
| Point Type | #3 |
| Size | #10 x 3/4'' |
| Dia./Thread Size | #10 |
| Head Diameter | 0.373'' to 0.357'' |
| Length (in) | 3/4'' |
| Head Width | 0.373'' to 0.357'' |
