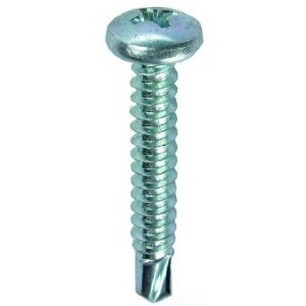

L. H. Dottie TEKPH10112 | 10 x 1-1/2'' Phillips Pan Head Se...
Description
Description
Self-Drilling Screws are manufactured from cold-heading steel and feature a 2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.
L. H. Dottie - TEKPH10112 - Features
- Self Drilling Screw, Pan Head, Phillips, 10 by 1-1/2-Inch Length, Zinc Plated, 100-Pack.
- Self drilling
- Pan head
- Phillips
- Zinc plated steel
- Invincibox up to 2-Inch length
Specifications
Specifications
L. H. Dottie - TEKPH10112 - Specifications
| UNSPSC Code | 31160000 |
|---|
L. H. Dottie - TEKPH10112 - Physical Characteristics
| Type | Self Drilling Screw |
|---|---|
| Drive Type | Phillips |
| Head Type | Pan |
| Thread Type | BSD |
| Point Type | #3 |
| Size | #10 x 1-1/2'' |
| Dia./Thread Size | #10 |
| Head Diameter | 0.373'' - 0.357'' |
| Length (in) | 1-1/2'' |
| Head Height | 0.133'' - 0.122'' |
| Thread Pitch/Thread Per Inch | 16 |
| Bit Size | #2 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
L. H. Dottie - TEKPH10112 - Package Information
| Standard Qty | 100 |
|---|---|
| Sleeve Qty | 500 |
| Master Qty | 3000 |
| Price Per | 100 |
| Package Length | 2.18 |
| Package Width | 2.92 |
| Package Height | 4.31 |
| Package Weight | 1.05 |
| Net Weight | 0.01 |
L. H. Dottie - TEKPH10112 - Performance Data
| Rockwell Hardness | HRC 32 - 40 |
|---|---|
| Special Features | Drill, Taps and Fastens in One Operation |
| Applications | Metal to Metal |
L. H. Dottie - TEKPH10112 - Certifications
| RoHS Compliant | Yes |
|---|---|
| Meets/Exceeds | IFI-113 |
