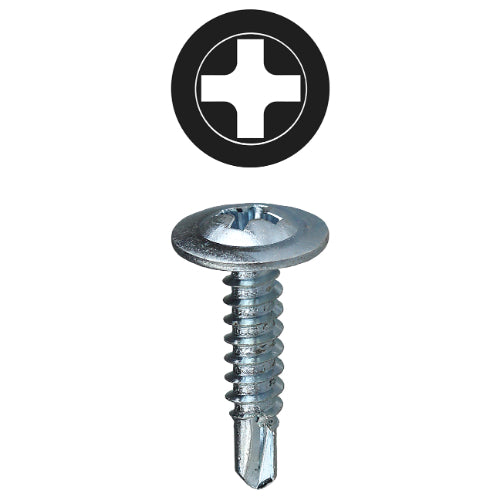

L. H. Dottie TEKWT812 | 8 x 1/2'' Phillips Wafer Head Self Drilling Screw (Tuff Pack)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
L. H. Dottie TEKWT812 | 8 x 1/2'' Phillips Wafer Head Self ...
Description
Description
Self-Drilling Screws are manufactured from cold-heading steel and feature a 2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.
Specifications
Specifications
L. H. Dottie - TEKWT812 - Specifications
| Hydrogen Embrittlement | Unknown |
|---|---|
| Metric/Inch | Unknown |
| UNSPSC Code | 31161500 |
L. H. Dottie - TEKWT812 - Physical Characteristics
| Type | Self Drilling Screw |
|---|---|
| Drive Type | Phillips |
| Head Type | Wafer |
| Thread Type | DWDS |
| Point Type | #2 |
| Size | #8 x 1/2'' |
| Dia./Thread Size | #8 |
| Head Diameter | 0.44'' - 0.42'' |
| Length (in) | 1/2'' |
| Head Height | 0.098'' - 0.075'' |
| Thread Pitch/Thread Per Inch | 18 |
| Bit Size | #2 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
L. H. Dottie - TEKWT812 - Package Information
| Standard Qty | 500 |
|---|---|
| Master Qty | 3000 |
| Price Per | 100 |
| Package Length | 3.7 |
| Package Width | 3.6 |
| Package Height | 3.4 |
| Package Weight | 1.77 |
| Net Weight | 0 |
L. H. Dottie - TEKWT812 - Performance Data
| Rockwell Hardness | HRC 32 - 40 |
|---|---|
| Special Features | Drill, Taps and Fastens in One Operation |
| Applications | Metal to Metal |
L. H. Dottie - TEKWT812 - Certifications
| RoHS Compliant | Yes |
|---|---|
| Meets/Exceeds | IFI-113 |
