L. H. Dottie TMC632114 | 6-32 x 1-1/4'' Phillips/Slotted Truss Head Machine Screw
Regular price
$8.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
L. H. Dottie TMC632114 | 6-32 x 1-1/4'' Phillips/Slotted Tr...
Regular price
$8.44
Unit price
Description
Description

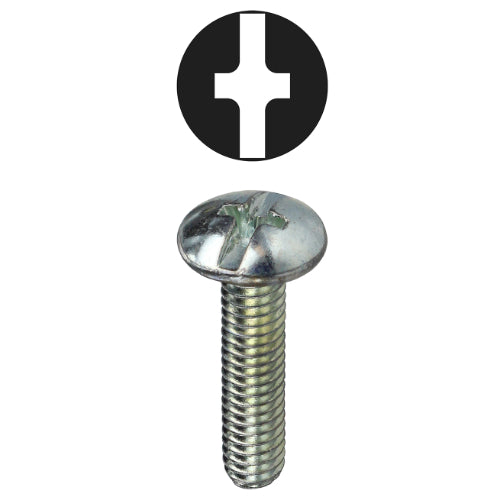

L. H. Dottie TMC632114 | 6-32 x 1-1/4'' Phillips/Slotted Truss Head Machine Screw
Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with nuts to join two or more assemblies together. Typical applications for machine screws include fastening components of tools, appliances, machines, and electronic devices. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Machine Screws.
L. H. Dottie - TMC632114 - Features
- The L.H. Dottie TMC632114 Machine Screw has a truss head and a Phillips/slotted drive. Size: #6-32 TPI by 1-1/4-inch length. Made of steel. Zinc plated finish. This listing is for a standard package containing 100 units. Packed in Invincibox.
- Machine screws
- Truss head drive
- Phillips/Slotted drive
- Zinc plated steel
- Packed in Invincibox
- Part Number: L.H. DOTTIE TMC632114
- Item Weight: 6.4 ounces
- Product Dimensions: 1.2 x 0.1 x 0.1 inches
- Item model number: TMC632114
- Size: #6-32
- Color: zinc
- Finish: Zinc Plated
- Material: metal
Specifications
Specifications
L. H. Dottie - TMC632114 - Specifications
| UNSPSC Code | 31160000 |
|---|
L. H. Dottie - TMC632114 - Physical Characteristics
| Type | Machine Screw |
|---|---|
| Drive Type | Slotted/Phillips |
| Head Type | Truss |
| Thread Type | UNC |
| Size | #6-32 x 1-1/4'' |
| Dia./Thread Size | #6-32 |
| Head Diameter | 0.321'' - 0.303'' |
| Length (in) | 1-1/4'' |
| Head Height | 0.086'' - 0.074'' |
| Thread Pitch/Thread Per Inch | 32 |
| Driver Size | #2 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
L. H. Dottie - TMC632114 - Package Information
| Standard Qty | 100 |
|---|---|
| Sleeve Qty | 500 |
| Master Qty | 4000 |
| Price Per | 100 |
| Package Length | 1.54 |
| Package Width | 2.92 |
| Package Height | 3.66 |
| Package Weight | 0.55 |
| Net Weight | 0.01 |
L. H. Dottie - TMC632114 - Performance Data
| Rockwell Hardness | HRB 100 - 70 |
|---|---|
| Special Features | Invincibox, Zinc Plated, Low Profile Head |
| Applications | General Purpose |
L. H. Dottie - TMC632114 - Certifications
| RoHS Compliant | Yes |
|---|---|
| Meets/Exceeds | ASME B18.6.3 |
