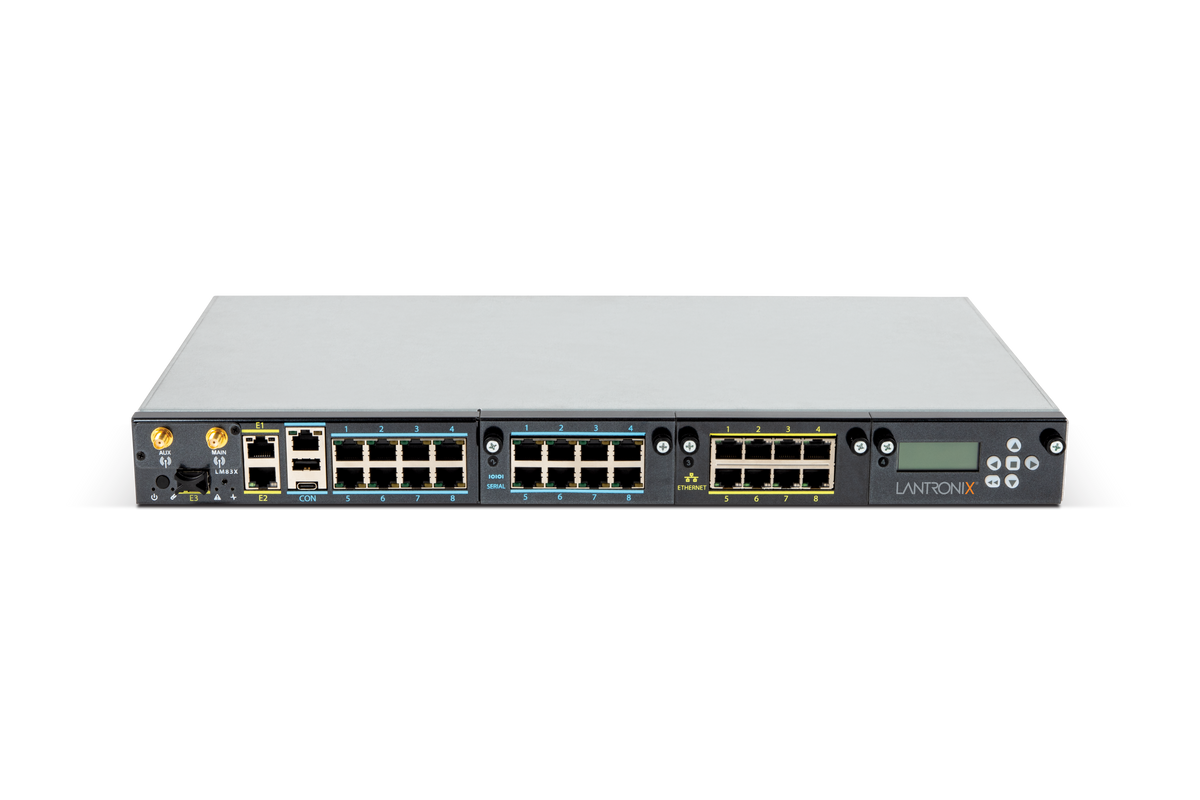

Lantronix 83X-24S-114-NAA | LM83X Local Manager, 24 Serial Ports, L...
Description
Description
The Lantronix LM-Series are the only state-aware console servers—an expert system using rules-based AI to recover and mitigate network infrastructure securely, reliably, and automatically.,Designed from the ground up as a modular platform able to act independently from the network to remotely monitor, manage and control up to 104 devices over a serial console connection, the LM83X is the fifth generation Local Manager.,Configurable to manage 8-104 devices directly over RS-232 connections, the LM-Series is also capable of managing virtual environments and SD-WAN deployments to increase resiliency. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure, automation of day-to-day management and the go-to source of information and response during network emergencies.
The Lantronix LM-Series are the only state-aware console servers—an expert system using rules-based AI to recover and mitigate network infrastructure securely, reliably, and automatically.
Designed from the ground up as a modular platform able to act independently from the network to remotely monitor, manage and control up to 104 devices over a serial console connection, the LM83X is the fifth generation Local Manager.
Configurable to manage 8-104 devices directly over RS-232 connections, the LM-Series is also capable of managing virtual environments and SD-WAN deployments to increase resiliency. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure, automation of day-to-day management and the go-to source of information and response during network emergencies.
Overview
- The LM83X is a scalable and robust LM-Series console server with dual power inputs for enterprises and data centers. Connectivity options include dual Ethernet management, an SFP port, modular out-of-band modem options and three expansion bays for serial and dedicated Ethernet connections.
- The modular architecture lets you deploy exactly what’s needed at each location and expand as your network infrastructure grows. Cellular connectivity for out-of-band is a popular option, and the Lantronix LM-Series has several options from high-speed LTE to high signal penetration CatM1 modems providing reliable links from typically low-signal locations. For some of the most remote locations on earth, there is even out-of-band over an Iridium LEO satellite link via the Lantronix LEO-I antenna which is commonly deployed in Energy and DoD locations.
- LM83X with the Lantronix Control Center
- You can access the LM83X and connected devices directly through the CLI or utilize the Lantronix Control Center for a single pane of glass to manage LM-Series devices and automate management of connected devices.
- Accessing the advanced features of the LM-Series platform through the Control Center opens new levels of network management automation from real-time data to manage, configure and control network devices and servers. Define custom automated management actions without scripting and apply them across your deployment securely. The Control Center also provides detailed compliance reporting and integration with other centralized tools in the NOC.
Technical Specifications
- System
- Management interfaces: Supports up to 104 devices via serial (RS-232); Two 10/100/1000 BaseT Ethernet interfaces (with failover support) and one RS-232 console port; One SFP port
- On-board storage: 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption
- Peripheral connectivity: One USB-A port, one USB-C port
- One option slot (RS232; V.92, cellular, and fiber cards available)
- Three expansion slots for 8-Port and 16-Port Serial cards; 8-Port Ethernet card (10/100/1000 Mbps; LCD keypad
- Dimensions and Weight
- Height, Width and Depth: 43.2 mm
- (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU)
- Weight: 3.72 kg (8.2 lbs.)
- What’s in the Box: LM83X Accessory Kit
- 2 ea Power Cords
- 2 ea Rack Mount Ears
- 4 ea Mounting Screws
- 1 ea USB-A to USB-C cable
- 1 ea Connection Instruction Sheet
- 1 ea Warranty Booklet
- Operating Environment
- Power Supply: Redundant internal universal power (100-240 VAC) 50/60 Hz, 60 W (204.7 BTU)
- Operating: 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing
- Non-operating: -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing
- Regulatory
- Emissions: FCC class A sub part B
- Safety: TUV RoHS compliant
Specifications
Specifications
Lantronix - 83X-24S-114-NAA - Product Categories
- Networking
- Networking
- Switches
Lantronix - 83X-24S-114-NAA - Overview
- The LM83X is a scalable and robust LM-Series console server with dual power inputs for enterprises and data centers. Connectivity options include dual Ethernet management, an SFP port, modular out-of-band modem options and three expansion bays for serial and dedicated Ethernet connections.
- The modular architecture lets you deploy exactly what’s needed at each location and expand as your network infrastructure grows. Cellular connectivity for out-of-band is a popular option, and the Lantronix LM-Series has several options from high-speed LTE to high signal penetration CatM1 modems providing reliable links from typically low-signal locations. For some of the most remote locations on earth, there is even out-of-band over an Iridium LEO satellite link via the Lantronix LEO-I antenna which is commonly deployed in Energy and DoD locations.
- LM83X with the Lantronix Control Center
- You can access the LM83X and connected devices directly through the CLI or utilize the Lantronix Control Center for a single pane of glass to manage LM-Series devices and automate management of connected devices.
- Accessing the advanced features of the LM-Series platform through the Control Center opens new levels of network management automation from real-time data to manage, configure and control network devices and servers. Define custom automated management actions without scripting and apply them across your deployment securely. The Control Center also provides detailed compliance reporting and integration with other centralized tools in the NOC.
Lantronix - 83X-24S-114-NAA - Technical Specifications
- System
- Management interfaces: Supports up to 104 devices via serial (RS-232); Two 10/100/1000 BaseT Ethernet interfaces (with failover support) and one RS-232 console port; One SFP port
- On-board storage: 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption
- Peripheral connectivity: One USB-A port, one USB-C port
- One option slot (RS232; V.92, cellular, and fiber cards available)
- Three expansion slots for 8-Port and 16-Port Serial cards; 8-Port Ethernet card (10/100/1000 Mbps; LCD keypad
- Dimensions and Weight
- Height, Width and Depth: 43.2 mm
- (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU)
- Weight: 3.72 kg (8.2 lbs.)
- What’s in the Box: LM83X Accessory Kit
- 2 ea Power Cords
- 2 ea Rack Mount Ears
- 4 ea Mounting Screws
- 1 ea USB-A to USB-C cable
- 1 ea Connection Instruction Sheet
- 1 ea Warranty Booklet
- Operating Environment
- Power Supply: Redundant internal universal power (100-240 VAC) 50/60 Hz, 60 W (204.7 BTU)
- Operating: 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing
- Non-operating: -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing
- Regulatory
- Emissions: FCC class A sub part B
- Safety: TUV RoHS compliant
Lantronix - 83X-24S-114-NAA - Specifications
| Brand Name | Lantronix |
|---|---|
| Item Description | LM83X Local Manager, 24 Serial Ports, LCD Module, 3 Ethernet Ports, Includes LMS |
| UNSPSC Code | 43222612 |
| Manufacturer Part Number | 83X-24S-114-NAA |
