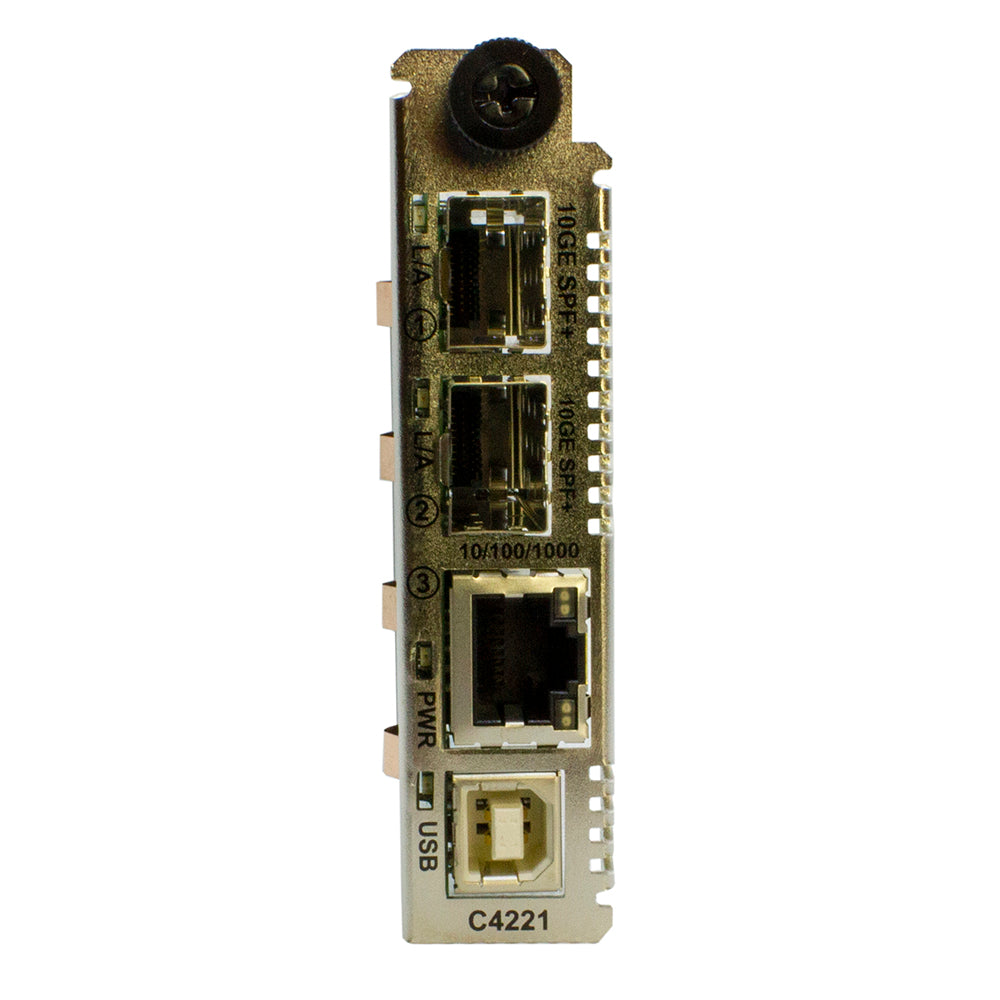

Lantronix C4221-4848 | ION 10 Gigabit Ethernet Remotely Managed Media and Rate Converter NID

$2,673.13

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The ION C4221 Network Interface Device (NID) is a remotely managed product that offers management via the ION Management Module for secure delivery of Ethernet services for business and mobile backhaul applications. The C4221 is a 10 Gig product with advanced features like remote management of the local and remote cards, VLAN, jumbo frame support, and bandwidth allocation of 10 Gig interfaces. The C4221 offers the additional functionality of a rate converter by also offering a 10/100/1000Base-T RJ-45 port allowing 10/100/1000 based devices to connect to 10 Gigabit Ethernet fiber backbone.

Key Features

Full non-blocking switching on all interfaces
(2) 10 Gig SFP+ ports supporting 100FX, 1000X, SGMII, and 10 Gig
SFP ports individually support same or different speeds simultaneously
(1) 10/100/1000Base-T port
Local and remote units can be fully managed by the ION platform
IPv4 IP TOS, DiffServ and IPv6 traffic class QoS classification via IONMM
Bandwidth Allocation, per port, from 1 Gig to 10 Gig in 1 Gig increments
Basic VLAN support
Jumbo frame support, up to 10,240 bytes
16K maximum MAC Addresses
8Mbit shared buffer memory
Remote firmware upgrades
Auto-MDI/MDIX
Auto-Negotiation
Can be used in the ION 19-Slot, 6-Slot, and 1-Slot chassis
Management provided by IONMM
DHCP client
Telnet
Command Line Interface (CLI)
Web management
SNMP v1, v2c, and v3
Management VLAN

Features Coming Soon

SFP+ DMI monitoring
Fully compliant with OAM from IEEE 802.3ah – 2004 standard
Loopback
IEEE 802.1p QoS
Transparent Link Pass Through
Utilizes USB Type B connector for basic setup
Full IEEE 802.1Q VLAN and double VLAN tagging
RMON/Statistics counters per port
Pause
IP-addressable management support
Compliant with IEEE 802.1X

Specifications

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae
Ports	(1) Copper RJ-45 10/100/1000Base-T port (2) Fiber 10 Gig SFP+ ports supporting 100FX, 1000X, SGMII, and 10 Gig USB port for basic setup
Status LEDs	Power SFP+ Link/Activity for each port TP – Left LED: Duplex, TP Link/Activity TP – Right LED: TP Speed USB – Activity
Switches/Jumpers	One jumper to load factory defaults
Dimensions	Width: 0.86" [21.85 mm] Depth: 6.5” [165 mm] Height: 3.4” [86.36 mm]
Power Input	ION Chassis Backplane
Power Consumption	6.24 Watts, 520mA@ 12VDC
Environment	Operating: 0°C to 50°C Storage: -40°C to 85°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft.
Weight	1 lb. [0.45 kg]
MTBF	Greater than 250,000 Hours (MIL-HDBK-217F) Greater than 687,500 Hours (Bellcore)
Certifications	Safety: CE Mark; Emissions: EN55022 Class A; Immunity: EN55024
Warranty	10 Years
Device	MEDIA CONVERTERS
Port 1 Device Technology	10000BASE-T
UNSPSC Code	43201553
