Brand: Lantronix
|
SKU:
484243

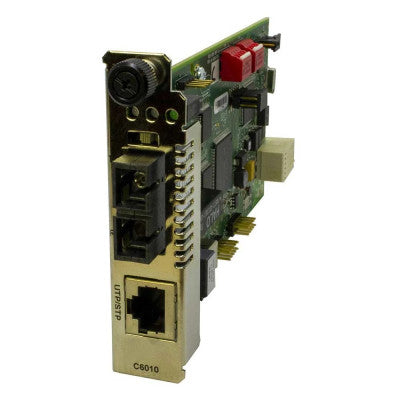

Lantronix C6010-1013 | Twisted Pair (rj48) To 1300 Nm, Multimode, Sc, 2 Km
Regular price
$801.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix C6010-1013 | Twisted Pair (rj48) To 1300 Nm, Multimode, S...
Regular price
$801.96
Unit price
Description
Description
The ION C6010 is a managed media converter that offers a solution for extending T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These T1/E1 converters must be used in pairs, one on each end of the fiber link. Typical installations include a chassis card installed in a centrally located managed ION chassis, linked over fiber to a S6010 stand-alone converter at the remote location. The T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
Key Features
- Remote in-band management
- Local or Remote Loopbacks – Copper or Fiber
- Switch selectable for T1 or E1
- Remote firmware upgrade
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote stand-alone can be managed by local peer
- Extend PRI over fiber
- Must be used in pairs
Specifications
Specifications
Specifications
| Standards | ANSI T1.102 T1.402 T1.408 ITU I.431 G.703 G.736 G.775 G.823 ETSI 300-166 ETSI 300-233 TBR12/12 |
|---|---|
| Connectors | Copper Connectors RJ-48, BNC Fiber Connectors SFP: LC connector Uses standard 100Base-X/OC-3 SFP Fixed Optics: ST or SC connector |
| Data Rate | T1 = 1.544 Mbit/s, E1 = 2.048 Mbit/s |
| Status LEDs | Power, Signal Detect Copper, Signal Detect Fiber |
| Dimensions | Width: 0.86” [22 mm] Depth: 6.5” [165 mm] Height: 3.4” [86 mm] |
| Power Consumption | 2.6 Watts |
| Environment | Environment specs are dependent on the chassis chosen Operating: 0°C to 50°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 1 lb. [0.45 kg] |
| MTBF | Greater than 250,000 hours (MIL-HDBD-217F) Greater than 687,000 hours (Bellcore) |
| Certifications | CISPR/EN55022 Class A, FCC Class A, CE Mark |
| Warranty | Lifetime |
