Brand: Lantronix | SKU: 554519

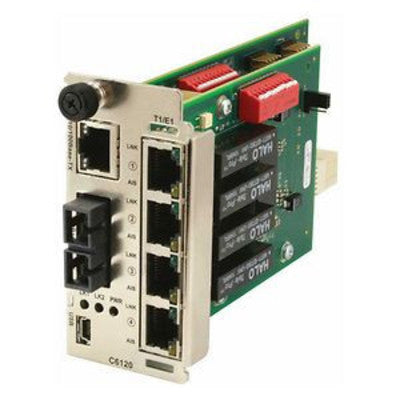

Lantronix C6120-1040 | Ion T1/e1/j1 Network Interface Device Module, 1 Sfp Port (empty) To (4) Rj-48 [1.5 Km/0.9 Mi.] Plus 10/100base-tx (rj-45) [100m]

$1,189.40

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The ION C6120 is a managed T1/E1/J1 mux media converter module that provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The C6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

Key Features

(4) RJ-48 copper interfaces
(1) fiber interface (fixed or SFP)
(1) RJ-45 10/100Mbps Ethernet port
Auto-MDI/MDIX
Pause (Flow Control on Ethernet port)
Loopback via test set
Local and remote loopbacks
LEDs for device status and troubleshooting
Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
Access to complete status and configuration on local and remote device
Remote firmware upgrade
Remote management
Must be used in pairs

Specifications

Standards	ANSI T1.102 T1.403 T1.408 ITU I.431 G.703 G.736 G.775 G.823 ETSI 300-166 ETSI 300-233 TBR 12/13 AT&T Pub 62411 IEEE 802.3-2008
Data Rate	Copper ports (RJ-48): T1(J1) = 1.544Mb/s, E1 = 2.048Mb/s Ethernet port (RJ-45): 10/100Mbps SFP port(s) (empty): 100Base-X/OC-3
Switch	Numerous switch settings for line coding, line build out, loopback and AIS
Status LEDs	Power, Port Status, Loopback and AIS
Dimensions	Width: 1.72” [44 mm] Depth: 6.5” [165 mm] Height: 3.4” [86 mm]
Power Consumption	6 Watts (max: dual fiber model) 5.5 Watts (max: single fiber model)
Environment	Environment specs are dependent on the chassis chosen Operating: 0°C to 50°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft.
Weight	1 lb. [0.45 kg]
MTBF	687,500 hours (Bellcore)
Certifications	EN55022 Class A, EN55024, CE mark
Warranty	Lifetime
