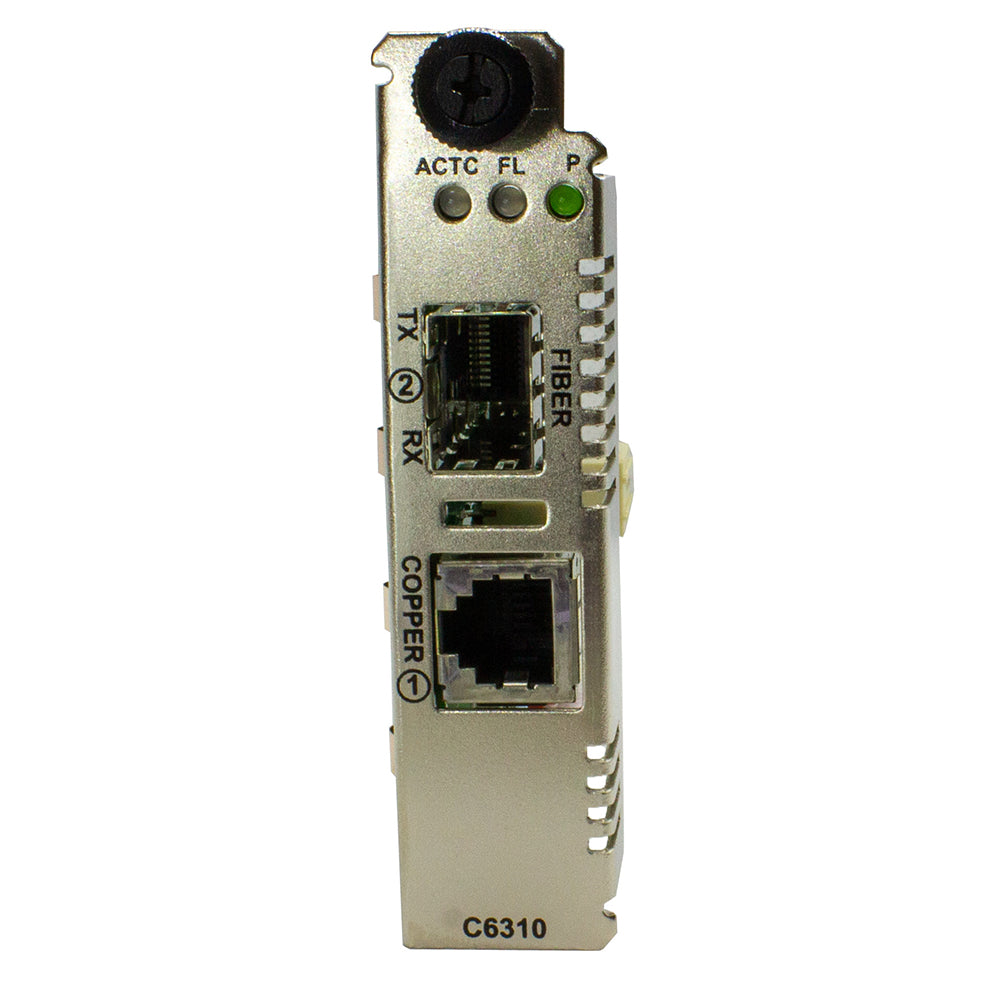

ION POTS Media Converter
The ION C6310-3340 is a chassis-based media converter module that provides an interface between a twisted pair RJ-11 port and a fiber port, allowing users to connect central-officevoice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. The firstunit connects to a telephone line or PBX and is configured to act as a telephone (FXO Mode) and has the ability to detect ringing voltages. The second unit is the reciprocal unit and isconfigured to have the ability to act as a Central Office and connects to a telephone device (FXS Mode).
Together, the modules allow legacy analog phone lines to be extended over fiber for both permanent installations as well as temporary job-site installations.
Lantronix - C6310-3340 - Features
- Audio transmission of voice grade signals
- Supports ringing at distant end
- Supports Caller ID
- Configurable worldwide country formats
- Must be deployed in pairs
- – ION chassis card and stand-alone unit
- – ION chassis card and ION chassis card
- – Stand-alone unit and stand-alone unit
- Single product configurable to either FXO mode or FXS mode
- Automatic Ring Down supported when both converters are configured to FXS Mode
- SFP based product
- – Uses Gigabit Ethernet SFP Modules
- – Lantronix offers a wide variety of SFP modules to support multimode or singlemode fiber, as well as dual or single strand fiber installations
- SNMP Management supported when installed in a managed ION chassis
- Supports remote management of paired unit, in-band, over the fiber
- Electrical interface is provided through an RJ-11 female connector
- Field upgradeable firmware
- Only supports analog POTS lines
- Compatible with traditional telephone modems
Specifications
Specifications
Lantronix - C6310-3340 - Product Categories
- Networking
- Networking
- Repeater / Transceiver / Media Converter
Lantronix - C6310-3340 - Overview
- Applications
- Provides voice grade service to extend useful life of legacy analog telecom equipment
- Acts as a telephone and connects to a telephone line or PBX
- Acts as a central office and connects to a telephone device
- For use in permanent or temporary job-site installations
Lantronix - C6310-3340 - Technical Specifications
- Standards
- FCC Part 68
- ETSI ES 203-021 (TBR21)
- ISED CS-03
- Analog Port
- Connector: RJ11
- FXS Mode
- Impedance: 600 ohms
- REN: 1.0
- Ring Cadence: 25 Hz
- FXO Mode
- Impedance: 600 ohms
- Battery Source: 48 VDC +/- 5V
- Ringing Supply: 90Vp-p
- Ring Frequency: 16-65 Hz
- Dip Switches
- SW1 Up = FXO Down = FXS
- SW2 Up = Normal Down = FXS Reversed
- SW3 Up = U-Law Down = A-Law
- SW4 not used
- SW5 – SW8 Country Code Select
- Status LEDs
- Pwr: On = power is on
- FL: On = fiber link is up
- ACTC: On = Off-Hook, Blink = Ringing, Off = On-Hook
- Dimensions
- Width: 0.86” [22 mm]
- Depth: 6.5” [165 mm]
- Height:?3.4” [86 mm]
- Power Consumption
- 2.0 Watts without the SFP
- Environment
- Operating: 0°C to 50°C
- Storage: -40°C to +85°C
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 – 10,000 ft.
- Weight
- 1 lb. [0.45 kg]
- Compliance
- Emissions: EN55032 Class A, FCC Part 15 Class A
- Immunity: EN55024
- Safety: CE Mark
- Warranty
- Lifetime
- https://www.alldataresource.com/assets/Lantronix/Lantronix-C6310-3340-Product-Brief.pdf
Lantronix - C6310-3340 - Specifications
| Brand Name | Lantronix |
|---|---|
| Item Description | Media Converter, POTS Copper To Fiber Media Converter, ION SIC, SFP |
| UNSPSC Code | 55101515 |
| Manufacturer Part Number | C6310-3340 |
