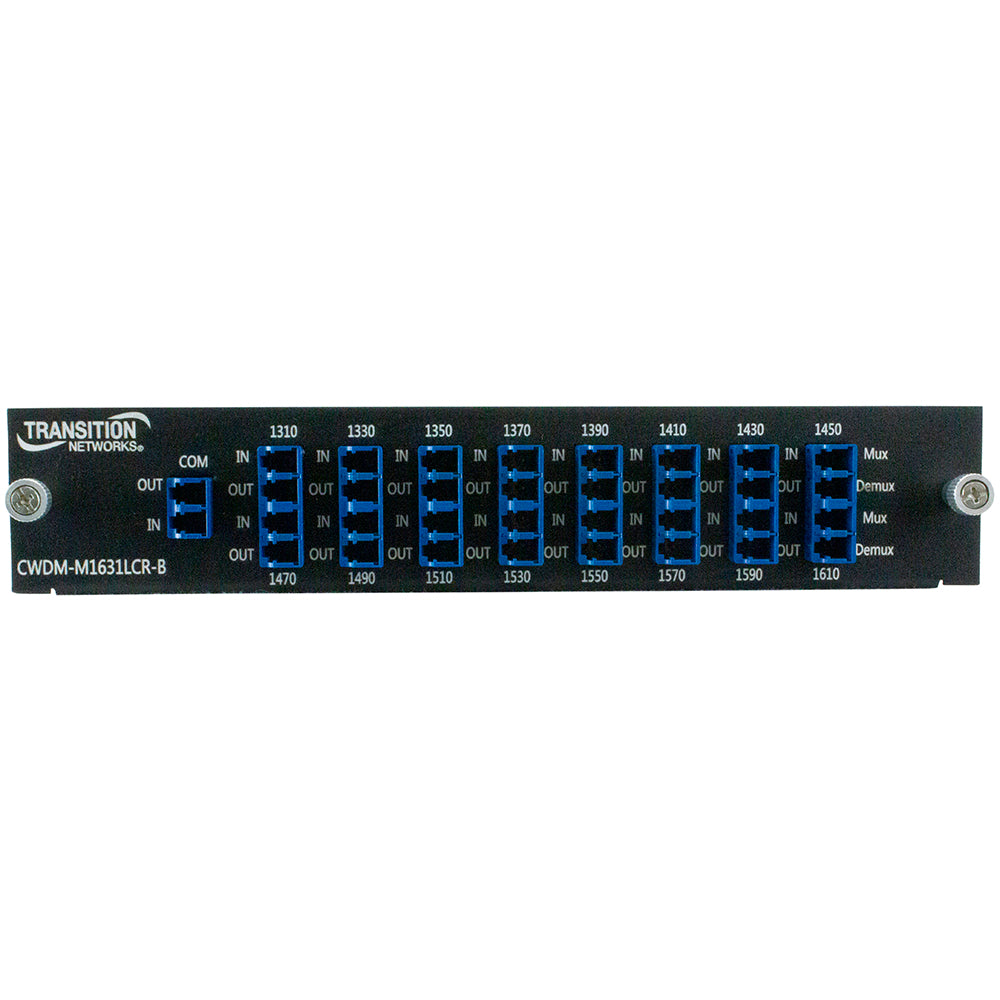

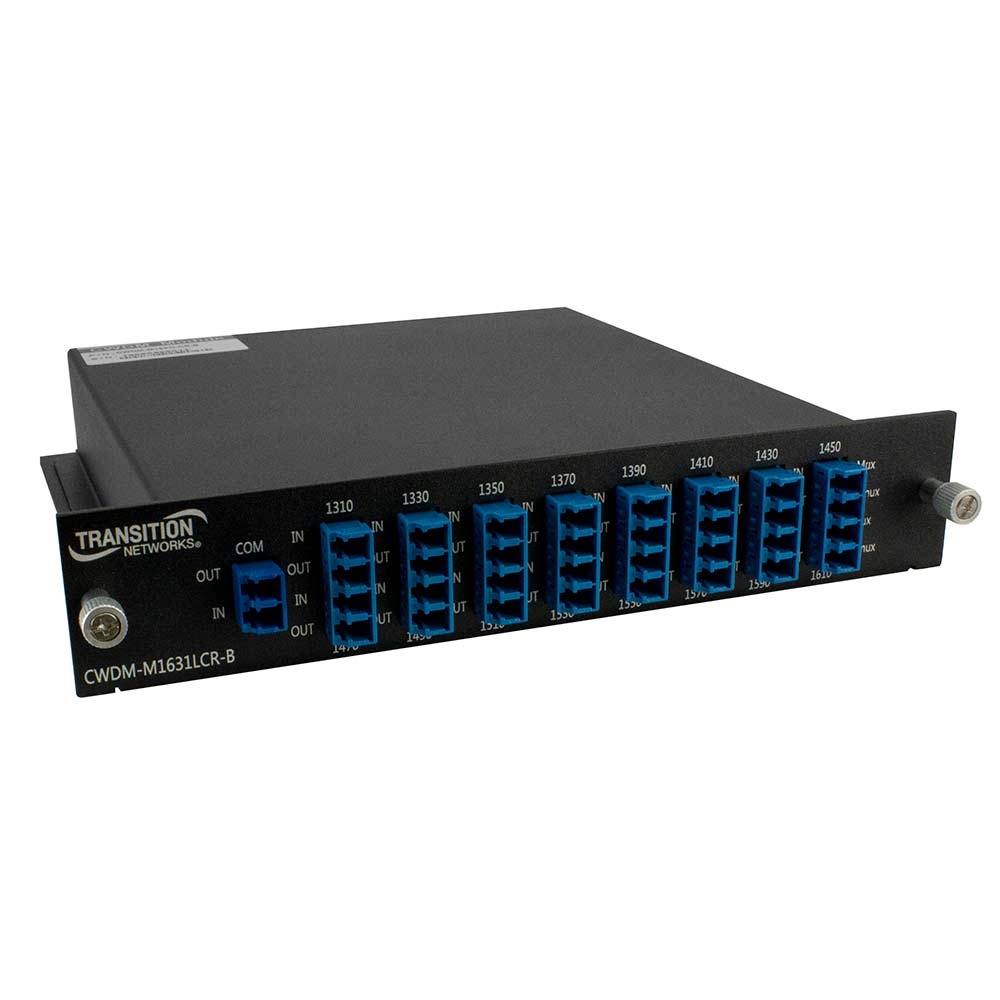

Lantronix CWDM-M1631LCR-B | Coarse Wavelength Division Multiplexing (CWDM)
Regular price
$4,089.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix CWDM-M1631LCR-B | Coarse Wavelength Division Multiplexing...
Regular price
$4,089.31
Unit price
Description
Description
Lantronix CWDM products uses a passive technology that allows for any protocol to be transported over the fiber link, as long as it is at a specific wavelength. Lantronix ’ CWDM Mux/Demux and Add/Drop Mux can provide a simple and affordable method to maximize existing fiber capacity with little or no increased cost.
Key Features
- Increase bandwidth on existing fiber infrastructure
- Alleviate fiber exhaustion
- Transmit multiple protocols over an existing duplex fiber link by
- combining the fiber outputs of multiple media converters
- Provide scalable bandwidth of up to 10 Gbps per channel over existing fiber links
- Plug-and-Play, no configuration of CWDM components
- Use existing standard optical ports on switches and routers
- Utilize Optical Line Converter as transponder
- 1 RU rack mountable chassis to hold 2 CWDM modules
Specifications
Specifications
Specifications
| Channel Wavelength | ITU & ITU+1 (nm) |
|---|---|
| Center Wavelength Accuracy | +-0.5 (nm) |
| Channel Spacing | 20 (nm) |
| Channel Passband bandwidth (nm) | +-6.5 (nm) |
| Insertion Loss with connector | <= 3.2dB |
| Channel Ripple | 0.3dB |
| Isolation Adjacent | > 30dB |
| Non-Adjacent | > 40dB |
| Insertion Loss Temperature Sensitivity | <= 0.005dB/°C |
| Wavelength Temperature Shifting | <0.002 nm/°C |
| Polarization Dependent Loss | <0.1dB |
| Polarization Mode Dispersion | <0.1 PS |
| Type of Device | MULTIPLEXER |
| UNSPSC Code | 55101515 |
